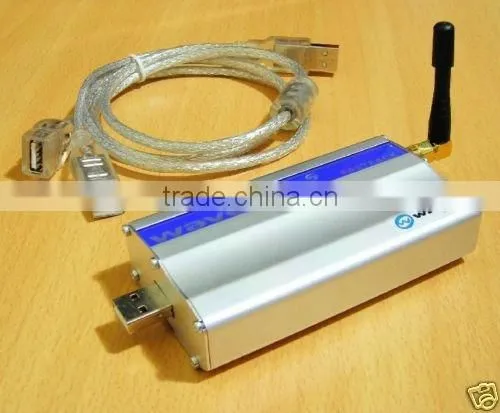

USB GSM MODEM Q2406B

USB GSM MODEM Q2406B thumbnail-1
USB GSM MODEM Q2406B photo-1
US$ 1 - 100 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
shanhai
Model Number:
Q2406B
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Shanhai Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOBshenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name shanhai
Model Number Q2406B
Place of Origin Guangdong, China

Specifications

1.USB GSM MODEM Q2406B
2.Dual-ban(900/1800mhz)
3.With tcp/ip protocol stack
4.interface: USB

USB GSM MODEM Q2406B


Product Performance



Double frequency GPRS Q2406B modem

Its design and the development conforms to ETSI GSM the Phase2+ standard

Dual-band EGSM900/GSM1800

GPRS Class 10

Data, Voice, SMS and Fax

Full type approval(R&TTE)

Low power consumption:

Class 4   2W @ 900MHz

Class 1   1W @ 1800MHz





Specifications

Model

GPRS-2406R

Design

Industrial Design, Aluminium Casing

Based On

Based on WAVECOM Module Q2406B

Band

900/1800 MHz, in compliance with ETSI GSM Phase2 + Standard

Internet

Wireless Access to internet

TCP/IP stack

YES

AT Commands

Remote control GSM 07.07 & 07.05

Interface

DB-9 RS232 Serial Port

SIM Slot

3 Volt SIM Card slot

GPRS Class

GPRS Class 10

Enhanced Functions

GPRS link detection and redial (work with Microsoft dialup software) Support dialup control

Transmitting Speed

Maximum Transmitting Speed 115.2 Kbps

DTMF

Yes

Work

Send and Receive SMS, Data, FAX,E-mail Voice, MMS

SMS

Point-to-point MO and MT SMS cell broadcast Text and PDU mode

Antenna

Male SMA connector

Output Power

900MHz 2W (Class 4)

1800MHz 1W (Class 1)

Input Voltage

5V to 24 V DC

Input Current

1A to 2 A

Working Temp.

(-20C to +60C)

Store.temp.

(-25C to +70C)

Size

73*54.5*25.5mm







 USB GSM MODEM Q2406B



USB GSM MODEM Q2406BUSB GSM MODEM Q2406BUSB GSM MODEM Q2406BUSB GSM MODEM Q2406BUSB GSM MODEM Q2406B

USB GSM MODEM Q2406B
