Specifications
Sierra Wireless FXT0021.Air Interface GPRS, GSM
2.Frequency Bands 850/900/1800/1900 MHz
3.Approvals GCF, PTCRB, R&TTE,
Programmable Gateways and Modems for M2M AirLink™ Fastrack Xtend GPRS
AirLink™ Fastrack Xtend GPRS

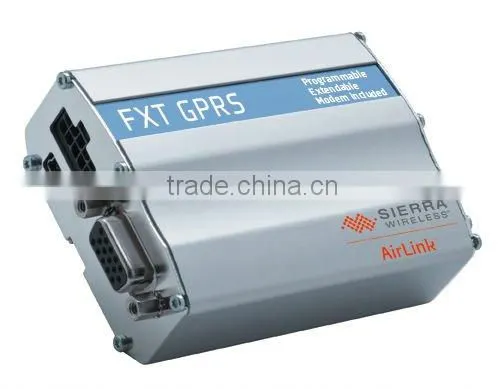

Sierra Wireless FXT GPRS
The Sierra Wireless AirLink™ Fastrack Xtend GPRS programmable gateway offers quad-band GPRS connectivity in a ruggedized, plug-and-play form factor.
It allows easy integration in a wide range of industrial equipment and can also be used as a standalone product.
It features an open-standard expansion card interface, enabling you to add additional IO connectivity or features like GPS, WiFi, Bluetooth, Zigbee and more.
Use Sierra Wireless expansion cards or develop your own. Available off-the-shelf expansion cards from Sierra Wireless include
Specifications
1.Air Interface GPRS, GSM
2.Frequency Bands 850/900/1800/1900 MHz
3.Approvals GCF, PTCRB, R&TTE, FCC, RTE
4.Alarm Power 400uA
5.Standby and Idle Power 2.5mA
6.GSM GPRS Max Power 400mA
7.CPU Processor Performance ARM946 / DSP
8.CPU Core Frequency Performance 104 MHz (26 MHz)
9.CPU User MIPS Available Performance 87 MIPS
10.CPU IO Voltage Performance 2.5-15V
11.CPU Analog Audio Performance 1 x speaker out - 1 x micro in
12.Codec HR, FR, EFR, AMR
13.Quality VDA2A
14.Echo Cancellation and Noise Reduction Yes (high)
15.DTMF Yes
16.UART 2 (1 on internal expansion connector)
17.USB 1
18.SPI 2 on internal expansion connector
19.I2C No
20.ADC 1 on internal extension connector
21.DAC 1 on internal extension connector
22.RTC Yes
23.Timers Yes
24.Interrupts Pins 1 on internal expansion connector
25.Flash LED Output Network
26.PWM Buzzer No
27.Keyboard Interface No
28.SIM Interface SIM socket (1,8V/3V)
29.Antenna Diversity No
30.Embedded SIM Yes
31.Operating Systems Linux, Windows
32.Device Management Yes
33.Drivers Mac OS X, Windows
34.Device Dimensions 89x 60 x 30mm
35.Operational Temperature -30 to +75
