Specifications
gprs modem1.new and original
2.with Q2406B module
3. in stock no lead time
4.hot selling , one year gurantee

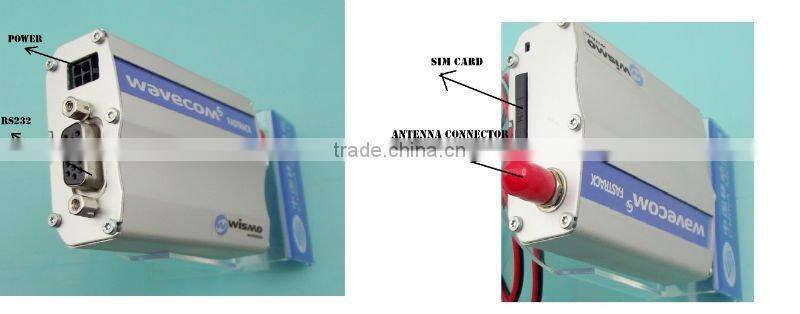

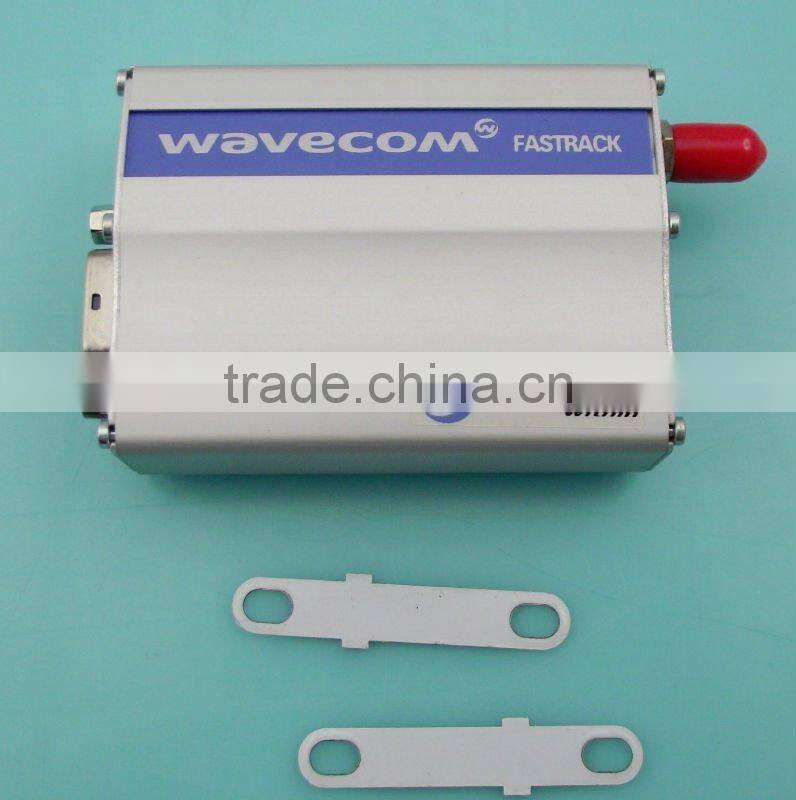

2014 new promotion wavecom fastrack M1206B M1203B gprs modem supplier from China
The FASTRACK M1206B is a GSM/GPRS Dual
Band modem (900/1800 MHz) Class 2
PRODUCT FEATURES
Dual Band GSM/GPRS modem
EGSM900/1800 MHz
Fully Type Approved
Fully compliant with ETSI GSM Phase 2+
specifications (Normal MS)
Output power:
Class 4 (2W @ 900 MHz)
Class 1 (1W @ 1800/1900 MHz)
Input voltage: 5V-32V
Input current:
·12mA in idle mode, 140mA in
communication GSM 900 @ 12V
·12mA in idle mode, 100mA in
communication GSM 1800 @ 12V
Temperature range:
·-20°C - +55°C operating
·-25°C - +70°C storage
Overall dimensions: 98 x 54 x 25mm
Weight: 130g
VOICE, GSM CIRCUIT
DATA/FAX, GPRS PACKET
DATA, SHORT MESSAGE
SERVICES
Voice features (GSM mode):
·Telephony
·Emergency calls
·Full Rate, Enhanced Full Rate and Half
Rate (FR/EFR/HR)
·Dual Tone Multi Frequency
Function (DTMF)
GSM circuit Data/Fax features:
·Data circuit asynchronous, transparent and non transparent up to 14,400 bits/s
·Automatic fax group 3 (Class 1 and Class 2)
·MNP2, V.42bis
GPRS packet Data features:
·GPRS Class 2
Coding Schemes: CS1 to CS4
Compliant with SMG31bis
Short Messages Services features
(GSM or GPRS mode):
·Text and PDU
·Point to point (MT/MO)
·Cell Broadcast
GSM SUPPLEMENTARY
SERVICES
·Call Forwarding
·Call Barring
·Multiparty
·Call Waiting and Call Hold
·Calling Line Identity
·Advice of Charge
·USSD
·Closed User Group
·Explicit Call Transfer
OTHER FEATURES
·ME+SIM phone book management
·Fixed Dialling Number
·SIM Toolkit Class 2
·SIM, network and service provider
locks
·Real Time Clock
·Alarm management
·Software upgrade through Xmodem
protocol
·UCS2 character set management
INTERFACES
·RS-232 and audio through mini sub-D
15-pin connector supporting:
• Remote control by AT commands
(GSM 07.07 and 07.05)
• Baud rate from 300 to 115,200 bits/s
• Autobauding (300 to 38,400 bits/s)
·Power supply through micro-FIT
4-pin connector
·SMA antenna connector
·Sliding SIM holder
(3V/5V SIM interface)
DELIVERABLES
·User guide
·Power supply cable
·Fixing equipment
Update Date:2011-10-20 06:44:08
