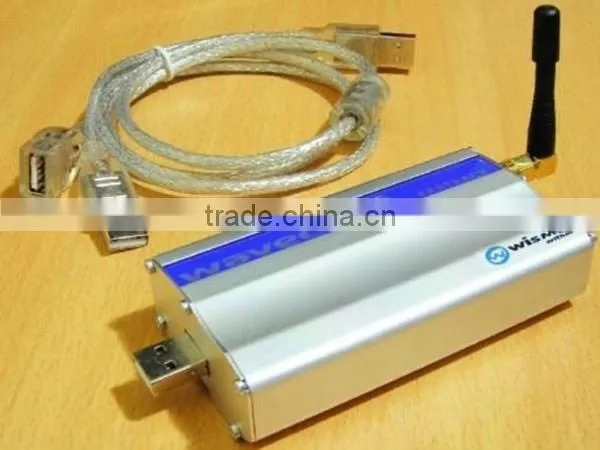

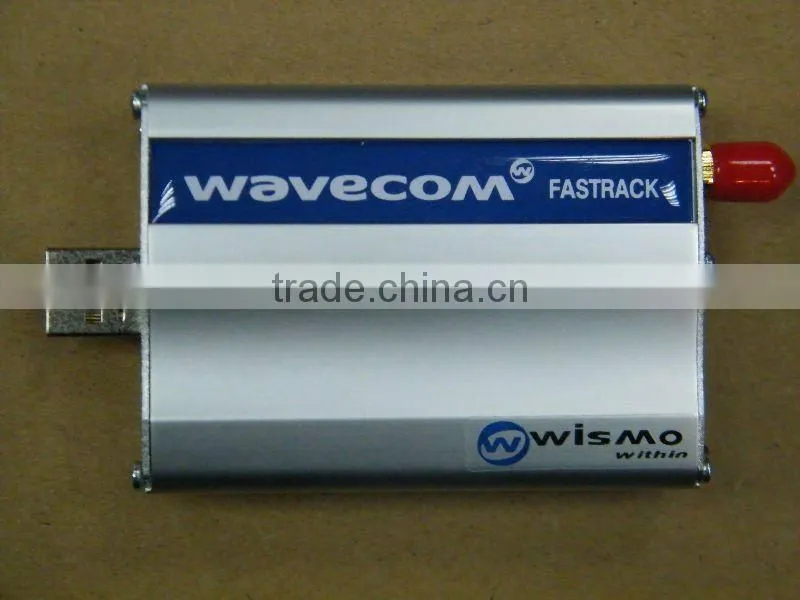

RS232 /USB modem with Wavecom q2403a gsm/gprs modem module

Specifications

RS232 /USB modem with Wavecom q2403a gsm/gprs modem module
USB GSM GPRS MODEM
Voice,data/facsimile,GPRS,SMS service

 RS232 /USB modem with Wavecom q2403a gsm/gprs modem module





The modem based on wavecom Q2403A, Industrial design.

Aluminum casing.

Standard rs232 interface.

Dual-band 900/1800mhz. 3v sim card slot.

Sim application toolkit.

Double tone multi-frequency function (dtmf).

Send and receive data, fax and sms.

Maximum transmitting speed 115kb/s.

 Antenna with high sensitivity. Always on-line.

 Comply with etsi gsm phase2+. Dual-band. Class 4 2w @ 900mhz. Class 1 1w @ 1800mhz. Input voltage5v-36v dc.

Input current1a. Standby current: 5ma.

Working current: 300ma. Group 3 fax (class 1 and class 2).

Working temperature -20 -+55.

Storage temperature:-25 -+70.

Size85*54*25mm. Weight130g.

Accessories: ac/dc adaptor, rs232 cable, antenna, 2 mounting plates, cd.







RS232 GPRS MODEM data characteristics

RS232 Connection Port
Miniature antenna connection, high sensitive antenna.
The speaker plug, incoming phone can be received with this speaker connection.
Automatically shift to pending pattern
3V active the SIM slot

Basic characteristics
Supports the AT commands, UDP and the PPP Protocols
115Kbps dual-way transmission, maximum speed, and maximum upgrading speed, and half speed rate
Double tones, multi- frequencies (DTMF)
SMS service

Value-added services
Incoming calls indication
Telephone directory management
SIM service

Fittings
External foldable 360 degrees rotation high sensitive antenna
USB Cable
Driving System

Applications
Voice communication, short message communications
Receiving and sending emails, GPRS wireless high speed access to the internet
Wireless data transmission, motion office and management

....
