High quality Q2406B module wavecom fastrack m1206b gsm modem
Brief of indroductions
1.Interface Type: USB
2.Quad-band (GSM850/900/1800/1900mhz)
3.Module:module
What is Features of our High quality Q2406B module wavecom fastrack m1206b gsm modem ?
Main Features:
- EGSM 900/1800MHz
- Supports voice / data / fax / SMS (text and PDU modes) / GPRS class 10
- OpenAT capable for embedded applications
- Optional TCP/IP stack permitting direct UDP/TCP connectivity and POP3/SMTP/FTP services
- 3V SIM Interface

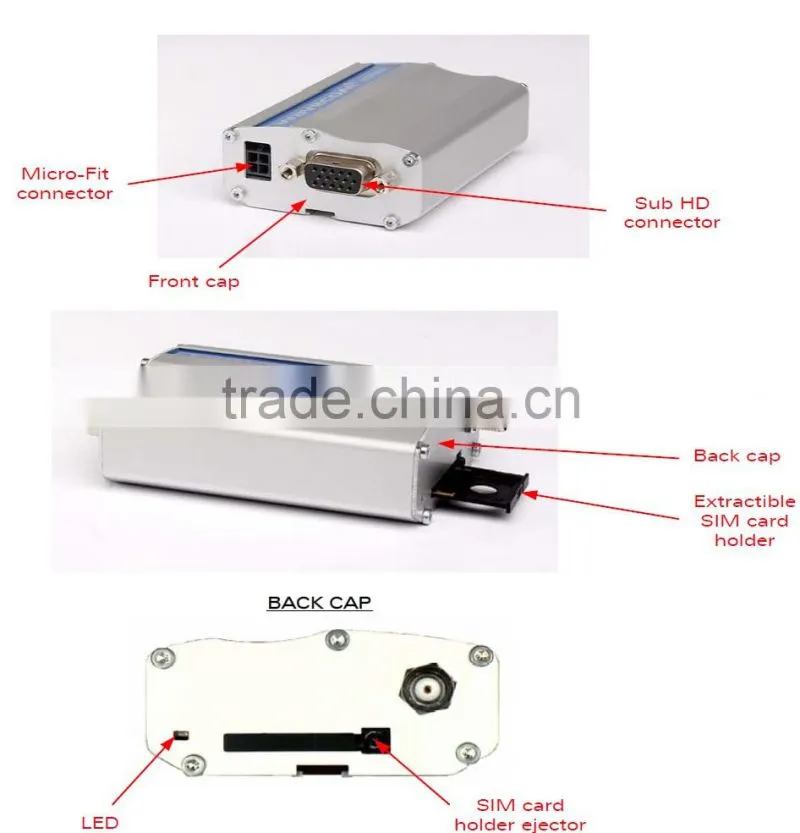

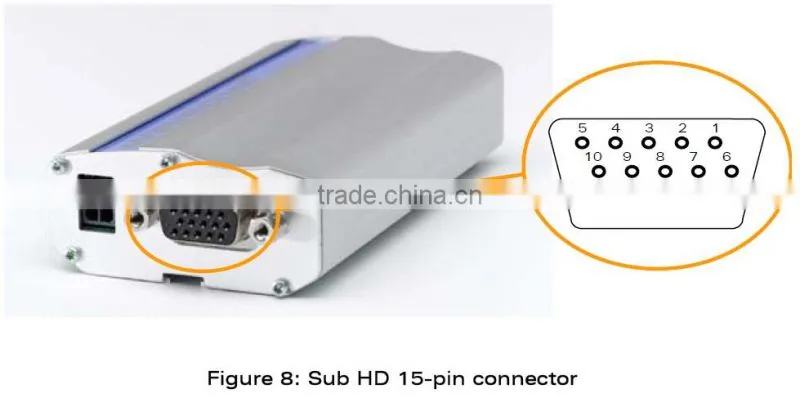

- 15-pin sub-D connector for voice and RS-232 serial interface
- Fully type-approved

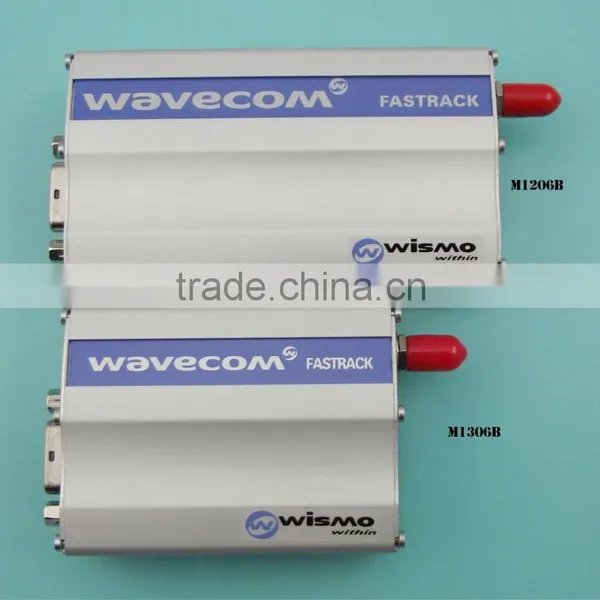

- 25mm shorter than M1206B predecessor
- Serial port shutdown power saving feature

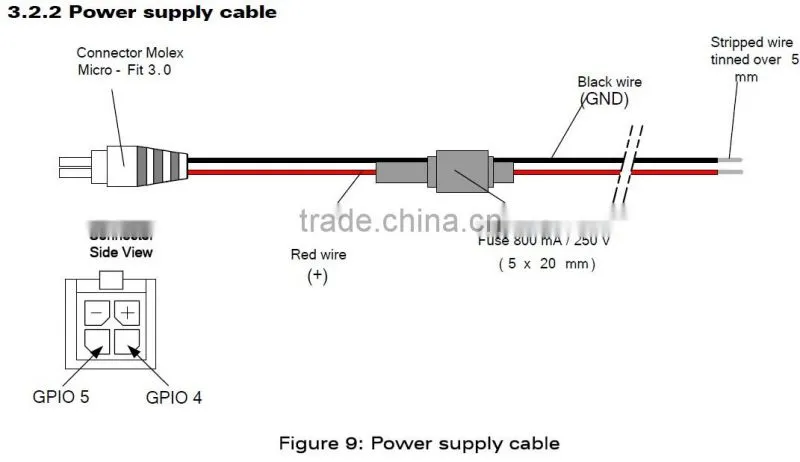

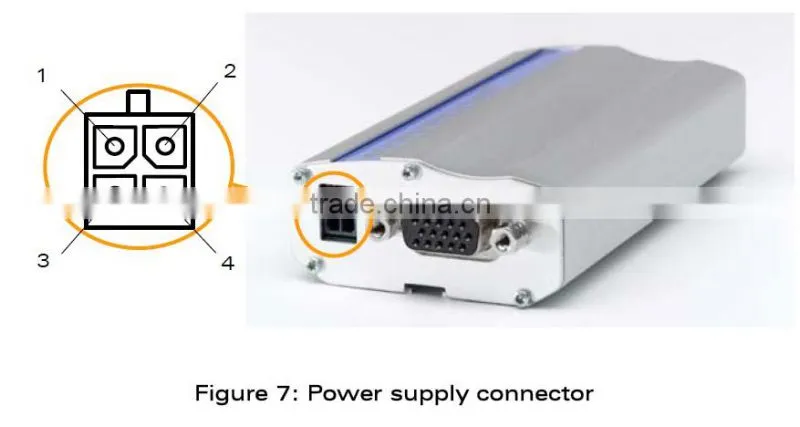

- Two general-purpose input/output pins built into Molex power connector
- Compatible with all laptops and PCs installed with Win 98SE / 2000 / ME / XP, Linux and Mac Os
Details:
- Band: Dual-band EGSM900/1800 MHz
- Dimensions: 2.6x7.4x6
- Input Voltage: 5.5 to 32v DC
- Power Supply: 14mA in idle mode with no RS232 communication @ 5.5VDC, 31mA in idle mode with active RS232 communication at 5.5VDC.
-
Description
Wavecom GSM GPRS Modem, Interface: RS232Specifications
Model
M - 1206B-1
Design
Industrial Design, Aluminium Casing
Based On
Based on WAVECOM Module A-2406B
Band
900/1800 MHz, in compliance with ETSI GSM Phase2 + Standard
RJ11 For Phone
Internet
Wireless Access to internet
TCP/IP stack
YES
AT Commands
Remote control GSM 07.07 & 07.05
Interface
DB -15 PIN RS232 Interface
SIM Slot
3 Volt SIM Card slot
GPRS Class
GPRS Class 10
Transmitting Speed
Maximum Transmitting Speed 115.2 Kbps
DTMF
Yes
Work
Send SMS, Data, FAX, E-mail and Voice
Antenna
Male SMA connector
Output Power
900MHz 2W (Class 4)
1800MHz 1W (Class 1)
Input Voltage
6V to 36 V DC
Input Current
1A to 2 A
Standard Current
Standard Current 52mA
Working Current.
100 - 140mA
Working Temp.
(-20C to +55C)
Store.temp.
(-25C to +70C)
DB
15 PIN RS232 Interface
Weight
80g

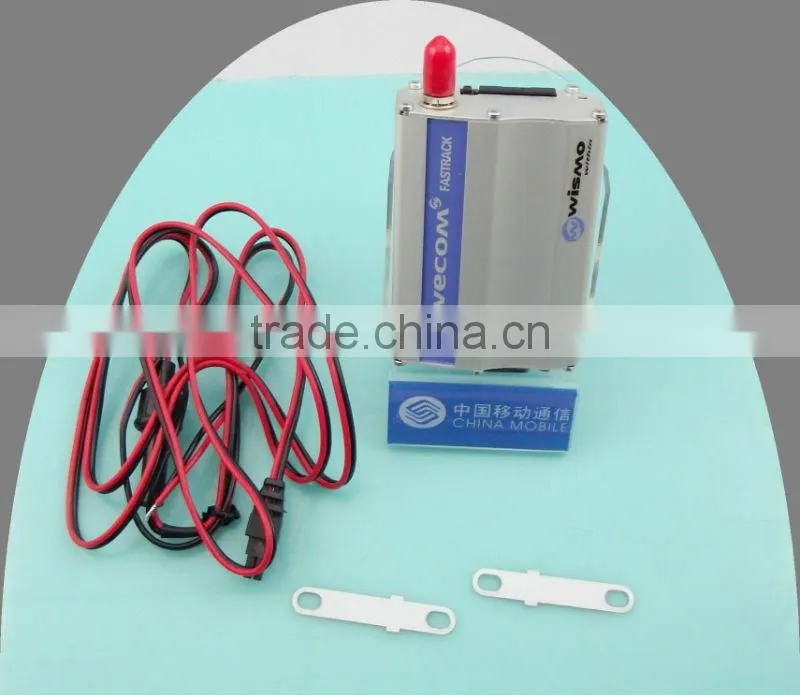

Accessories
2 mounting plates;4PIN Power cable.
Voice Features
Telephony
Emergency Calls
Full Rate, Enhanced Full Rate and Half
Rate (FR/EFR/HR)
Dual Tone Multi Frequency Function (DTMF)
GSM Data Features:
Data circuit asynchronous, transparent and non transparent up to 14,400 bits/s MNP2, V.42bis
GPRS Packet Data Features:
GPRS Class 10, PBCCH support
Coding schemes: CS1 to CS4
Compliant with SMG31bis
Optional embedded TCP/IP stack
Short Messages Services features:
Text and PDU Point to point (MT/MO)
Cell BroadcastGSM Supplement Services:
Call Forwarding
Call Barring
Multiparty Call
Waiting and Call Hold
Calling Line Identity
Advice of Charge
USSD
Closed User GroupGSM Supplement Services:
Call Forwarding
Call Barring
Multiparty Call
Waiting and Call Hold
Calling Line Identity
Advice of Charge
USSD
Closed User Group
What is Specifications of our High quality Q2406B module wavecom fastrack m1206b gsm modem ?
Wavecom’s rugged, discrete Fastrack GSM/GPRS modem has proven itself for stable, reliable performance on wireless networks worldwide for more than five years. Updated with new features, the now legendary Fastrack continues to deliver rapid time to market and painless integration for machine-to-machine applications.
Housed in a rugged metallic casing, 25 mm shorter than the previous version, the Fastrack M1306B now offers two general purpose input/output access points to connect peripherals. Fully certified, the dual-band 900/1800 MHz Fastrack M1306B offers GPRS Class 10 capability, supports Open AT and IT protocols such as IP connectivity.
It is included as part of the basic Autopage Package. Most Autopage users depend on it to send and receive messages, or keep it as a back up, but it can also be used for many other purposes. We supply it with a 240V mains power supply, a straight helical aerial and an RS232 data cable to connect it to your computer.
Functions of different modules
| Modem | Support | Frequence | Interface |
| Q2303 | SMS | 900/1800MHZ | USB/RS232 |
| Q2403 | SMS MMS | 900/1800MHZ | USB/RS232 |
| Q2406 | SMS MMS TCP/IP | 900/1800MHZ | USB/RS232 |
| Q24PLUS | SMS MMS EGDE | 850/900/1800/1900MHZ | USB/RS232 |

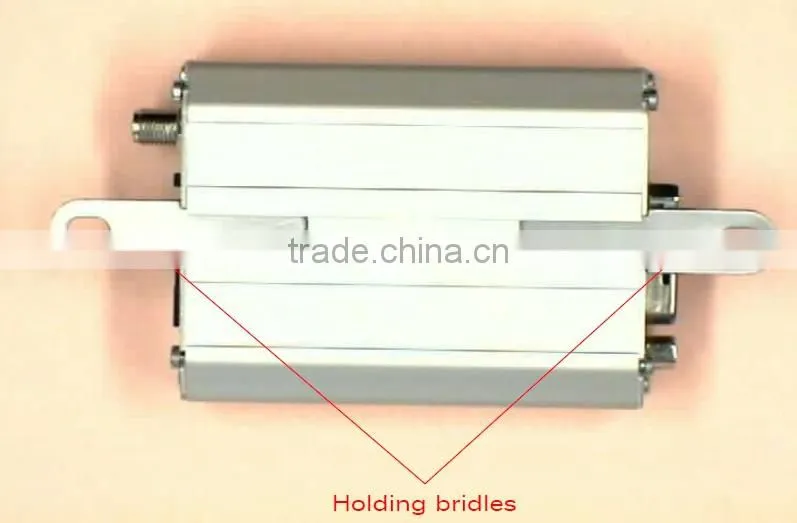

What is the fixed steps of our High quality Q2406B module wavecom fastrack m1206b gsm modem ?

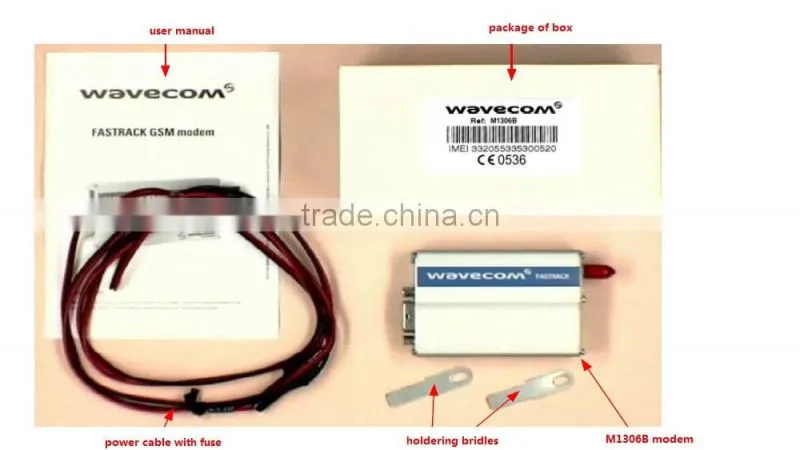

What is Packing Information of our High quality Q2406B module wavecom fastrack m1206b gsm modem ?

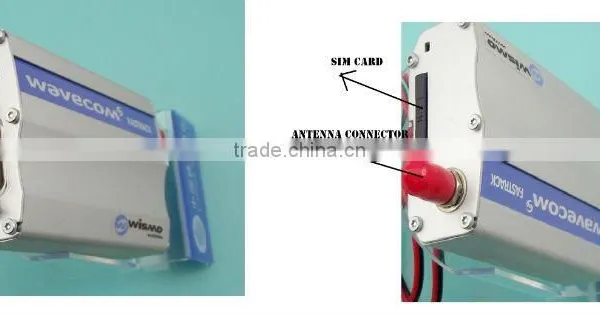

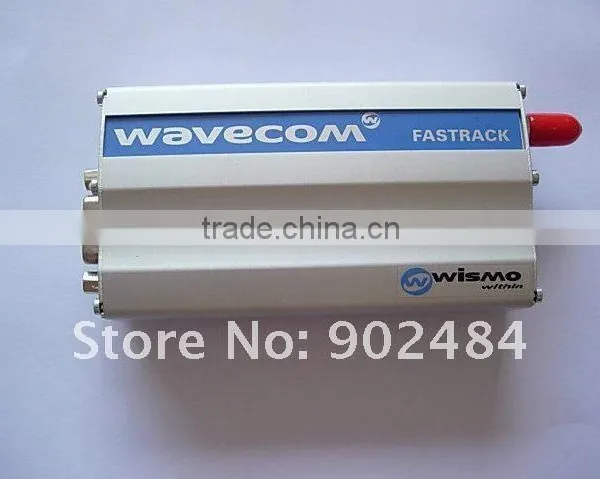

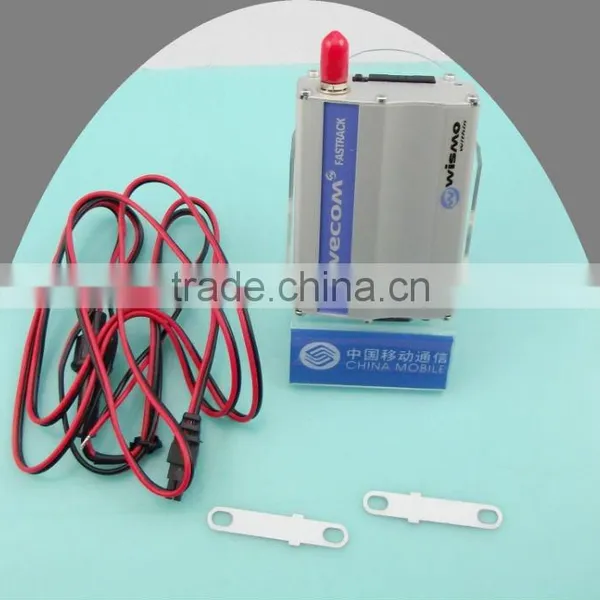

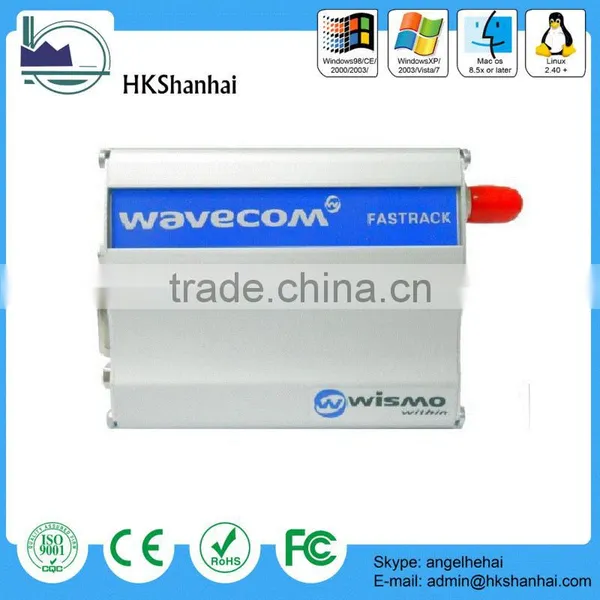

Product Photos

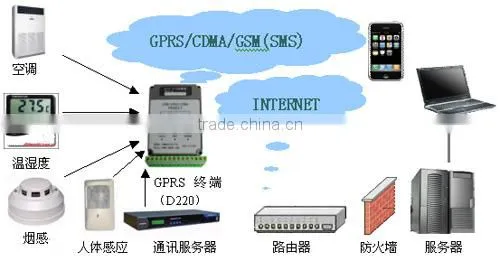

What is application of our High quality Q2406B module wavecom fastrack m1206b gsm modem ?
*Auto water managermant
*Auto home alarm system
*whether report system
*Gas system
Our Certifications
What is Our Advantages?
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. we supply 1 year warranty , and free technology support .
