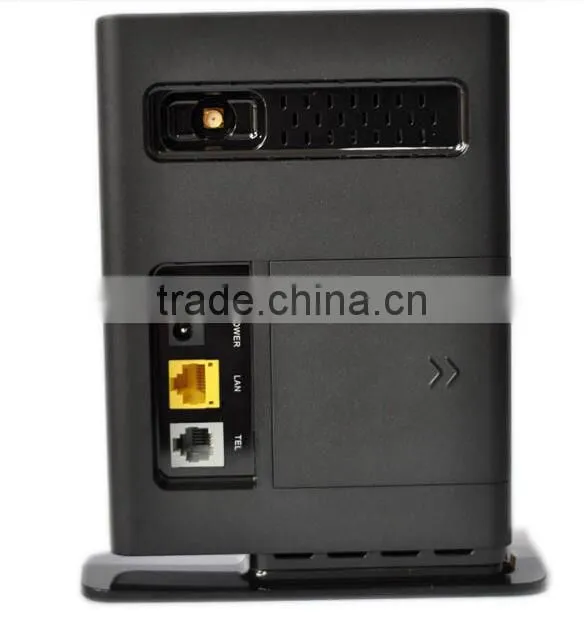

Hot sale 802.11/b/g/n huawei e5172 e5172as-22 4g lte wireless router
huawei e5172 4g lte wireless router
Brief Indroductions:
* LTE FDD/TDD/UMTS/GSM |
* DL 150Mbps/UL 50Mbps@20MHz(FDD) |
* DL 112Mbps/UL 10Mbps@20MHz(FDD) |
* Wi-Fi 802.11 b/g/n, up to 32 devices |
HUAWEI E5172 LTE Cat4 CPE is the world's first LTE CPE to support 150Mbps download speed. HUAWEI E5172 supports multi-modes LTE FDD/TDD/UMTS/GSM. The maximum download speed for FDD is 150Mbps and upload is 50Mbps. For TDD, the peak download speed is 112Mbps and upload speed to 10Mbps.
There are some variants model fro HUAWEI E5172, such as HUAWEI E5172s-22, HUAWEI E5172s-515, HUAWEI E5172As-22 and HUAWEI E5172s-920, they are for different frequency bands.
Main Specifications
* LTE FDD/TDD/UMTS/GSM |
* DL 150Mbps/UL 50Mbps@20MHz(FDD) |
* DL 112Mbps/UL 10Mbps@20MHz(FDD) |
* Wi-Fi 802.11 b/g/n, up to 32 devices |
* Firewall, CS Voice, TRO069 Rmote Management |
* HTTP Online Upgrade, Qos, USB Share, UPnP |
* IPv6, DLNA, Fax, Print, VPN, VLAN(option function) |
* Support Windows XP/Vista/7, Mac |
HUAWEI E5172 4G LTE Cat4 Wireless Router
HUAWEI E5172 LTE Cat4 Router Technical Specifications | ||
Model Number |
HUAWEI E5172 |
|
SIM Lock Status |
Unlocked, SIM Card Free |
|
Form type |
4G LTE Router /LTE Wireless Gateway |
|
| Opterator Model | STC/Zain | |
Chipset/platform |
|
|
Category |
LTE Category 4 (3GPP Release 9) WiFi Router |
|
Network Bands | ||
4G/LTE Frequency Bands |
E5172s-22: Band 1/3/7/8/20/38 (FDD 800/900/1800/2100/2600MHz & TDD 2600MHz) |
|
| E5172As-22 : FDD 800/900/1800/2100/2600MHz | ||
| E5172s-920 : Band 38/40 (TDD 2300/2600MHz) | ||
| E5172s-927 : FDD LTE 1800Mhz TDD2300Mhz | ||
3G UMTS/WCDMA Bands |
2100/900Mhz |
|
2G GPRS/GSM/EDGE |
850/900/1800/1900 MHz |
|
Data Rate Speed | ||
| 4G/LTE FDD link Speed | Downstream: 150Mbit/s | Upstream: 50Mbit/s |
| 4G/TD-LTE link Speed | Downstream: 112Mbit/s | Upstream: 10Mbit/s |
| 3G HSDPA/HSUPA/HSPA+/DC-HSPA+ Link Speed | Downstream: 42Mbit/s | Upstream:5.76Mbit/s |
Other Features | ||
| MIMO Support | YES |
|
| WiFi Support | 802.11 b/g/n |
|
| Maximum Users Supported | 32 Users |
|
| SD Card Slot | YES, SD card up to 32GB |
|
| USB Type | ||
| External Antenna Connector | 1 (SMA Connector) |
|
| Ethernet Port | 1 x RJ-45 | |
| Telephone port | 1 x RJ-11 | |
| Battery | Removable | Working time: |
| Dimensions | 173 mm x 124 mm x 31.5 mm |
|
| Weight | 200g |
|
| OS Supported | Windows/Linux/Mac OS |
|
| IPV 6 Support | Yes | |
| Supported Operators | ||
-
Schematic diagram
¦Product Details Photos¦
|
|
|
|
|
|
|
|
|
|
