Good offer New and original simcom 3g module SIM5215 from China supplier





Product Description

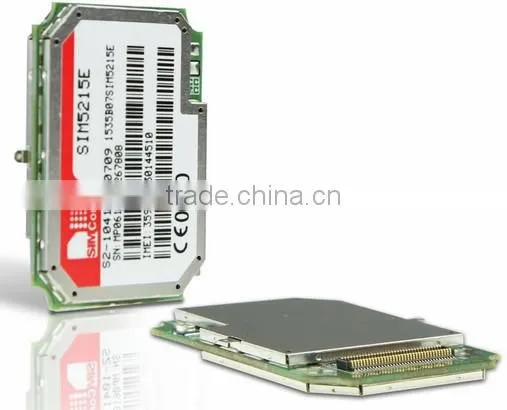

The SIM5215 series is Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384Kbps for data transfer.





With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.  Its unique camera/video call feature shall add value to security solutions. It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.







General features
* SIM5215A:Dual-Band UMTS/HSDPA 850/1900MHz
        Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
* SIM5215E:Dual-Band UMTS/HSDPA 900/2100MHz
        Quad-Band GSM/GPRS/EDGE 850/900/1800MHz
* SIM5215J:   Dual-Band UMTS/HSDPA 850(800)/2100MHz
        Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz



* GPRS multi-slot class 12
* EDGE multi-slot Class 12
* WCDMA 3GPP release 5
* Output power
         - UMTS 1900/850: 0.25W
         - UMTS 2100/900: 0.25W
         - GSM850/GSM900: 2W
         - DCS1800: 1W
         - PCS1900: 1W
* Control Via AT Commands
* Supply voltage range: 3.3V~ 4.2V
* Operation temperature: -30 °C to +80 °C
* Dimension:  36mm × 26mm × 4.7mm
* Weight: 7g









Support embedded Script Language
* LUA Script Language





Specifications  for  Data transfer
* WCDMA - Max.384Kbps(DL), Max.384Kbps(UL)
* EDGE Class - Max. 236.8Kbps(DL),Max.118Kbps(UL)
* GPRS - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
* CSD - GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps



Specifications for SMS
* Point to point MO and MT
* Text and PDU mode



Specifications for CSD
* Support in GSM and WCDMA









Specifications for Network Identity and Time zone (NITZ)
* Support in GSM and WCDMA



Specifications for video call
* DTMF on H245
* Support standard WCDMA  64kbps(CS) Video call



Other features
* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Linux 2.6.16
* Firmware update via USB
* MMS
* TCP/IP
* FTP/HTTP/HTTPS/SMTP/POP3
* FOTA
* USB Audio







Interfaces
* USB2.0
* UART
* USIM card
* ADC
* Digital Camera
* GPIO
* I2C






Certifications



SIM5215A



* FCC



* IC



* ROHS



SIM5215E



* CE



* GCF



* ROHS



*REACH



*NCC





Carrier Approvals

SIM5215E

* Orange
