new products for 2015 wcdma 850/900/1800/1900mhz gsm module sim928 sim928a
wcdma 850/900/1800/1900mhz
Specifications
--850/900/1800/1900MHz gsm module SIM928 SIM928A
--Integrated Low-noise amplifier gsm gprs gps module SIM928 SIM928A

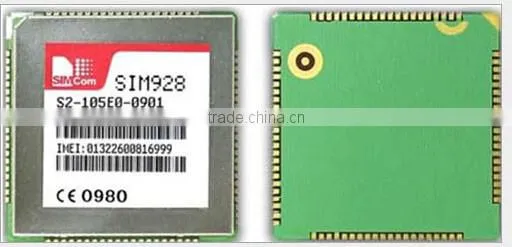

SIM928
SIM928 module is a compact Quad-Band GSM/GPRS-enable module base on PNX4851 platform which is also equipped with GPS technology for satellite navigation. The complete design in a SMT type makes it easy to integrate GSM/GPRS&GPS as an all-in-one solution.
General features
•Quad-Band GSM 850/900/18001900MHz
•GPRS multi-slot class 10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
-Class 4 (2 W @ 850/900 MHz)
-Class 1 (1 W @ 1800/1900MHz)
•Control via AT commands (3GPP TS 27.007 and SIMCom enhanced AT Commands)
•SIM application toolkit
•Supply voltage range:
-GPRS: 3.2 ~ 4.8 V
-V-GPS: 2.8 ~ 4.3V
-VCHG: 5V
•Low power consumption
•Dimensions: 30*30*3.0mm
•Weight: 5.3g
•Operation temperature:-40°C to +85 °C
Specifications for SMS via GSM / GPRS
•Point-to-point MO and MT
•SMS cell broadcast
•Text and PDU mode
Specifications for audio
•Tricodec
-Half rate (HR)
-Full rate (FR)
-Enhanced Full rate (EFR)
•Hands-free operation
•Echo cancellation
Specifications for data transfer
•GPRS class 8/10: max. 85.6 kbps (downlink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•Integrated TCP/IP stack
Specifications for CSD data
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
Compatibility
•AT cellular command interface
Specification for GPS
•Support EASYTM self-generated orbit prediction
•Support EPOTM orbit prediction
•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
•Support Jamming Removing
•Integrated Low-noise amplifier
•Receiver type
33tracking/99 acquisition-channel GPS receiver
•Max. update rate: 10Hz
•Sensitivity
Tracking: -167 dBm
Reacquisition: -157 dBm
Cold starts: -148 dBm
•Time-To-First-Fix
Cold start: 28s
Warm start: 26s
Hot start: <1s
EPO Assist: 13s(CTTFF)
•Accuracy
Automatic Position3 : <2.5m CEP
Speed4: 0.1m/s
Interfaces
• 80-pad with SMT type
• one Interface for external SIM card : 3V/ 1.8V
• two analog audio interfaces
• SPI interface
• RTC backup
• A serial interface and a debug interface for GSM/GPRS
• two serial interfaces for GPS charge input
Pictures:
Related Products:
Accessory:

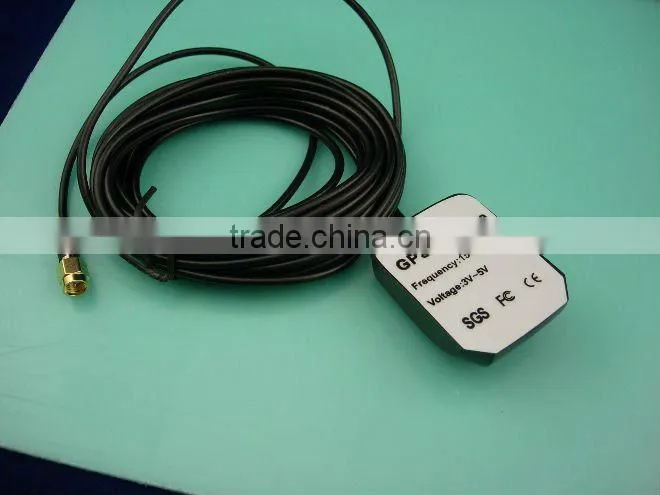

GSM/GPS antenna with 3meter cable
SMA connector
