GPS Vehicle Tracker
Specifications
vehicle real-time tracking and securityTrack on Demand
Show Location Directly on Mobile Phone
GPS Vehicle Tracker

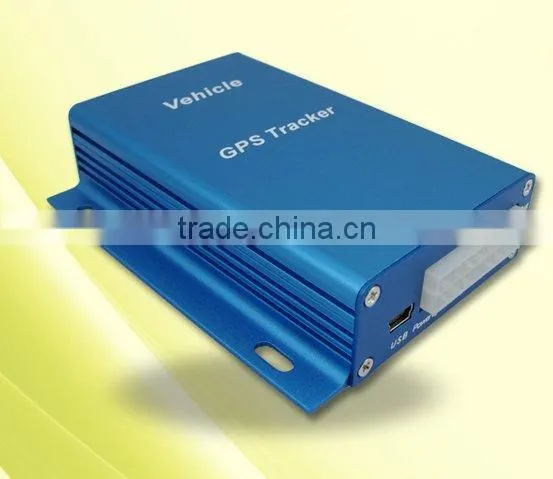

SH310 is a GPS/GPRS based tracking device specially developed and designed for vehicle real-time tracking and security.
SH310 has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base for tracking and fleet management.
With internal memory, SH310 can store GPS coordinates when there is no GPRS connection or at a specified interval requested by the user.
One optional feature of SH310 is that a microphone can be linked out to be hidden somewhere inside the vehicle for listening to the cabin.
SH310 has the following functions and features:
SMS and GPRS TCP/UDP Communication (Meiligao Protocol)
Track on Demand
Show Location Directly on Mobile Phone
Track by Time Interval
Listen (Voice Wiretapping) (Optional)
GSM Blind Area Memory
Logging Capacity up to 180,000 Waypoints
Inbuilt Motion Sensor for Power Saving
SOS Panic Button
Movement Alarm
Geo-fencing Control
Low Battery Alarm
Speeding Alarm
GPS Blind Area Alarm (in/out)
Power-cut Alarm
Engine Cut (Stop Engine)
I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs
Analog Input: 2 analog inputs of 10 bits resolution for connecting fuel level sensor or other sensors.
Box Size
211x162x70mm
Gross Weight
0.9kg per box
Carton Size
428X330X365mm
(20 sets)
825X428X365mm
(50 sets)

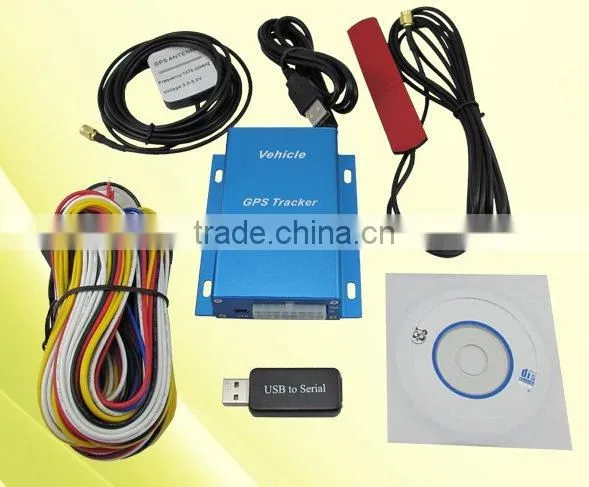

Standard Accessories
1 GPS Antenna
1 GSM Antenna
1 Set of Socket Cables
1 USB Cable
1 USB to Serial Adaptor
1 CD
Optional Accessories
Relay for Engine Cut
MIC for Voice Wiretapping
