Usb Gps Module

Usb Gps Module thumbnail-1
Usb Gps Module photo-1
US$ 17 - 19 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Globalsat
Model Number:
EM406
Contact Supplier Request Quote Chat Now
Shenzhen Shanhai Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
hk
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Globalsat
Model Number EM406

Specifications

usb gps module
1.high sensitivity GPS module
2.smallest GPS module
3.fast delivery low cost
4.CE Rohs PTCRB

usb gps module

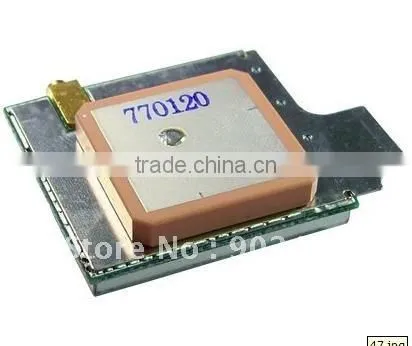

An OEM Module with SiRF Start III chipset and a built-in Antenna

1. SiRF starIII high performance GPS Chip Set

2. Very high sensitivity (Tracking Sensitivity: -159 dBm)

3. Extremely fast TTFF (Time To First Fix) at low signal level

4. Support NMEA 0183 data protocol

5. Built-in SuperCap to reserve system data for rapid satellite acquisition

6. Built-in patch antenna

7. LED indicator for GPS fix or not fix

    LED OFF: Receiver switch off

    LED ON:No fixed, Signal searching

    LED Flashing:Position Fixed



Features:
SiRF starIII high performance GPS Chip Set
Very high sensitivity (Tracking Sensitivity: -159 dBm)
Extremely fast TTFF (Time To First Fix) at low signal level
Support NMEA 0183 data protocol
Built-in SuperCap to reserve system data for rapid satellite acquisition
Built-in patch antenna
LED indicator for GPS fix or not fix
LED OFF: Receiver switch off
LED ON: No fixed, Signal searching
LED Flashing: Position Fixed
Specification:
General
Chipset SiRF Star III
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Sensitivity -159 dBm
Accuracy
Position 10 meters, 2D RMS
5 meters, 2D RMS, WAAS enabled
Velocity 0.1 m/s
Time 1us synchronized to GPS time
Datum
Default WGS-84
Acquisition Time
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max
Velocity 515 meters /second (1000 knots) max
Acceleration Less than 4g
Jerk 20m/sec **3
Power
Main power input 4.5V ~ 6.5V DC input
Power consumption 60mA
Protocol
Electrical level TTL level, Output voltage level: 0V ~ 2.85V
RS-232 level
Baud rate 4,800 bps
Output message NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL
Physical Characteristics
Dimension 30mm*30mm*10.5mm ±0.2mm
Operating temperature -40  to +85



* VIN (DC power input):
This is the main DC supply for a 4.5V ~6.5 DC input power.
* TX:
This is the main transmits channel for outputting navigation and measurement
data to user's navigation software or user written software.
* RX:
This is the main receive channel for receiving software commands to the engine
board from SiRFdemo software or from user written software.
* GND:
GND provides the ground for the engine board. Connect all grounds.

....
