2014 New Product Gmm-g3 GPS+GLONASS Module Manufacturer in China Wholesale

2014 New Product Gmm-g3 GPS+GLONASS Module Manufacturer in China Wholesale thumbnail-1
2014 New Product Gmm-g3 GPS+GLONASS Module Manufacturer in China Wholesale photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GlobalTop
Model Number:
Gmm-g3
Contact Supplier Request Quote Chat Now
Shenzhen Shanhai Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GlobalTop
Model Number Gmm-g3

Specifications

Gmm-g3 GPS+GLONASS Module
1.good after-sales service
2.Support multifrequency-channel GPS
3.Fast TTFF at low signal level

  2014 new product Gmm-g3 GPS+GLONASS Module manufacturer in China wholesale



Gmm-g3 GPS+GLONASS Module





Product Description



Product Description

The GlobalTop Gmm-g3 module utilizes MediaTek's new generation GNSS chipset "MT3333" supporting various location and navigation applications including autonomous GPS, GLONASS, GALILEO*,QZSS, SBAS, DGPS (RTCM) and AGPS. It supports up to 210 PRN channels with 99 search channels and 33 simultaneous tracking channels. (*GALILEO will be supported)

This chipset has the industry's highest level of sensitivity (-165dBm) as well as instant Time-to-First Fix (TTFF). It also combines many advanced features including AlwaysLocate™, EASY™, EPO™ and logger function.

Gmm-g3 is the ideal SMD solution for those who wish to incorporate GPS functions into their very small form factor device.

Feature

  • MediaTek MT3333 Chipset, 33 tracking/ 99 acquisition-channel GPS/GLONASS receiver
  • Dimension 11.5 x 13 x 2.1 mm; SMD
  • Ultra-high Sensitivity, -165 dBm, TCXO Design
  • Gtop Firmware Customization Services
  • GPS+GLONSS Consumption current (@3.3V)
      Acquisition: 35mA Typical
      Tracking: 29mA Typical
  • E911, RoHS Compliance
  • DGPS (QZSS/WAAS/EGNOS/MASA/GAGAN*)
    *GAGAN will be supported



Specification

Dimension 11.5 x 13 x 2.1 mm, SMD type
GPS Solution MTK MT3333, 99 Channels
Frequency GPS L1, 1575.42MHz
GLONASS L1, 1598.0625~1605.375MHz
Sensitivity Acquisition -148 dBm
Tracking -165 dBm
Position Accuracy Without aid: 3.0 m (50% CEP)
DGPS (SBAS(WAAS,EGNOS,MSAS,GAGAN*)): 2.5 m (50% CEP)
TTFF (Time to First Fix) Cold Start: Warm Start: Hot Start:
Timing Accuracy (1PPS Output) ±10ns RMS
Protocol NMEA 0183, MTK Command
DGPS SBAS(default) [QZSS,WAAS, EGNOS, MSAS,GAGAN*]
AGPS Supported (Offline Mode)
Interface 2 UART
Baud Rate 4800 ~ 115200 bps
Update Rate 1 ~ 10 Hz
Power Supply VCC: 3.0 V to 4.3 V
VBACKUP: 2.0 V to 4.3 V
Current Consumption Acquisition: 35 mA
Tracking: 29 mA
Working Temperature -40 °C to +85 °C

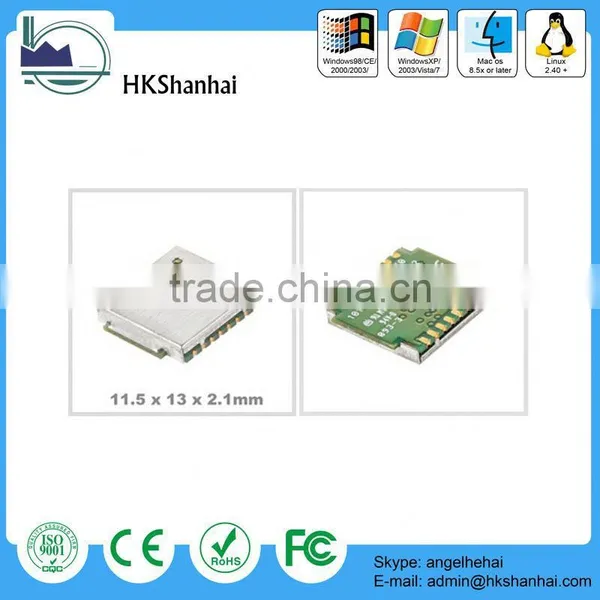

Product Photos:

2014 new product Gmm-g3 GPS+GLONASS Module manufacturer in China wholesale2014 new product Gmm-g3 GPS+GLONASS Module manufacturer in China wholesale




Company Information



Our Certifications





2014 new product Gmm-g3 GPS+GLONASS Module manufacturer in China wholesale2014 new product Gmm-g3 GPS+GLONASS Module manufacturer in China wholesale2014 new product Gmm-g3 GPS+GLONASS Module manufacturer in China wholesale




Our Services



   Our   Advantages:

1.Rapid response on any inquiry.

2.Competitive price.

3.Professional inspection department to guarantee quality.

4. We supply 1 year warranty , and free technology support .

5.Good after-sales service and fast delivery.


FAQ





FAQ(Frequently Asked Questions)
 Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
 Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
 Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience
