HOLUX GPS Module M-9539
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Holux
Model Number:
M-9539
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MTK3337 Ultra-small GPS Module HOLUX M-9537NegotiableMOQ: 5 Pieces -
New and Original NEO-7M Gps Tracking Module Neo-7n Gps Embedded ModuleUS$ 10 - 12MOQ: 5 Pieces
-
MTK3339 Gsm ModuleNegotiableMOQ: 1 Piece
-
Original Quad-Band SIMCOM SIM900/ SIM900A/SIM900B/ SIM900D Tablet pc Gsm ModuleUS$ 1 - 15MOQ: 5 Pieces
-
Quad-Band SIMCOM SIM900/ SIM900A/SIM900B/ SIM900D Voip Gsm ModuleUS$ 1 - 15MOQ: 5 Pieces
Place of Origin
Taiwan, China
Brand Name
Holux
Model Number
M-9539
Specifications
HOLUX GPS module M-9539Holux GPS module M-9539 for PDA, PND, mobile phone, digitial camera
support various location

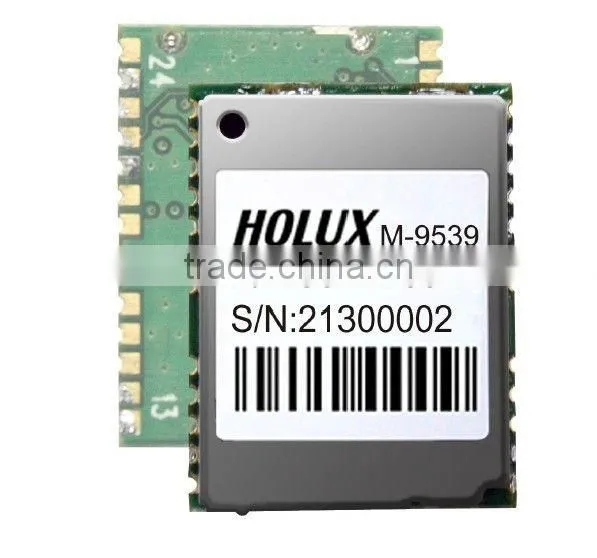

HOLUX GPS module M-9539
M-9539 GPS module brings the high performance of the MTK positioning engine to the industrial applications.It is able to achieve the industry s highest level of sensitivity, accuracy and TTFF with the lowest power consumption in a small-footprint lead-free package. With 66 search channels and 22 simultaneous tracking channels, it acquires and tracks satellites in the shortest time even at indoor signal level. The embedded flash memory provides capacity for storing user-specific configurations and allows for future updates.
M-9539 module combines with many advanced features including AlwaysLocateTM , EASYTM, and AIC. These features are beneficial to reduce consumption and accelerate TTFF for M-9539 module. The module supports various location, navigation and industrial applications including autonomous GPS, SBAS (including WAAS,EGNOS, MSAS, and GAGAN), QZSS, and AGPS.
M-9539 is an SMD type module with the compact 16mmx12.2mmx2.4mm form factor, which can be embedded in customer applications through the 24-pin pads. It provides necessary hardware interfaces between the module and customer s board.
Key features
High sensitivity -165 dBm (Tracking) Ultra-Low power consumption Variety Orbit Prediction Technologies available to enhance TTFF Support SBAS/QZSS Innate Logger Function AIC (active interference cancellation) available
Applications
Automotive and Marine Navigation Automotive Navigator Tracking Emergency Locator Geographic Surveying Personal Positioning Sporting and Recreation Embedded applications: Smart phone, UMPC, PND, MP4etc
Specification
| General (Follow MTK chip specification) | |
| GPS technology | MT3339 GPS chipset |
| Frequency | L1,1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 66 parallel searching,22 tracking channels |
| Sensitivity | -165 dBm (Tracking) |
| Receiver Accuracy (Follow MTK chip specification) | |
| Position | Without aid:3.0 M 2D-RMS |
| DGPS(WAAS, EGNOS, MSAS, RTCM):2.5 M | |
| Velocity | Without aid:0.1 M/se |
| Time | 0.1?s. Sync GPS time |
| Datum | |
| Datum | WGS84(Default) total 219 datum?s |
| Time to First Fix (Follow MTK chip specification) | |
| Hot start | < 1 sec. |
| Warm start | < 30 sec. |
| Cold start | < 31 sec. |
| Reacquisition | < 1sec. |
| Protocol | |
| GPS Output Data | Default: |
| NMEA0183(V3.01)- GGA, GSA,GSV,RMC | |
| Baud rate:9600 | |
| (Support Baud rate 4800/9600/?./115200 bps) | |
| Data bit:8 , Stop bit:1, No parity. | |
| Update Rata | 1 Hz(default) |
| Protocol Support | NMEA-0183 |
| 1PPS | Enable(1 Hz pulse 10% duty cycle) |
| Limitations (Follow MTK chip specification) | |
| Acceleration Limit | <4G |
| Altitude Limit | <18000 meters |
| Velocity Limit | <515 M/sec |
| Jerk Limit | 20 M/sec3 |
| Power | |
| Operation Current | Acquisition:T.B.D. 3.3V(w/o Active Antenna) |
| Operation Current | Tracking:T.B.D. 3.3V(w/o Active Antenna) |
| DC Input Range | VCC_IN: 2.8~4.3V |
| V_BAT:2.2~4.3V | |
| Processing Core | |
| Processor Type | ARM7EJ-S |
| Processor Speeds | Up to 56 MHz |
| Interface | CMOS 2.8 V Level |
| Temperature | |
| Operating Temperature | -30 to +85 |
| Storage Temperature | -40 to +90 |
| Operating Humidity | 5% to 95%, Non condensing |
| Physical | |
| Dimension | 16*12.2*2.4 mm. |
| Weight | <2g. |
