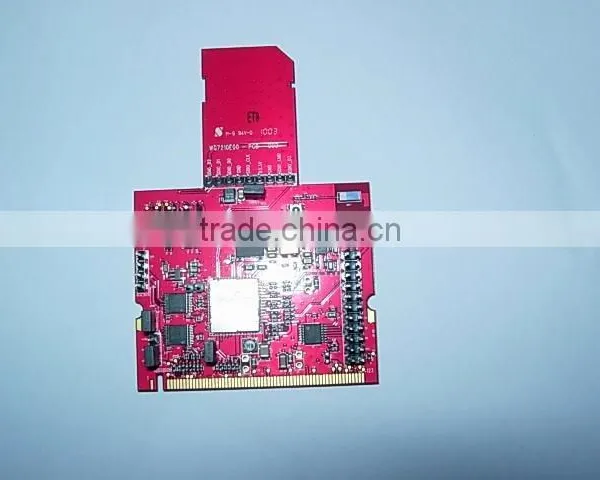

Product Specification of WM-G-MR-05
Wireless LAN Module
hot selling microwave waveguide Main features :
*High speed for wireless LAN connection: IEEE802.11b/g up to
54Mbps data rate by incorporating Direct Sequence Spread
Spectrum (DSSS) and OFDM data modulation.
* Provide seamless roaming within the IEEE 802.11b/g WLAN
infrastructure.
*IEEE 802.11b/g compatible: allow inter-operation among multiple
vendors.
* Auto fallback: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6M (802.11g);
11M, 5.5M, 2M, 1M (802.11b) data rate with auto fallback.
*WPA (Wi-Fi Protected Access)
* Support 802.11i Security standard through implementation of AES /
CCMP and WEP with TKIP security mechanism.
* Support 802.11e Quality of Service (QoS)
* Interoperability - Complying with WECA WiFi.
* 3-wire, hardware signaling BT WiFi co-existence supported
GENERAL FEATURES
802.11b/g
Standard
Complies with the latest IEEE802.11b/g wireless LAN Physical Layer Specification (IEEE 802.11g dated 12/6/2003)
Chip Set
Marvell 88W8686
Module Interface Type
SDIO (1bit and 4 bit) , SDIO_SPI , G-SPI
Module Connection
48pin LGA
Co-existence
Supports 3-wire BT coexistence scheme for an external BT solution
Data Rate
802.11g: 54, 48, 36, 24, 18, 12, 9, 6
Mbps, auto rate
802.11b: 11, 5.5, 2, 1Mbps, auto rate
Modulation
OFDM (54, 48, 36, 24, 18, 12, 9, 6Mbps) CCK (11Mbps, 5.5Mbps)
DQPSK (2Mbps)
DBPSK (1Mbps)
Operating Frequency
2.4GHz ISM band
Operating Channels
IEEE Channels 1-14 depending on
Regulatory Domain settings
Others
Compliance with FCC Class B Part
15.247, R&TTE, TELEC major RF
regulatory requirements
