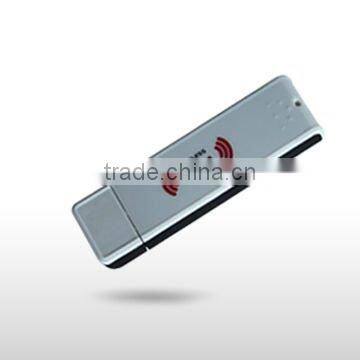

GWF-2A10 wifi connection

Specifications

wifi connection
1.Wi-Fi Certification:802.11 b/g
2.WPA, WPA2, WMM ,WMM-PS
3.Cisco CCX
4.Dimensions 86.6*25*10.5mm

GWF-2A10 wifi connection



Main Features:
802.11b:1,2,5.5,11Mbps;802.11g;6,9,12,18,24,36,48,54Mbps;
Hardware WEP,TKIP,AES Engines,WPA1/2-PSK(WPA Home)
Peak rate 54Mbps,Peak throughput 27Mbps
Power management

Certification:
Wi-Fi Certification:802.11 b/g,Microsoft WHQL, WPA, WPA2, WMM-PS, Cisco CCX

Hardware
Chipset Ralink RT2770+RT2720
Host interface USB2.0/1.1, type A(4pin header)
LED Link/ Activity

RF
Antenna Built-in PCB antennas(1T2R)
Frequency 2412~2472MHz, ISM band.
Transmit Power 802.11b:18+/-1.5dBm;
802.11g:15+/-1.5dBm;
802.11n:(HT20),15+/-1.5dBm;
802.11n:(HT40),22+/-1.5dBm.
Receive Sensitivity 802.11b:-84dBm@11Mbps;
802.11g:-71dBm@54Mbps
802.11n:(HT20),-71dBm@MSC7;
802.11n:(HT40),-65dBm@MSC7

Software
Operation System Windows CE/2000/XP/Vista; Linux 2.6.X;Mac OS X
Security WEP 64/128bit,WPA,WPA2,802.1X ,and802.11i
Cisco CCS V1.0,2.0 and V3.0 Compliant.

Operation Conditions
Voltage Range* DC 5.0V±5%
Operating Temperature 0°C-50°C
Storage Temperature -20°C-70°C
Operating Humidity RH 95%(Non-Condensing)
Storage Humidity RH 95%(Non-Condensing)

Physical Specification
Dimensions 86.6*25*10.5mm
