Specifications
gps/glonass module simcom sim68vTechnology:GPS/GLONASS
Dimensions:16*12.2*2.7mm
NormalTemp:-40 to +85
gps/glonass module simcom sim68v
SIMCom presents a high performance and reliable GNSS module-SIM68V. This is a standalone L1 frequency GNSS module in a SMT type with MTK's high sensitivity navigation engine, which allows customer to achieve industry's high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
Specifications
SIM68V
Technology:GPS/GLONASS
Dimensions:16*12.2*2.7mm
NormalTemp:-40 to +85

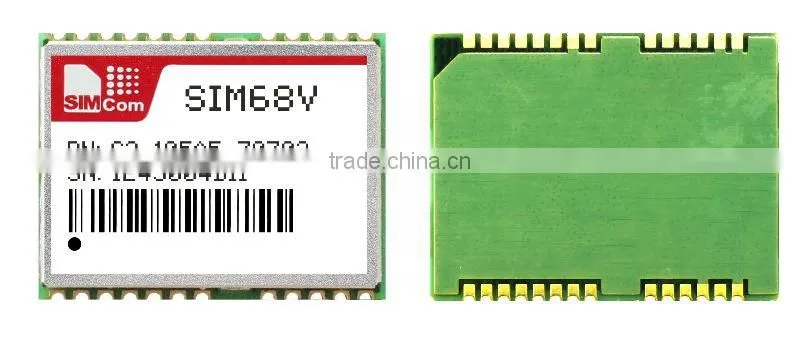

SIM68V
SIMCom presents a high performance and reliable GNSS module-SIM68V. This is a standalone L1 frequency GNSS module in a SMT type with MTK's high sensitivity navigation engine, which allows customer to achieve industry's high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
Mechanical data
*Dimensions: 16*12.2*2.7mm
*Weight: 1g
*Package: SMT
Interfaces
*Serial interfaces:UART, SPI / I²C
*Digital I/O EINT0 input
Pulse-per-second (PPS)
*Protocols NMEA
PMTK
Prformance data
*Receiver type 33tracking/99 acquisition-channel GNSS receiver
*Max update rate 10Hz
*Sensitivity1
Tracking -167dBm
Navigation -157dBm
Cold starts -148dBm
*Time-To-First-Fix 2
Cold starts 28s
Warm starts 26s
Hot starts <1s
EPO Assist: 13s(CTTFF)
*Accuracy
Automatic Position3 2.5m CEP
EPO 30days DATA:1.99m
Speed4 0.1m/s
*Operation temperature5 -40°C to +85 °C
Electrical data
*Power supply 2.8V~4.3V
*Power consumption2,6
-Acquisition 34mA
-Tracking 27mA
-AlwaysLocateTM <200uA
*Antenna type Active and passive
*Antenna power External or internal VCC_RF
Support product
*SIM68 EVB KIT with USB V2.0 full speed interface
--------------------
1.Demonstrated in lab
2.All SV @ -130 dBm, GPS&GLONASS mode
3.50% 24 hr static, -130dBm,GPS&GLONASS mode
4.50%@ 30m/s
5.When at -40°C~ -30°C,the sensitivity will be somewhat worse
6. @2.8V with a passive antenna
