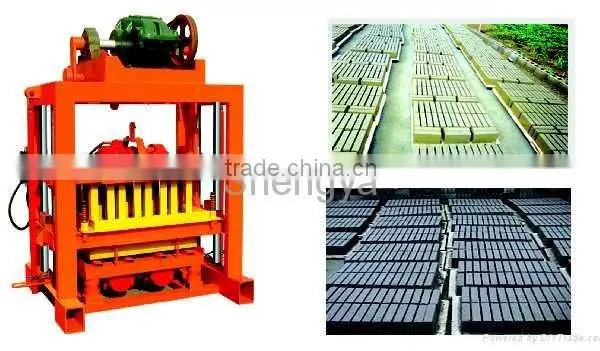

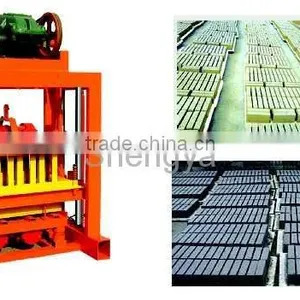

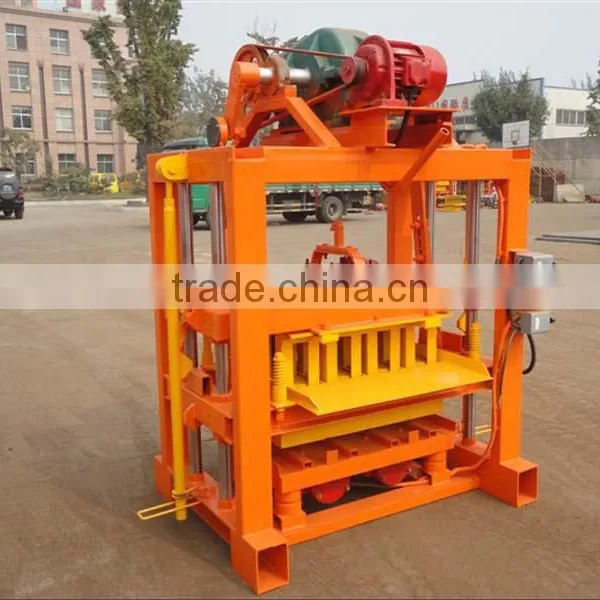

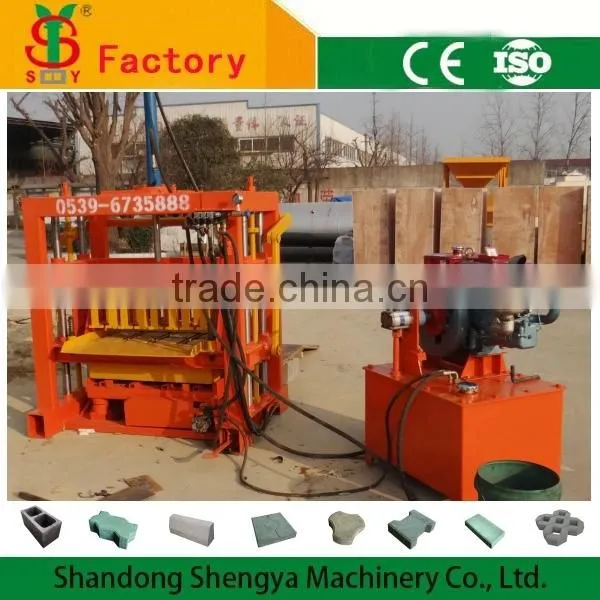

1. Multi-function QT4-40 semi-automatic small hollow manual block making machine
Quick Description:
1. With the lowest price;
2. Can produce all kinds of cement bricks & blocks, pavers.
3. Low invest, high productivity, can produce 4000-6000 pcs block per day.
4. No need learn, everyone can operate it.
Main Technical Parameters:
| Host Power | 9.6 KW |
| Cycle | 35-40S/Cycle |
| Total Weight | 1.5T |
| Overall Size | 1500*1650*2100mm |
| Carriage Size | 850*450*25mm |
Production
| Brick Size | Pieces Per Cycle | Shift Capacity |
| 240*115*53mm | 21pcs/cycle | 15000pcs/8hours |
| 390*190*190mm | 4pcs/cycle | 2800pcs/8hours |
| 390*240*190mm | 3pcs/cycle | 2160pcs/8hours |
Moulds Can be custom exactly according to your request!
2. Main Advantages:
1). Multi-function:
Multi-function QT4-40 semi-automatic small hollow manual block making machine can not only produce Paver bricks such as Curvelet brick and H brick, but also can produce all types of solid brick and hollow block!
2. Main Advantages:
1). Multi-function:
Multi-function QTJ4-40 semi-automatic small hollow manual block making machine can not only produce Paver bricks such as Curvelet brick and H brick, but also can produce all types of solid brick and hollow block!

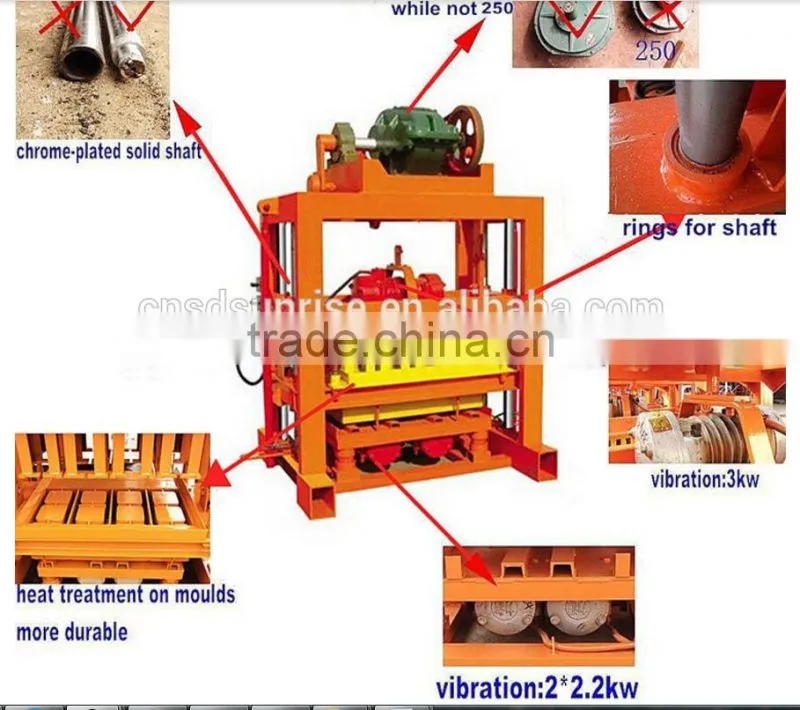

(2). Easy Operation:
Multi-function QTJ4-40 semi-automatic small hollow manual block making machine use automatic electric control switch and super strong vibrator, only need 2-3 workers to operating this machine!
(3) Small Production Line:
Multi-function QTJ4-40 semi-automatic small hollow manual block making machine add a small mixer can be a small production line, very suitable for small business.
3. JQ 350 Pan Concrete Mixer:( optional )
Main technical parameters
| Capacity | 350L |
| Motor Power | 5.5KW |
| Stirring Time | 35-40S |
| Diameter | 120CM |
| Mass | 480KG |
Picture for the JQ350 Mixer
Packing: Iron Box or nude
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or as ur requirement
Shipping Port: Qingdao, China.
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
Delivery:
You can choose to send your brick machines by LCL ( less than container) or whole container (20 GP or 40 GP).
We will arrange everything for you here in China, including packing, delivery, find forwarder, arrange shipping and so on.
You just need to pick up your brick machines when they arrived at your port; the newest information will be sent to you from time to time by us.
1). Operating requirements :
Working Shed |
|
Other |
|
Working Site: |
1000sq.m |
Staff and Workers: |
2-3 |
Working Shed: |
100sq.m |
Power Distribution: |
18kw |
Raw Material Work Shop: |
200sq.m |
Water Consumption: |
3T/day |
Office: |
30sq.m |
Pallet: |
800pcs |
2).Raw materials of the brick:
Wide range of raw materials could be adopted such as fly ash, coal residue, coal wastes, chemical residue, sand, stone, concent, cement, construction wastes and so on.
Our factory has 20 years history in manufacturing concrete block machine, interlocking clay brick machine, paver machine, pipe machine and concrete pole machine.
Our machines are wildly used in more than 80 countries and now we have my own branches with chinese workers in the following Countries and supply customers fast and excellet service.
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7. Kinshasa in DR. Cango
After-sale service :
Selling is only the beginning of our service,
1, Our good after-sale service would provide our customer with both the technology and the skills.
2, Our overseas technicians would be there to help installation and teach the using method.
3, We could provide the manual brochure if needed.
4, We would provide professional help with plant building by providing the foundation drawing.
