shengya brick machine QTJ4-26
Product Description
Introduction:
QTJ4-26C concrete block making machine is one kind of semiautomatic block machine, which is developed on the basis of small and medium model. The position-setting of the mould and the discharge head are more accurate.
The down-mould adopts the vertical, directional vibrating device while the up-mould uses the pressure vibrating. So the blocks made by this machine are even, high in density and strength. Also the automatic material distributing system greatly increase the productivity.
specifications:
Power |
11.75KW |
Cycle |
26S |
Overall Size |
3000×1600×2500mm |
Over mass |
1500kg |
product quantity |
400*200*200 4pcs/mould 3686pcs/8h 400*150*200 5pcs/mould 5500pcs/8h |
Capatity Table
Block size |
pcs/mould |
pcs/hour |
pcs/8 hour |
400x200x200mm |
4 |
600 |
3800 |
400x150x200mm |
5 |
700 |
5600 |
400x100x200mm |
7 |
850 |
7000 |
Packaging & Shipping
Packing: Nude or Iron Box would be used.
Delivery Date: 20 days or as soon as possible after confirm the down payment.
Shipping Method: By sea
Shipping Port: Qingdao, China
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
Product Pictures

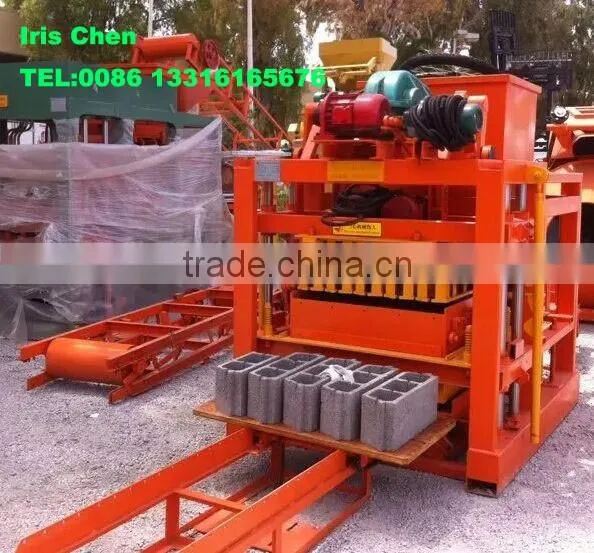

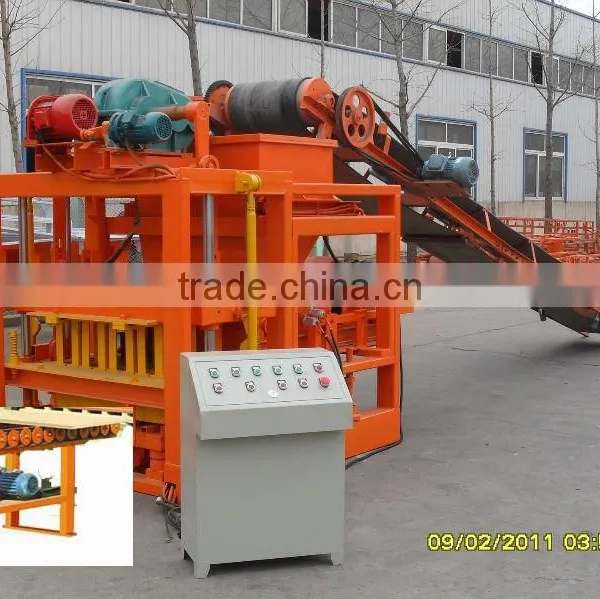

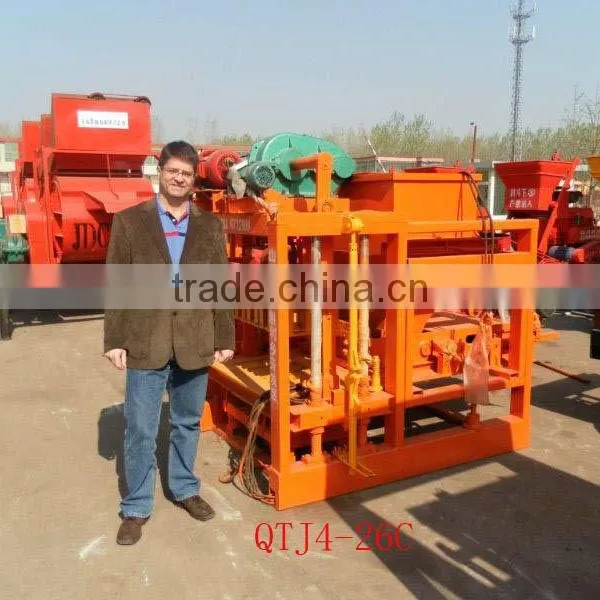

host machine
Mould for the brick
Some material

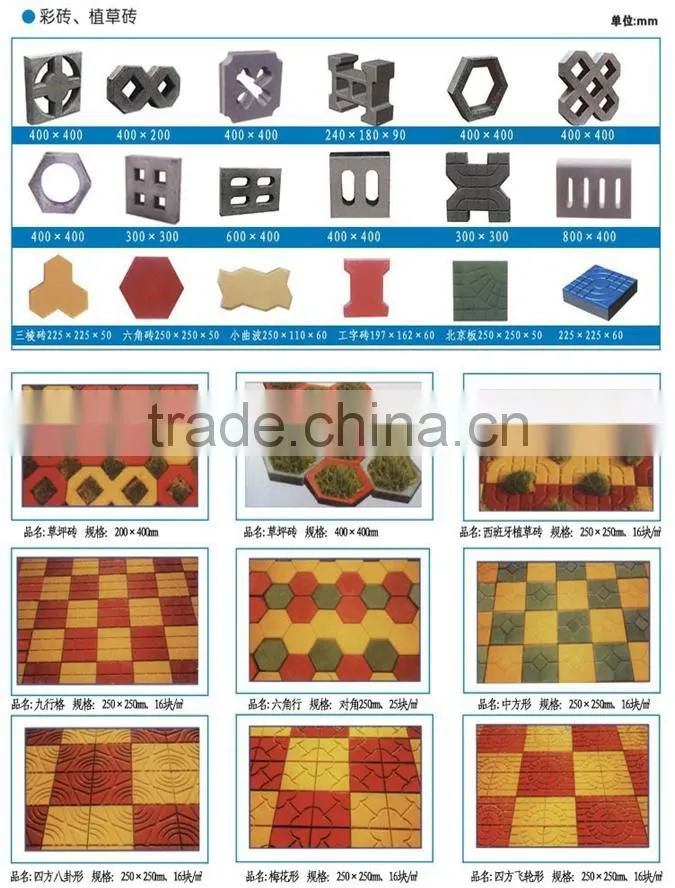

Brick Samples
Part of the Brick Capacity
We provide considerate service
Inquiry service:
Accept inquiry of customers,confirmation of investment advice of choice of product ,assist the customers to design the workshop
In-sale service:
Sale of product,help customers build the base ,technical training of customers’ workers ,practice of operation ,help to install ,train the operators in the workshop.
After-sale service:
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
Unique service:
System upgrade,special design according to the customers’ requirement, mould renew ,supply new technology and products information.
Our Commitment
1.Perfect 6*24hours services;
2.Professional training to your workers;
3.High efficiency brick production line;
4.Priority to become our agent in your city,we offer you our factory prices;
5.High profits from your bricks and blocks business.
Why choose us?
We are manufacturer:
Specialized in block machinery for over 20 years, we have rich expenrience and enjoy good reputation in China and foreign market.
Technology and Quality:
We adopt most advanced and reliable technology and use Siemens motors.
Our Price:
Providing our customers best qualified machine and most satisfied service with lowest price is our permanent goal.
Notes:
1. All kinds of mould can be designed according to customer's requirements.
2. All price are based on FOB, QINGDAO, China.
3. Payment: 30% as the down payment by T/T, 70% before delivery.
4. parameters mentioned here is only for reference, for they are updating all the time
5. Package: Nude packing or as required.
6. Warranty: All machines enjoy one year’s warranty, if you have any problems please feel free to contact us. We will try our best to make it.
FAQ
Q1: What is the Warranty for the machine?
A1: For the machine,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What kinds of payment methods can be accept?
A2: Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery
Q3: Who will pay the delivery cost?
A3: customers need to pay delivery cost.
Q4:Who arrange shipping?
A4:We will arrange shipping for you if you don’t have special requirement
Q5: what's the motor voltage?
A4: Our local voltage is 380v, 3phase, 50HZ, motor voltage could be customized to fit your local voltage
Q6: Do you have Operation Instruction Manual
A4: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.
Our factory has 20 years history in manufacturing concrete block machine, interlocking clay brick machine, paver machine, pipe machine and concrete pole machine.
Our machines are wildly used in more than 80 countries and now we have my own branches with chinese workers in the following Countries and supply customers fast and excellet service.
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7. Kinshasa in DR. Cango
Please feel free to contact with Iirs for further business talk!
Iris Chen: +86 13316165676(WhatsApp&WeChat)
