Help CenterSmall Scale QT40-3 Movable Hydraulic Hollow Block Making Machine With Electric Power in Shengya
Related Products
-
Shengya QT6-15a Fully Automatically Concrete Baking-free Block Making Machines China ProductUS$ 34,230 - 38,000MOQ: 1 Set -
QT6-15B Automatically Baking-free Concrete Block Making Machines China ProductUS$ 24,000 - 36,660MOQ: 1 Set
-
Automatic Hydraulic Cement+Soil Interlock Brick Making Machine/SY1-10 Earth Brick Making MachineUS$ 6,000 - 8,000MOQ: 1 Set
-
Low Price Hifh Reputation Hot Sells QTJ4-40 Hollow/paver Block Forming Machine in ShengyaUS$ 2,800 - 3,400MOQ: 1 Set
-
Shengya Brand Hydraulic Auto Cement Bricks/Concrete Block Block Making Machine QT5-20 Made in China VedioUS$ 15,000 - 18,000MOQ: 1 Set
Contact Person: Iris Chen
Sales Manager
Cell/Whatsapp: +86 13316165676
E-mail:brick11 at
(1)QTJ40-3 Mobile hollow block machine advanced techniques, reasonable structures, this machine adopting mould vibration,it can manual moving ,forward, backward, turn direction, this machine is of small size, higher production, easy to operate, high efficiency, low maintenance.
2).High performance: mobile hollow block machine using high quality steel, fine workmanship , Taiwan selected hydraulic components, so the machine can producing block continually.
3). QTJ40-3 Mobile hollow block machine makes blocks quickly, consumer low electricity( only consumer 1/6 of electricity on the same model block machine),and the blocks produced by it is of high density and strength, precise dimensions. So selecting this machine can lower the client investments and save production costs(it no need pallets),it is the first choice for the clinet.
|
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
|
|
400*150*200 |
5 |
450 |
3600 |
|
|
400*200*200 |
4 |
360 |
2880 |
|
|
400*250*200 |
3 |
270 |
2160 |
|
| Produce all kinds of solid bricks | ||||
| Dimension of host machine |
1800*1400*1100mm |
|
Vibration Frequency |
Max. 2900 r/m |
|
Hydraulic Pressure |
6.5Mpa |
|
Vibration Mode |
Mould vibration |
|
Demoulding Mode |
Hydraulic |
|
Moving Mode |
automatic |
|
The size of the pallet |
No need pallet |
|
Weight of the machine |
0.8 T |
|
Voltage |
380V |
|
Total power |
3.75KW |
Please feel free to contact with Iris for any further business talk! Thank you!!!
Cell: +86 13316165676

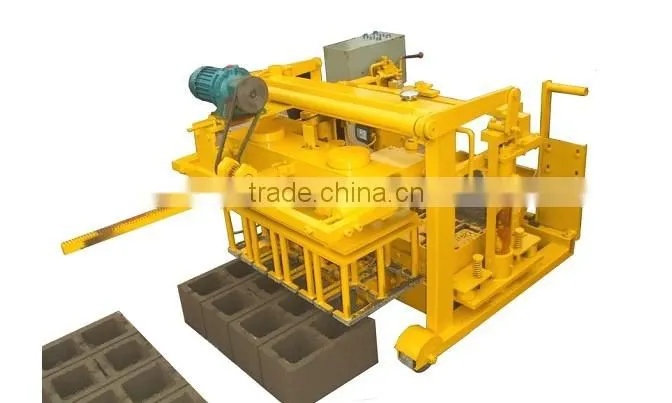

Pictures for the QT40-3 Block making machine
Packing: Iron Box or nude
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or as ur requirement
Shipping Port: Qingdao, China.
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
Delivery:
You can choose to send your brick machines by LCL ( less than container) or whole container (20 GP or 40 GP).
We will arrange everything for you here in China, including packing, delivery, find forwarder, arrange shipping and so on.
You just need to pick up your brick machines when they arrived at your port; the newest information will be sent to you from time to time by us.
Our factory has 20 years history in manufacturing concrete block machine, interlocking clay brick machine, paver machine, pipe machine and concrete pole machine.
Our machines are wildly used in more than 80 countries and now we have my own branches with chinese workers in the following Countries and supply customers fast and excellet service.
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7. Kinshasa in DR. Cango
