QT10-15 german zenith 913 concrete block making product machinery
Contact : Cassie Sun Mobile: +86-18816786169 (whatsapp/wechat) Skype: cassiebbsun Email: brick20 at
1.Particular storage and discription material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
2.Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
3.The computer is of fault diagnosis system., it can achiev Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system e scrutiny, controlling, diagnosis.
Main advantage of QT10-15 fully automatic hollow block paver block industral kerb making machine
A. QT10-15 block making machine use Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;
B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity).
C. Forming production faster and with higher compactedness ;
D. High-heat treatment special technology (to make the mould more durable and more firm) .
E:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius
Main technical parameters of QT10-15 fully automatic hollow block paver block industral kerb making machine
| Cycle time: 15-20(s) | Vibration Type: hydraulic and motor |
| Total Power: 45.1(kw) | Vibration Force: 105(KN) |
| Vibration Frequency: 50Hz | Gross Weight: 12800(kg) |
| Pallet size : 1100×880×25mm | Machine Size:11500×4050×2800(mm) |
| Rated Pressure: 31.5(mpa) | stacker power:3kw |
| Block Specification : | Production per shift (8 hours) |
| 390×190×190mm 10(pcs){hollow brick} | 14,400-19,200(pcs) |
| 240×115×51mm 52(pcs) {solid brick} | 73,440-97,920(pcs) |
| 240×115×90mm 24(pcs) {multi-holes brick} | 34,560-46,080(pcs) |
| 200×100×60mm 36(pcs) {color paver} | about 51,640(pcs) |
Raw materials :
crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block
Note: The customer can choose which section he need,so the price is not fixed.
Shengya QT10-15 capacity
Construction block machine QT10-15 other information
1. Workshop Area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five-six
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4. Hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. Raw material consumption per day:250-340T
6. Water consumption per day:3%-5% of raw material Weigh

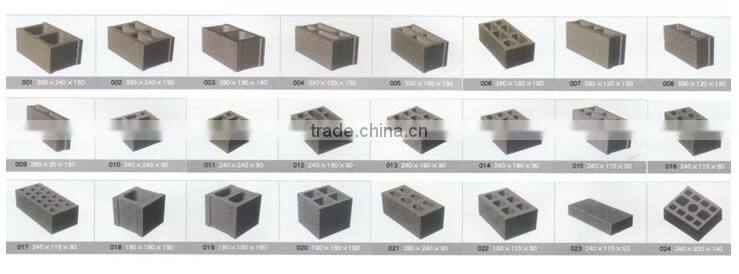

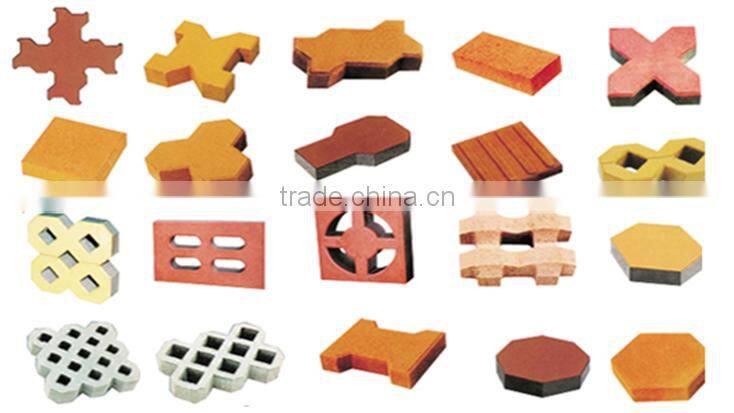

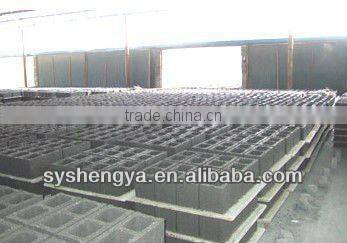

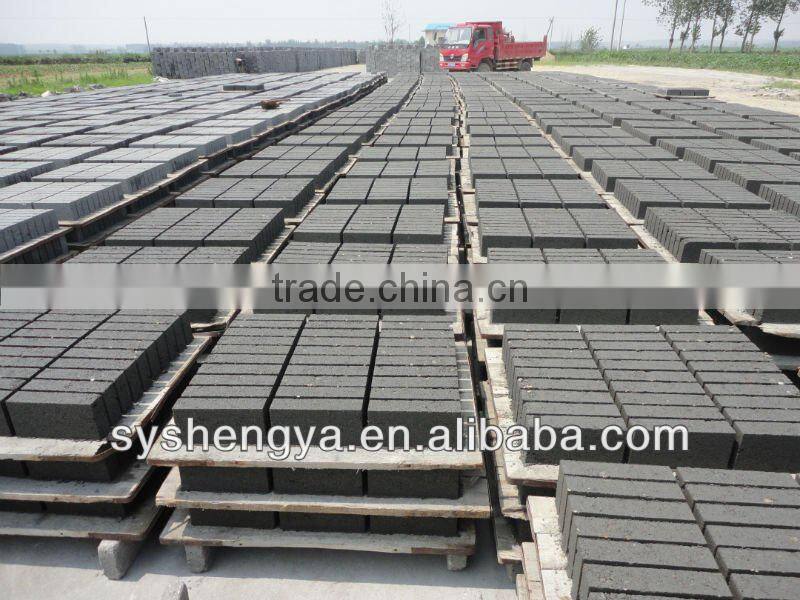

Block samples:
Warmly welcom to our factory for visiting!!
Quality Guarantee
Our professional engineer would text machine carefully before loading,so please rest assure.
Aftersale Services:
We have established eight oversea offices in Algeria,Cote d'Ivoire,Kenya,Nigeria,Ethiopia,Cameroon,DR Congo and Tanzania.We also have 3 after-service sites aborad :Angola,Sudan,the united Arab Emirates. So we can supply you better and in time service.
Selling is only the beginning of our service,
1,our good after-sale service would provide our customer with both the technology and the skills.
2, our overseas technicians would be there to help installation and teach the using method.
3, we could provide the manual brochure if needed.
