Big Factory Make good profit QT5-20 hydraulic block making machine in Africa
- 50 Set / Sets per Month
- Qingdao.
- T/T L/C D/P D/A Credit Card PayPal
- Hand press block making machine QTJ4-50
- QTY10-15 ecological concrete bricks making machine
- QTJ5-20 hollow bricks machine indian price
- QTJ5-20 hollow brick machine,interlocking brick machine price
- QTY10-15 hydraulic full automatic brick making machine for India
- QTJ5-20 hollow brick machine,eco brick making machine
Product Details
Condition: | New | Type: | Other, Hollow block/Paver brick/Standard brick making machine | Brick Raw Material: | Cement |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 4000-60000 Pieces/day | Place of Origin: | Shandong, China | Brand Name: | Shengya |
Model Number: | QT5-20 | Voltage: | 220V/380V/440V | Power: | 27.5kw |
Dimension(L*W*H): | 3650*2100*2720mm | Certification: | CE/SGS/ISO9001 | Warranty: | 12 Months |
After-sales Service Provided: | Overseas service center available |
Product Description
Contact: Iris Chen
Mobile/Whatsapp/Wechat: 0086 13316165676
E-mail: brick 11 at sdshengya dot com
QQ: 843221453
Shype: IrisChen26
FB: irischen
QT5-20 Hydraulic Automatic Block Making Machine in AFRICA
(1) Advanced hydraulic system and electro-hydraulic integration system is adopted,It is simple in operating and reliable in running
(2) The material distributing system equipped with multirow of stirring forks ,can quickly and evenly discharge the material into the moulding box.
(3) The integration of hydraulic system and vibrating make the brick shaping more quickly and the density of brick is strengthened .
(4) The machine can also produce different sizes of blocks with different moulds.
Specifications:
main machine Power | 22KW |
Cycle | 20S |
Overall Size | 3500X2000X2700mm |
Carriage Size | 1100X550X30mm |
Electrical source | 380V/50Hz |
Total mass | 5000kg |
product quantity | 400*200*200 5pcs/mould 5500pcs/8h 400*150*200 6pcs/mould 6700pcs/8h 200*100*60 20pcs/mold 20000pcs/8h |
Vedio website: https://youtu.be/j5h_6yvtC1w

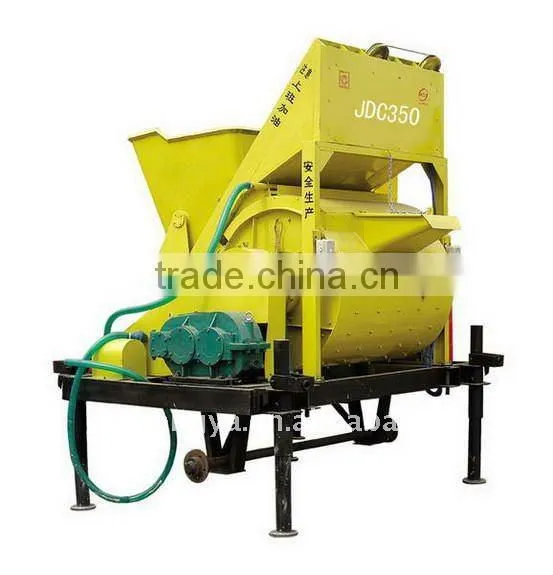

Concrete mixer JDC350 specifications
feeding capacity | 560L |
discharging capacity | 350L |
productivity | 17-21 M3/H |
speed of stiring shaft | 28R/MIN |
diesel engine power | 15kw |
lifing hopper speed | 20M/min |
pump motor | 0.55 |
Max. diameters of aggregates | 60/40mm |
stiring time | 30-35seconds |
standard height of dischaging | 2200mm |
dimension in transportation state | 2050x2550x2600MM |
weight | 3200KG |
Block Samples
Packing: Iron Box or nude
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or as ur requirement
Shipping Port: Qingdao, China.
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
Delivery:
You can choose to send your brick machines by LCL ( less than container) or whole container (20 GP or 40 GP).
We will arrange everything for you here in China, including packing, delivery, find forwarder, arrange shipping and so on.
You just need to pick up your brick machines when they arrived at your port; the newest information will be sent to you from time to time by us.
Our factory has 20 years history in manufacturing concrete block machine, interlocking clay brick machine, paver machine, pipe machine and concrete pole machine.
Our machines are wildly used in more than 80 countries and now we have my own branches with chinese workers in the following Countries and supply customers fast and excellet service.
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7. Kinshasa in DR. Cango
After-sale service :
Selling is only the beginning of our service,
1, Our good after-sale service would provide our customer with both the technology and the skills.
2, Our overseas technicians would be there to help installation and teach the using method.
3, We could provide the manual brochure if needed.
4, We would provide professional help with plant building by providing the foundation drawing.
