Home > Products > Hydraulic block machine > qt5-20 cement sand block making machine in india
qt5-20 cement sand block making machine in india
- 50 Set / Sets per Month
- QINGDAO CHINA
- T/T L/C D/P D/A Credit Card PayPal
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 5000pcs/8h | Place of Origin: | Shandong, China | Brand Name: | Shengya |
Model Number: | QT5-20 block machine | Voltage: | 380V or more | Power: | 40KW |
Dimension(L*W*H): | 3650*2100*2720mm | Certification: | ISO9001/CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
qt5-20 cement sand block making machine in india
the youtube website of video: https://youtu.be/GcJqKeCQ6yA
(1) Advanced hydraulic system and electro-hydraulic integration system is adopted,It is simple in operating and reliable in running
(2) The material distributing system equipped with multirow of stirring forks ,can quickly and evenly discharge the material into the moulding box.
(3) The integration of hydraulic system and vibrating make the brick shaping more quickly and the density of brick is strengthened .
(4) The machine can also produce different sizes of blocks with different moulds.
Specifications:
main machine Power | 22KW |
Cycle | 20S |
Overall Size | 3500X2000X2700mm |
Carriage Size | 1100X550X30mm |
Electrical source | 380V/50Hz |
Total mass | 5000kg |
product quantity | 400*200*200 5pcs/mould 5500pcs/8h 400*150*200 6pcs/mould 6700pcs/8h 200*100*60 20pcs/mold 20000pcs/8h |
Concrete mixer JDC350 specifications
feeding capacity | 560L |
discharging capacity | 350L |
productivity | 17-21 M3/H |
speed of stiring shaft | 28R/MIN |
diesel engine power | 15kw |
lifing hopper speed | 20M/min |
pump motor | 0.55 |
Max. diameters of aggregates | 60/40mm |
stiring time | 30-35seconds |
standard height of dischaging | 2200mm |
dimension in transportation state | 2050x2550x2600MM |
weight | 3200KG |

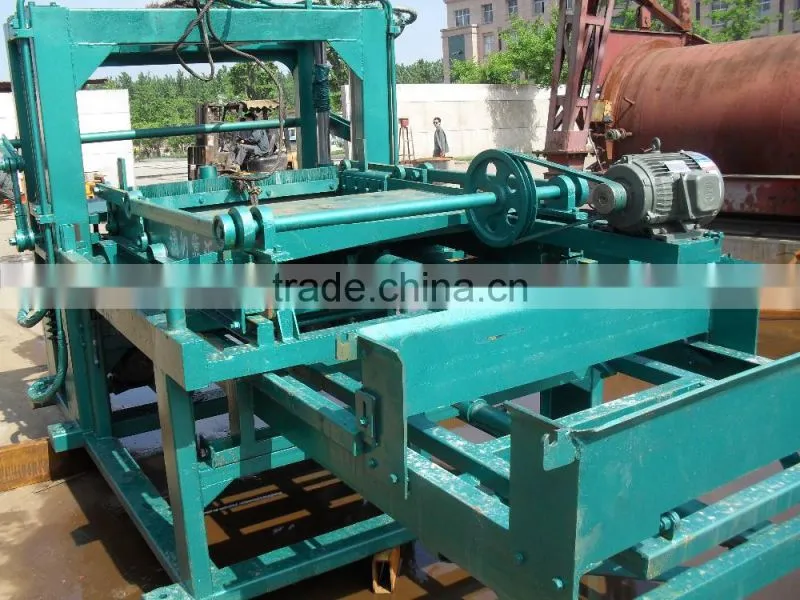

The host machine :

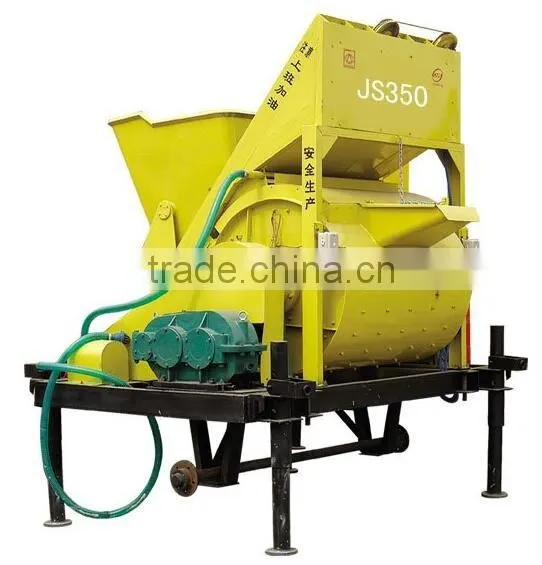

The concrete mixer :

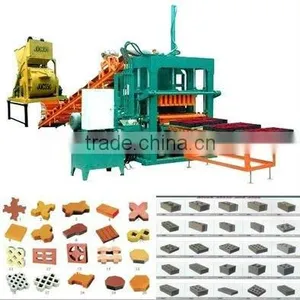

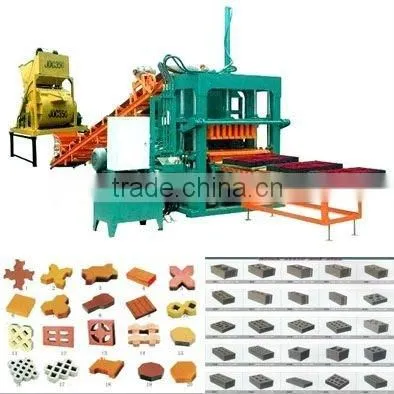

Popular used blocks & bricks samples as below:
the customers can choose the one(s) they like, we can produce the molds you want, and you can change the molds for different blocks & bricks.
block making machine, brick making machine, paving stone making machine, interlocking brick making machine, paver making machine, pavement making machine, colour paving stone making machine QT5-20.
hydraulic concrete brick making machinery from China QT5-20
We have our own long cooperate shipping company, they can offer the best freight. And if
you would like,we can use your shipping company to sent the machines.
Packaging:steel box or bulk
Shipping: qingdao port ocean shipping
Delivery time: 20days after 30% deposit

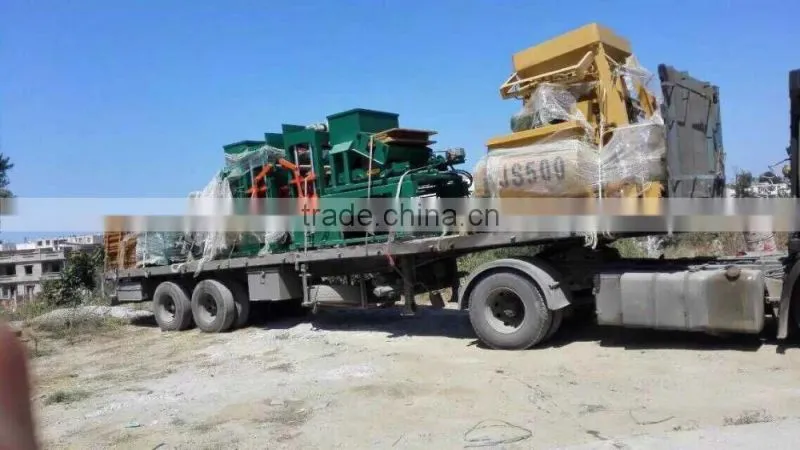

Packing and shipping:
Shandong Shengya Machinery Co.,LTD. was founded in 1995, We have been always working for the concrete block machines and mixers design, production and sales. For many years we have to perfect the quality, export block machines to more than 90 countries and regions, and also have office inNigeria,Tanzania, Algeria, Ethiopia, Kenya,Cameroon and Indonesia now, then can serve the clients much better.
Our factory:
Our certification:
1,Why choose us?
20 years' manufacturing experience of brick making machine.
8 after-sale servicing offices in Africa.
More than 20 mechanics provide after-sale service at abroad
2,What kind of the brick that the brick making machine can produce?
All kinds of the hollow block and paving brick.
You can customize the type of brick.
3,what is the driving power of the hollow block making machine?
Electricity and diesel engine
4,What is the material of the brick?
cement,sand,stone.fly ash,building waste and so on.
My customers with me in the canton fair:
