QT10-15 PLC Controlled Hydraulic Concrete Block Machinery

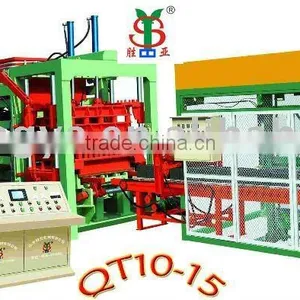

QT10-15 PLC Controlled Hydraulic Concrete Block Machinery thumbnail-1
QT10-15 PLC Controlled Hydraulic Concrete Block Machinery photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Processing:
Brick Production Line
Contact Supplier Request Quote Chat Now
Shandong Shengya Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hollow Block Making Machine
Brick Raw Material Cement
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 20000pcs/8hours
Place of Origin Shandong, China
Brand Name SHENGYA
Model Number QT10-15
Power 36.7kw

Specifications

1)PLC controlled hydraulic concrete block machinery
2)High productivity&efficiency
3) Make hollow blocks,pavement blocks

Sunny

Mobile:15305399026



Host Machine Brick Machine
 Stacking Machine
Belt Conveyor
Hydraulic Station
Controller
Batching Machine (PLD1200)
JS750 Mixer

Block Sweeper
Mould
Nylon Caps
Tension Springs
Barrow
Fittings
Tools

Power 36.7KW
Cycle 15 S
Carriage Size 1100(L)×880(W)×35(H)mm
Vibration Force 128KN
Vibration Frequency 50-70HZ
Electrical source 380V/50Hz
Rated Pressure 35MPa
Total Mass 10000kg
INRODUCTION OF QT10-15 BLOCK SHAPING MACHINE
Characters:
      PLC intelligent control. Man-machine interface, control  system equipped with complete logic control, production program, malfunction diagnosis
system and remote control function.  So it doesnt need a professional person but only need a simple training to the operator.
Product scope:
      It produces various bricks/blocks including color-face bricks(layered material feeding),through
body tiles, dock linkage blocks, road curb bricks, sod  bricks,hydraulic blocks hollow blocks,
perforated bricks, and standard bricks etc.
Optional configuration:
1. Lift-slab Elevating Conveyor (block stacking machine):
According to the different type of bricks, the finished products will be moved from the discharge  transmitter and pilled up automatically 3  to 8
layers by the elevating conveyor, and carried to the maintaining place by the fork lifter truck.It could reduce labor and ground.
2. Colour face material feeder (layered material feeding)
Equipped with color face material feeding device, it could make various color face bricks ,through-body Environmental protection bricks, road
curb rocks, hydraulic blocks and sod bricks and so on.For QT10-15 Block Forming Machine, intelligence system of PLC is adopted to control,
with man-machine.interface and automatic diagnosis function. For the electro-hydraulic proportional valve is used in  its vibrating system, the
material-feeding with low frequency and the shape-vibrating with high frequency have been achieved. Its material distributing system mounted
with multirow of stirring forkscan quickly and evenly discharge the materials into the molding box. Only by changing its moulds and dies,all  kinds
of blocks, standard bricks, cellular bricks, grass planting titles, etc.can be manufactured, with an annual production capacity of 50,000 cubic
meters of standard brick. So, it is one kind of ideal equipment for producing wall materials of new type.
Conditioin and Terms:
1. The above price is based on FOB Qingdao,China.
2. Delivery time: within 20 days after payment.
3. Term of Payment : 30% by T/T before production and balance T/T before loading.
4.Packing: Nude packing
5.Installation: we would send our technician for operation as buyer's requirement,but all charge and cost are on buyer's account.
