Shengya Brand QT5-15 fully automatic system hydraulic cement brick making machine for building house in Africa
Contact:
Adventages of Shengya Brand QT5-15 fully automatic system hydraulic cement brick making machine for building house in Africa
(1) Fully automatic. controlled by PLC system,random signa analysis,fault diagnosis and parameter setting-up achieved easily.
(2) Material stock hopper and the material feeding hopper are separated, quantitative feeding of materials made, which can effectively control concrete liquefaction and reduce the feeding time.
(3) Trailing feeding system adopt the multi-stirring forks, the mold case can slosh before and after quickly, in order to put the materials full the bottom of the mold case fast .
(4) Hydraulic components are fully used the Seiki components that are produced in Taiwan .which guarantee the reliability and stability of machinery long-term work, reduce the maintenance failure rate .
(5) Wide applicability, QT5-15 machine can change different molds due to the various needs .standard block, standard brick, planting brick, revetment ties, pavement slabs, decorative brick and other blocks are acceptable.
| Technical parameters of Shengya Brand QT5-15 fully automatic system hydraulic cement brick making machine for building house in Africa | |
| Power | 28.65kW |
| Overall size | 3700 x 1700 x 2550mm |
| Cycle | 15 to 18s |
| Carriage size | 1100 x 550 x 35mm |
| Vibration force | 80kN (adjustable) |
| Vibration frequency | 45 to 50HZ |
| Rated pressure | 16Mpa |
Together with the machine, one set of mould, 16 pcs of nylon caps, 2 pcs of barrow, one set of fittings, one set of tools will be provided free.

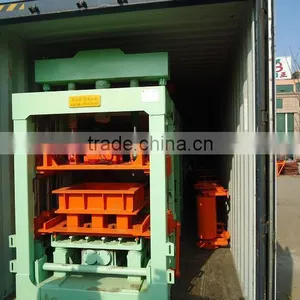

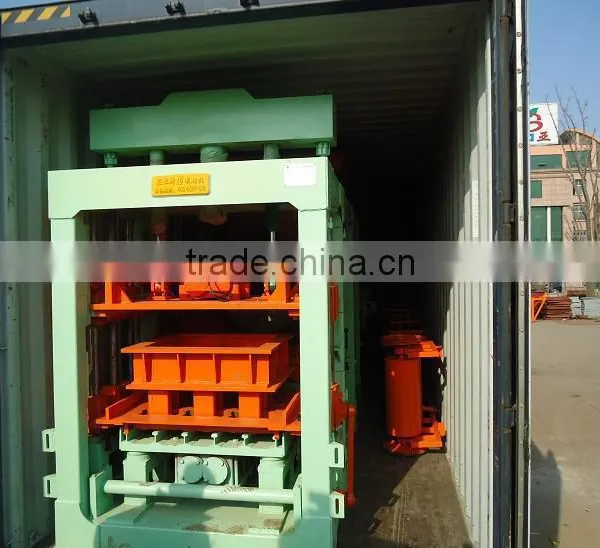

Packing & Shipping of Shengya Brand QT5-15 fully automatic system hydraulic cement brick making machine for building house in Africa
Packing:Nude or Iron Box or Standard Containers
Delivery Time:30 days after the receipt of the down payment or as soon as possible
Shipping Port: Qingdao, China
We have our longterm and reliable freight forwarder, which could guarantee to provide our customer with best service, but we could also use the clien's nominated freight agent as required.
Picture show of Shengya Brand QT5-15 fully automatic system hydraulic cement brick making machine for building house in Africa

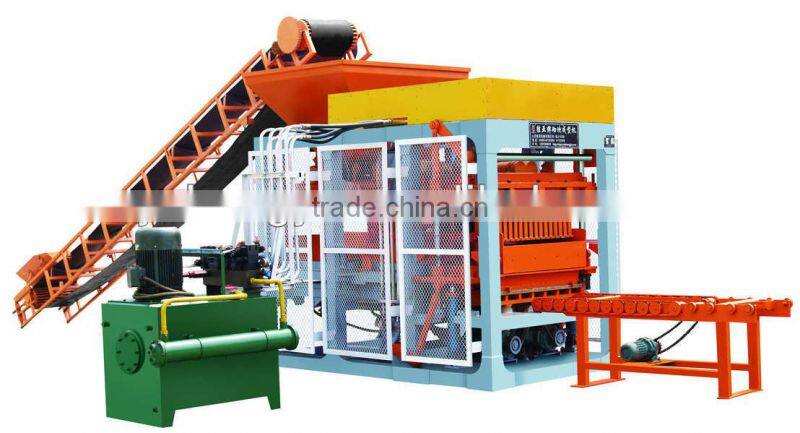

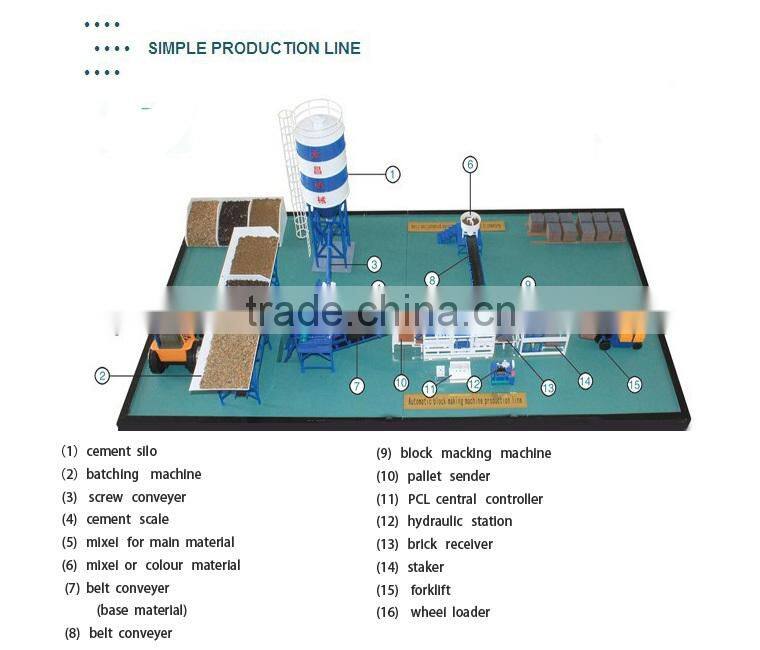

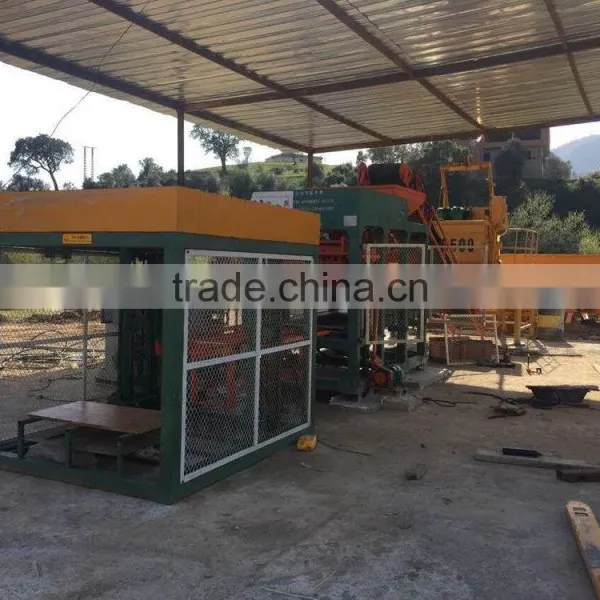

fully production line:

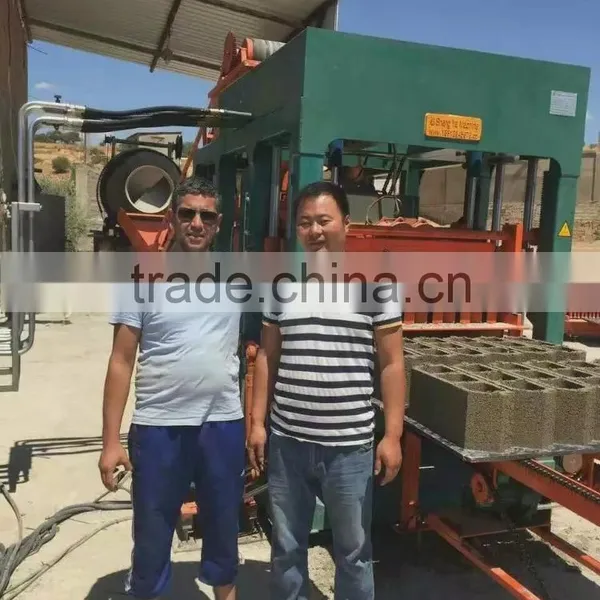

host machine:

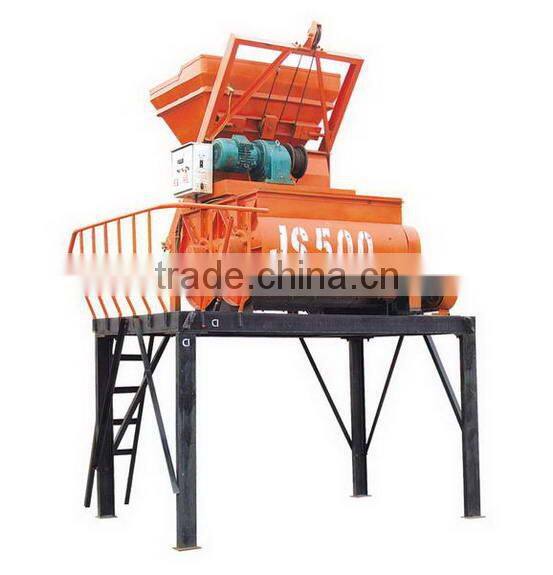

JS500 Concrete Mixer:
feeding capacity | 800L |
discharging capacity | 500L |
productivity | 23-28 M3/H |
speed of stiring shaft | 23R/MIN |
diesel engine power | 18.5kw |
lifing hopper speed | 25M/min |
pump motor | 0.55 |
Max. diameters of aggregates | 60/80mm |
stiring time | 30-35seconds |
standard height of dischaging | 2200mm |
dimension in transportation state | 3400x2300x2700MM |
weight | 4000KG |

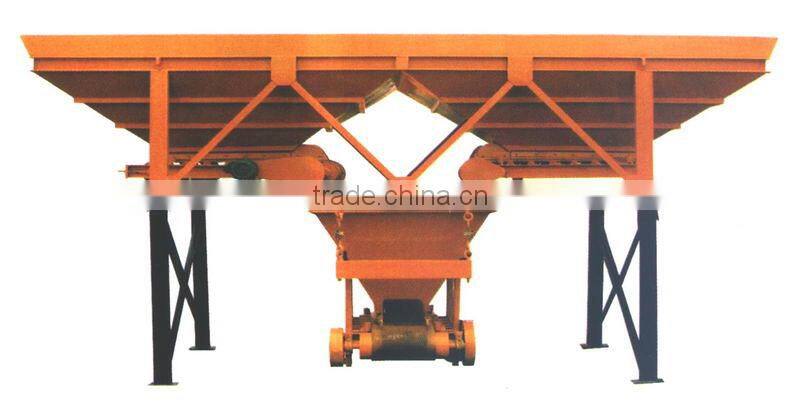

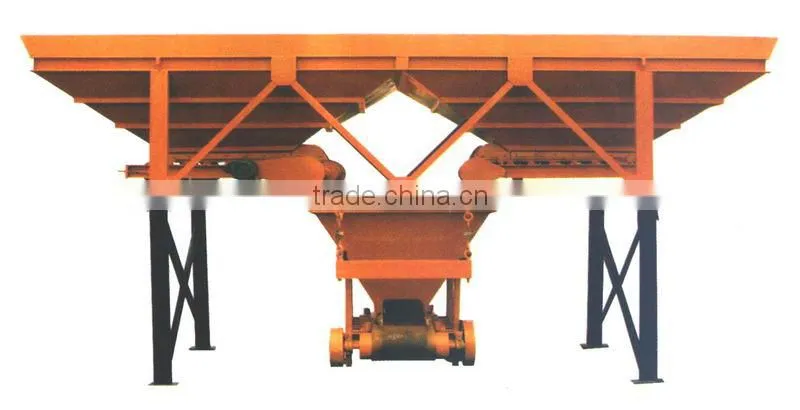

PLD 800 Batching Machine

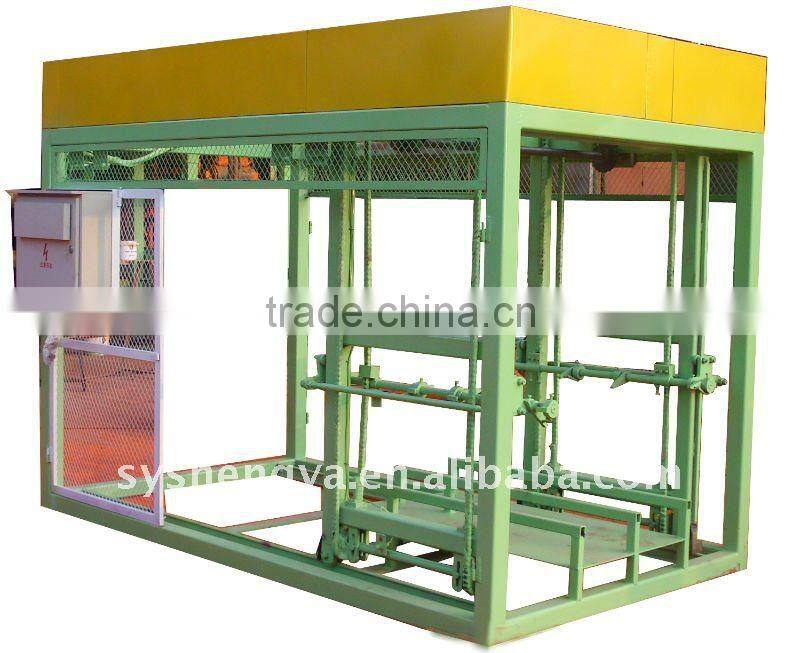

Automatic Stacker:

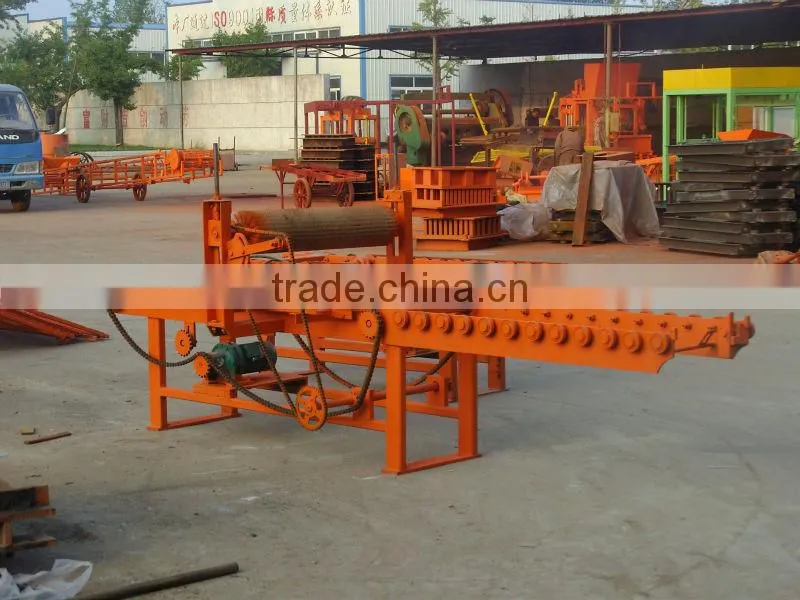

Block Transferring Machine:

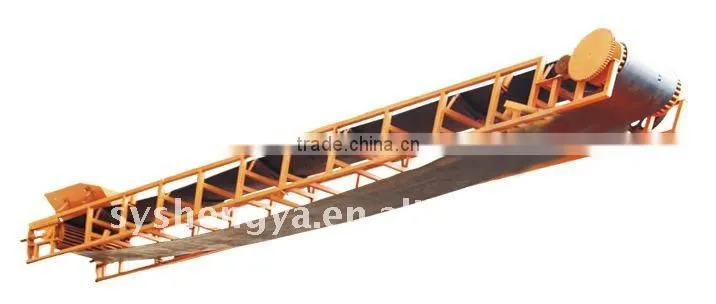

Conveyor:

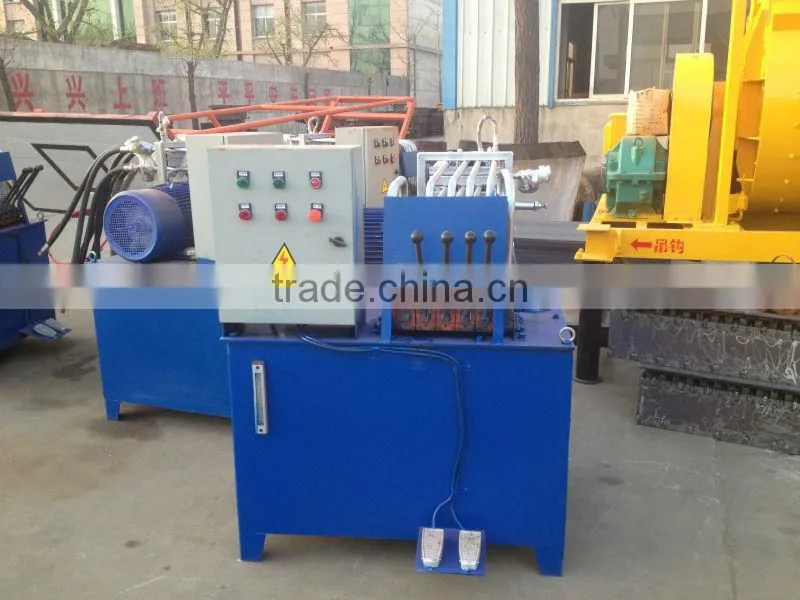

Hydraulic Station:

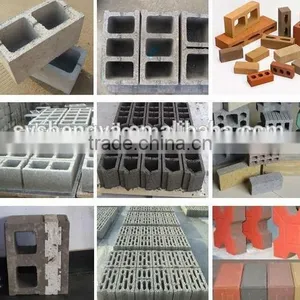

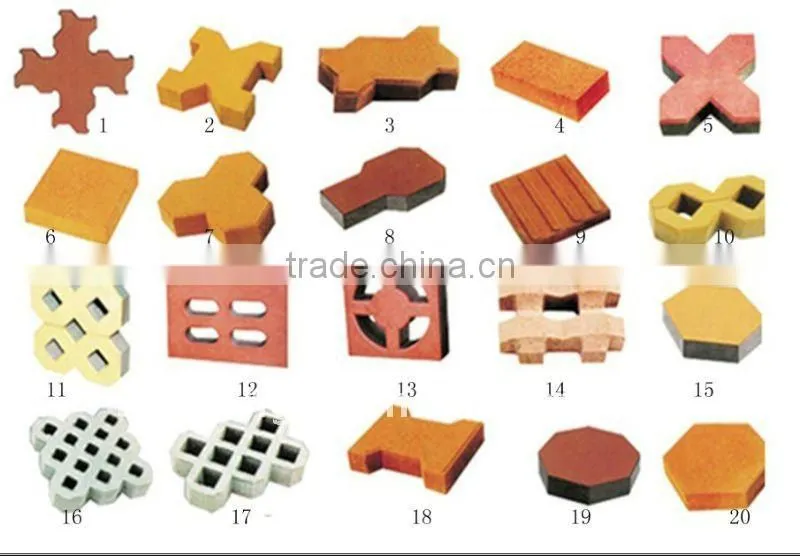

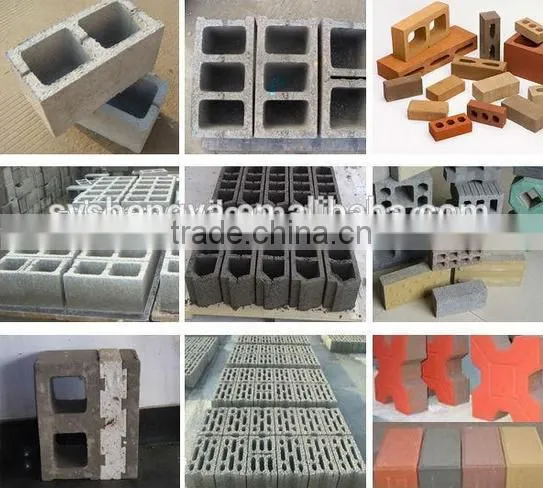

blocks&moulds:
Company Introduction
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7.Kinshasa in DR. Cango
Quality Guarantee
Our worker will test the machine for making blocks before we sent it out,So please rest assure.
Aftersale Services:
Selling is only the beginning of our service,
1,our good after-sale service would provide our customer with both the technology and the skills.
2, our overseas technicians would be there to help installation and teach the using method.
3, we could provide the manual brochure if needed.
Any question with the machine,please feel free to contact:
Nicole Yau
whatsapp:18816786369
QQ&Wechat:458317491
skype:nicole31795
