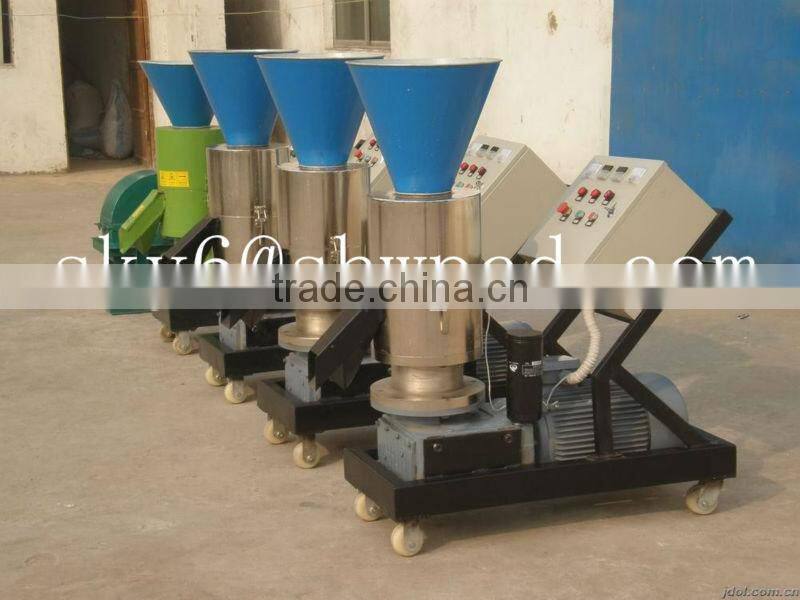

Flat-die wood and forage pellet making machine
Brief Introduction:
The raw material for this machine can be the food grain like corn, wheat and the crushed waste from agriculture for example, corn straw, groundnut shell, grass, wheat bran, sawdust, and animal manure and so on, they can be pressed into both feedstuffs for many kinds of animals and biomass fuel, the diameter of the pellet can be 2-12 mm, when processing ,the lower temperature can maintain the nutrition of the products. And through general extrusion, it can kill micro-organisms, parasites to prevent disease and to store it easily.
Working Principle:
Series of flat die pellet feed machine is a machine based on circular movements, motor-driven, driven pulley to the spindle and the flat transmission mode, under the influence of the friction, pressure roller rotation, the pressure roller and laminated create friction between the temperature, powder material by high temperature gelatinization and protein coagulation degeneration, in the squeeze roller, the discharge from the die hole, through the adjustment of the cutter can be the required length of particles in the feed tray will be made by the rejection of particles by the discharge port discharge.
Type |
Power |
Capacity (kg/h ) |
Dimension (mm) |
weight(kg) |
KL 120B |
3kw |
75-100 |
750*320*510 |
100 |
KL150B |
4kw |
100-150 |
750*350*650 |
120 |
KL 200B |
7.5KW |
200-300 |
1000*430*950 |
230 |
KL 230B |
11KW |
300-400 |
1140*470*970 |
320 |
KL 260B |
15KW |
400-600 |
1200*500*1070 |
360 |
KL 300B |
22KW |
600-700 |
1270*520*1070 |
370 |
KL 360 |
22KW |
700-800 |
1270*520*1070 |
450 |
KL400 |
30KW |
800-1000 |
1470*600*1150 |
500 |
