Help CenterGood Quality ! Coil Winding / Wire Twisting Machine Resistance Wire Coiling Machine Copper Wire Coil Winding Machine
Related Products
-
Good Quality Resistance Wire Coiling Machine Coil Winding / Wire Twisting Machine Copper Wire Coil Winding MachineUS$ 2,300 - 3,000MOQ: 1 Set -
Good Quality ! Resistance Wire Coil Machine Copper Wire Coil Machine Cable Wire Coil MachineUS$ 2,300 - 3,000MOQ: 1 Set
-
Good Quality ! Automatic Copper Wire Coil Winding Machine Wire Rope Coiling Machine Copper Wire Coil Wrapping MachineUS$ 2,300 - 3,000MOQ: 1 Set
-
Good Quality ! Wire Rope Coiling Machine Automatic Copper Wire Coil Winding Machine Copper Wire Coil Wrapping MachineUS$ 2,300 - 3,000MOQ: 1 Set
-
Hot ! LAN Cable Coiling Machine Power Cable Coiling Machine Wire Cable Coiling Machine Automatic Cable Coiling Machine PriceUS$ 2,300 - 3,200MOQ: 1 Set
Wire rope coiling machine Resistance wire coiling machine Copper wire coil winding machine Coil winding / wire twisting machine
Technical parameters
Model |
HL-800 |
Wire rage |
0.8-12 mm square |
Pay off plate size |
Outside diameter:800mm Inside diameter:80mm Width:450mm |
Pay off way |
Automatic tension way |
Wire arrange way |
Automatic arrange wire |
Main rotary speed |
0-360r/min(adjustable) |
Coil part plate size |
Outside diameter less than:400mm Inside diameter less than:120mm Width of plate:30-100mm |
Coil plate channel |
3 channels |
Power |
5HP(3.7kw) |
Capacity |
400 plate per 8hours |
Wire/cable rage |
Wire /cable:0.5 mm2-6 mm2 |
||
Pay-off reel diameter |
≤φ630mm |
Binding wire slot qty |
3 slot |
Binding wire inner diameter |
Φ120mm φ130mm-φ180mm |
Pay-off way |
Automatic tension way |
|
Binding wire outer diameter |
≤φ320mm |
Main shaft rotary speed |
0-800r/min adjustable |
Measure way |
Data measure |
Wire arrange way |
Automatic arrange |
KG1600 wire /cable Coil winding machine | |||
Wire/cable rage |
Wire :10 mm2-75 mm2 Cable outside diameter:18mm |
||
Pay-off reel diameter |
≤φ1600mm |
Binding wire slot qty |
3 slot |
Binding wire inner diameter |
φ200mm-φ300mm |
Pay-off way |
Automatic tension way |
|
Binding wire outer diameter |
≤φ700mm |
Main shaft rotary speed |
0-250r/min |
Binding wire height |
100mm-200mm |
Motor power |
4KW |
KG1600 wire /cable Coil winding machine | |||
Wire/cable rage |
Wire :10 mm2-75 mm2 Cable outside diameter:18mm |
||
Pay-off reel diameter |
≤φ1600mm |
Binding wire slot qty |
3 slot |
Binding wire inner diameter |
φ200mm-φ300mm |
Pay-off way |
Automatic tension way |
|
Binding wire outer diameter |
≤φ700mm |
Main shaft rotary speed |
0-250r/min |
Binding wire height |
100mm-200mm |
Motor power |
4KW |
KG1250 wire /cable Coil winding machine | |||
Wire/cable rage |
Wire :10 mm2-75 mm2 Cable outside diameter:18mm |
||
Pay-off reel diameter |
≤φ1250mm |
Binding wire slot qty |
3 slot |
Binding wire inner diameter |
φ200mm-φ250mm |
Pay-off way |
Automatic tension way |
|
Binding wire outer diameter |
≤φ700mm |
Main shaft rotary speed |
0-250r/min |
Binding wire height |
70mm-150mm |
Motor power |
4KW |

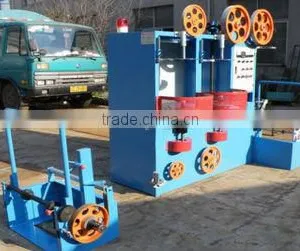

Here are some pictures of Resistance wire coiling machine :
If you are interested in this Resistance wire coiling machine ,please feel free to contact Phyllis zhang,it is an pleasure to cooperate with you.
TEL:0086 15939029164
