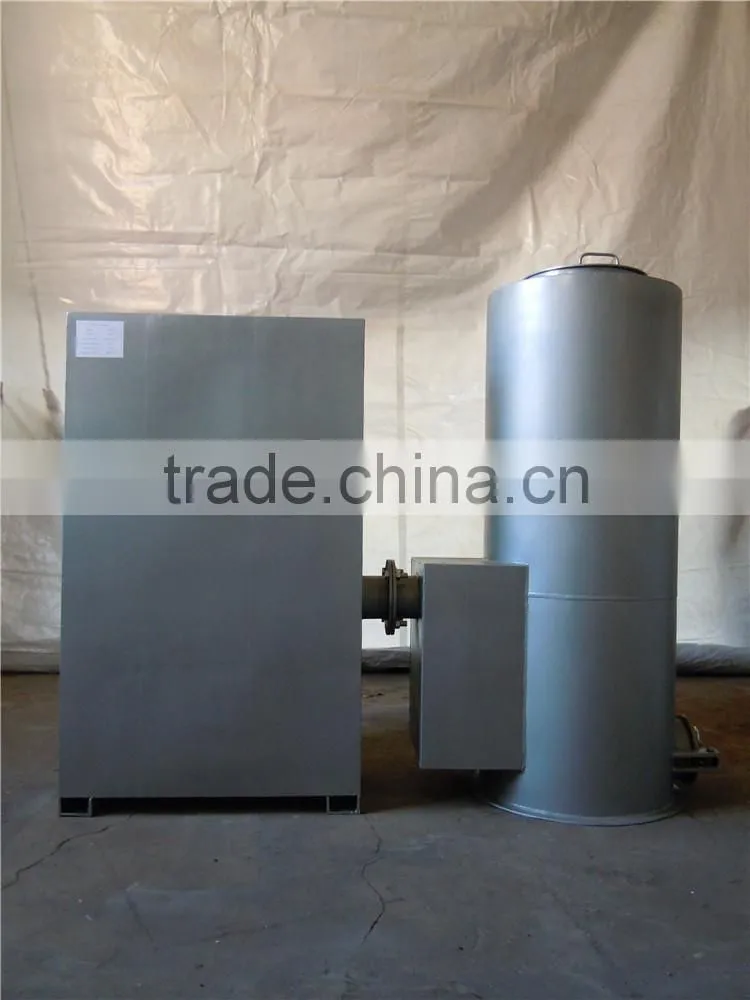

biomass gasifier price|gasifier machine
Gasification principle:
The technology of down draught stalk gasification is a technology that converts biological materials
such as straw into energy by a highpressure exhaust fan in a high temperature state. Straw is
mainly composed of carbon, hydrogen, oxygen and ash. When these elements meet in a controlled
high temperature state, they combine together to be carbon monoxide, hydrogen gas, and methane.
These are all burnable gas. The process in which biological materials converts into burnable gas is
named gasifying process.
The principle of gasifying process: biological materials enter combustor, and undergo heat drying.
As the temperature increases, the volatile is separated out and split. After splitting, the gas and
carbon meet supplied air in the oxidation area and combustion takes place. The combustion results
in CO ,CO2 and vapor. The heat from combustion is utilized to maintain dryness, splitting reaction
and endothermic reaction of the underneath reversion area. The gas resulted from the combustion
goes through the reversion area and reacts with carbon layer(C+CO2=2CO,C+HO2=H2+CO),
which produces burnable gas consisting of CO,H2,CH4,CmHn. The burnable gases are separated
from impurities such as tar, and are output from the bottom ready for use. The ash is discharged
from the bottom of the gasifier.

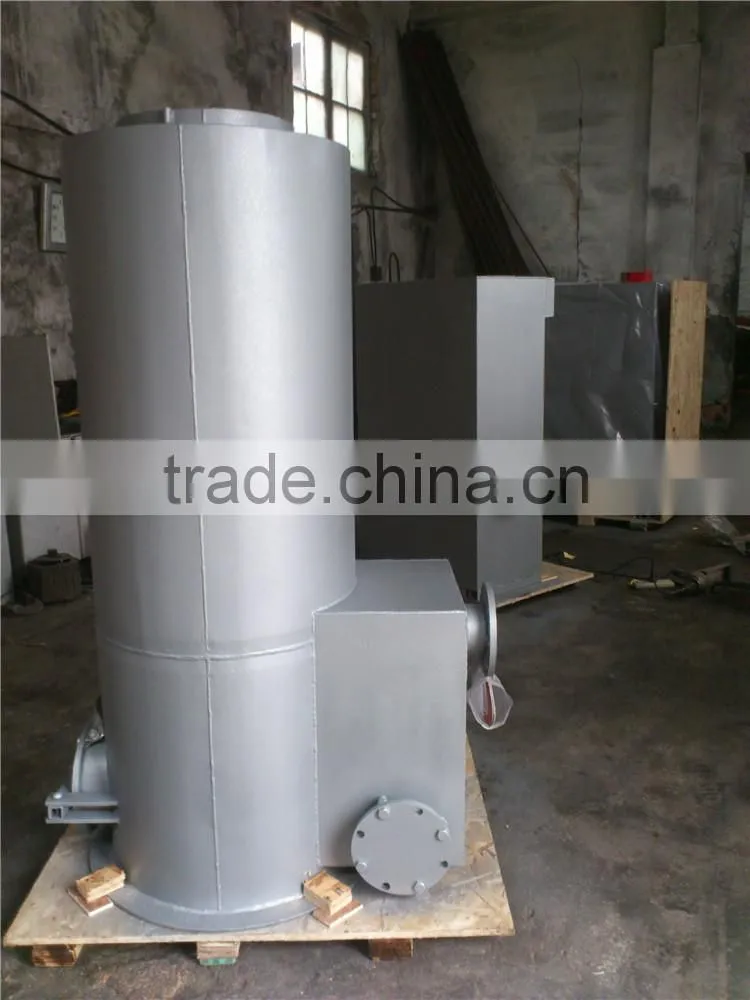

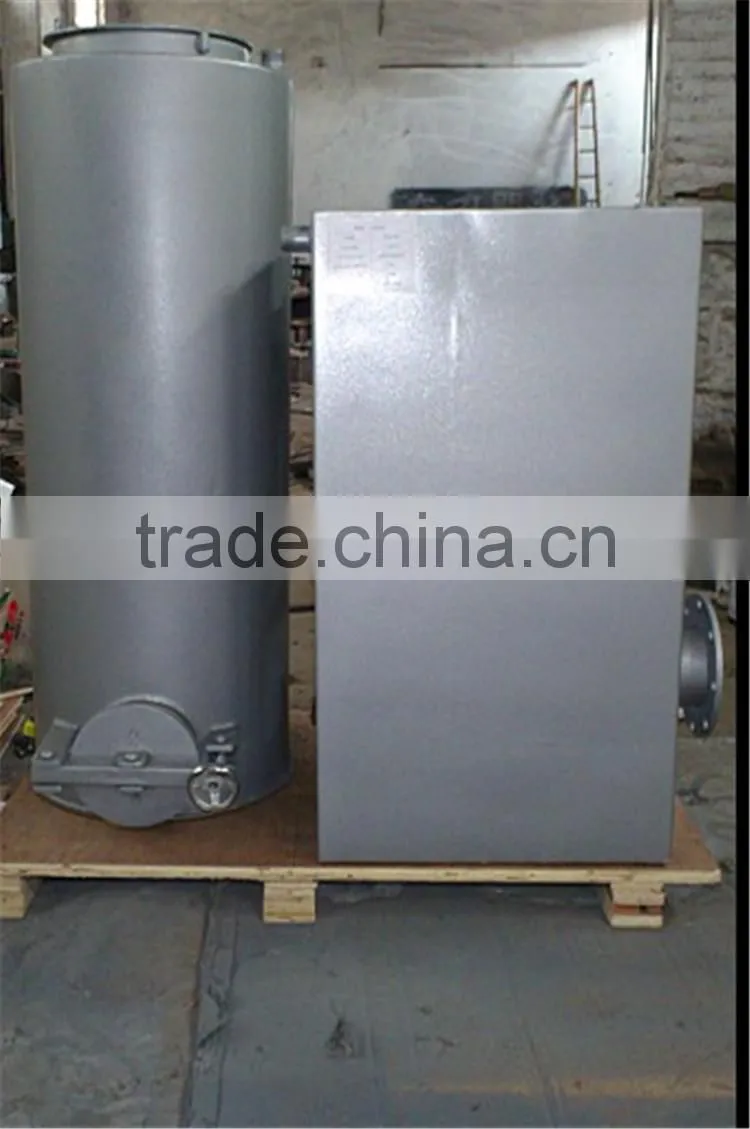

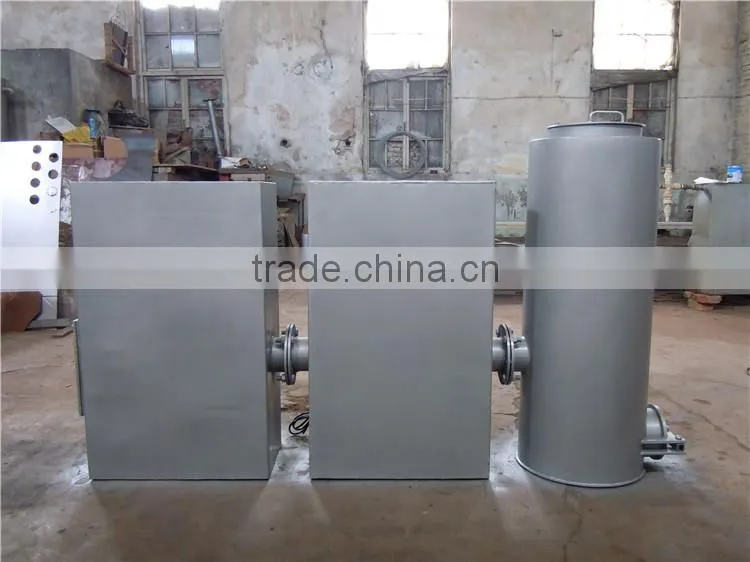

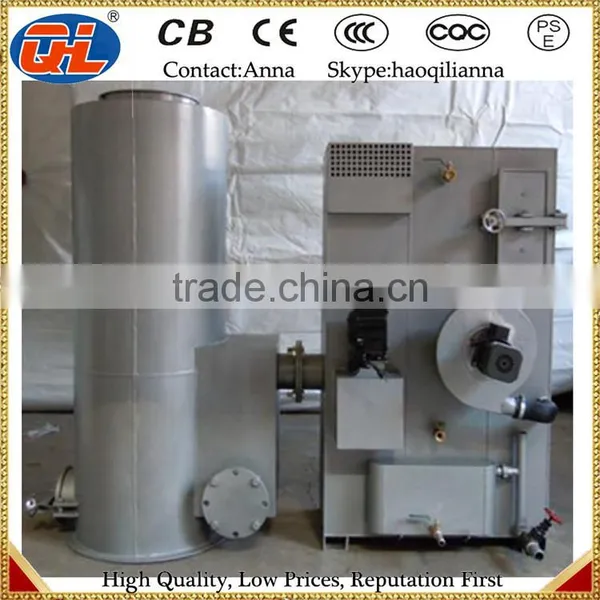

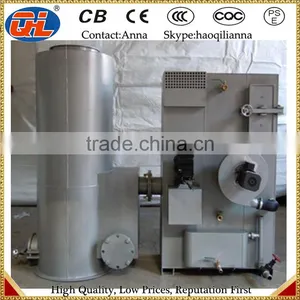

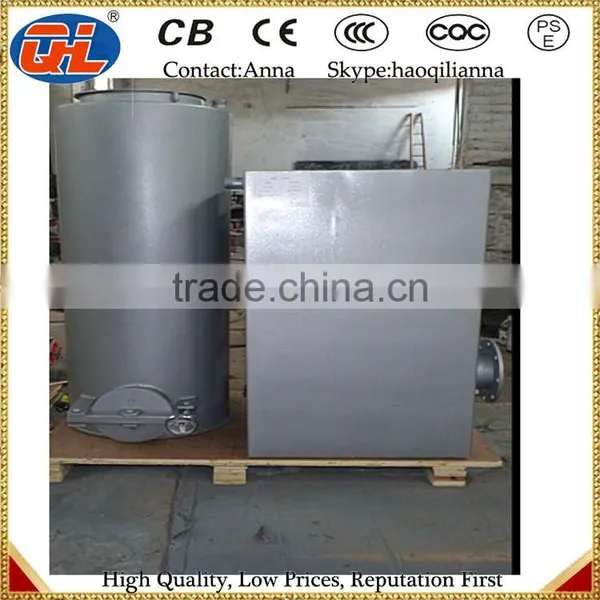

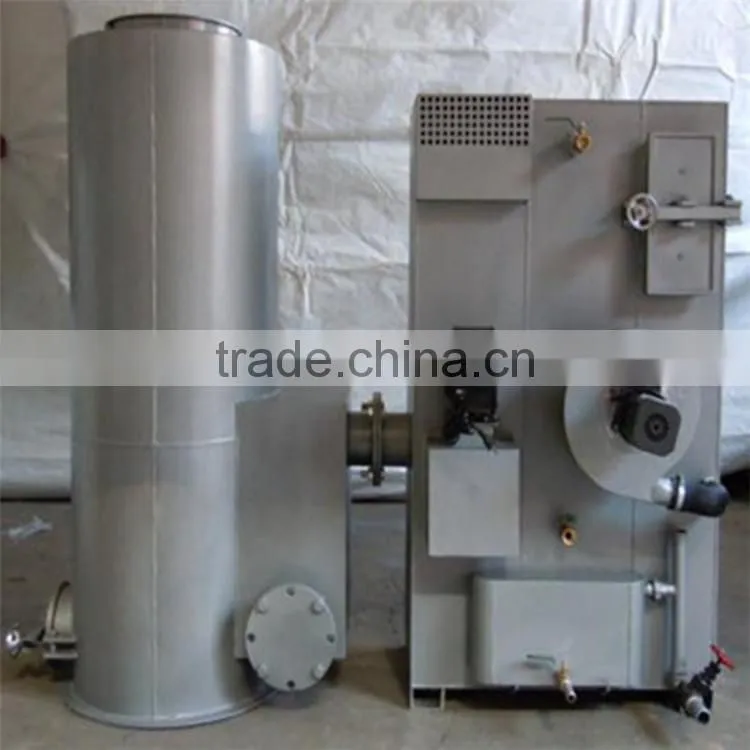

HQLQH Biomass gasifier( FIXED BED TYPE):
This machine has no smoke and tar taste when working, can feed in raw material continuously. It can
supply gas with high quality for generator set, boiler, fan heater, drying machinery, etc.
Model |
Gas output |
Gas calorific value |
Efficiency of gasification |
Draught fan Power |
Material amount |
Weight |
dimension |
HQLQH-4-10 |
5-10 m3/h |
4600-5200 KJ/m3 |
>72% |
220V/ 50Hz |
3-5 Kg/h |
200 kg |
1.2*0.5*1.2m |

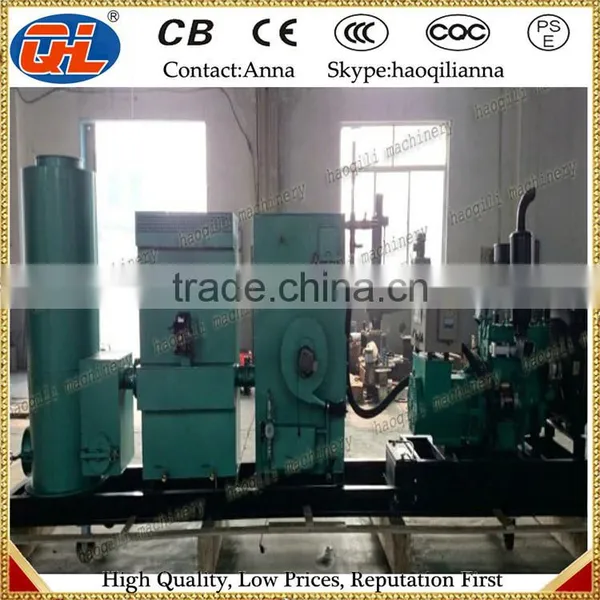

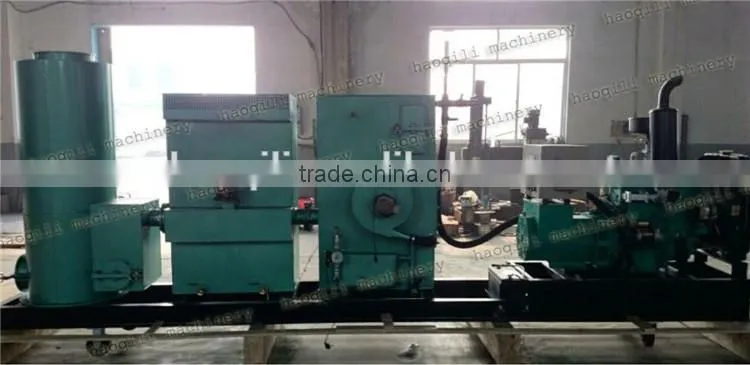

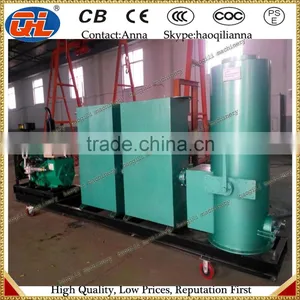

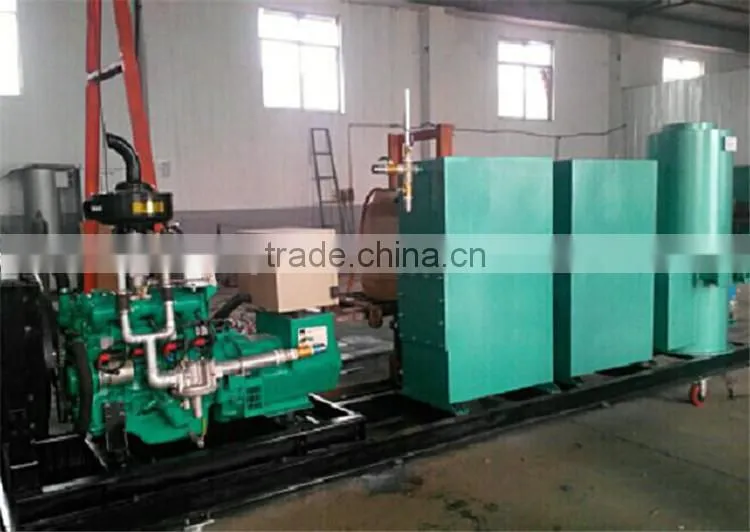

HQL-4-A series biomass gasifier( FIXED BED TYPE):
This machine has no smoke and tar taste when working, can feed in raw material continuously. It can
supply gas with high quality for generator set, boiler, fan heater, drying machinery, etc. HQL-4-A
series biomass gasifier is the improment of SLKX type, after improving, the biomass gasifier
can generate 3-10kw electric.
Technical parameter:
Model |
Gas output |
Gas calorific value |
Efficiency of gasification |
Draught fan Power |
Material amount |
Weight |
dimension |
Generate electricity |
HQLQH-10A |
5-10 m3/h |
4600- 5200 KJ/m3 |
>72% |
220V/50Hz |
3-5 Kg/h |
450 kg |
1.6*0.8*1.2m |
3kw |
HQLQH-20A |
15-20 m3/h |
4600- 5200 KJ/m3 |
>72% |
220V/50Hz |
8-10 Kg/h |
650 kg |
1.8*0.8*1.4 |
5-7kw |
HQLQH-30A |
25-30 m3/h |
4600- 5200 KJ/m3 |
>72% |
220V/50Hz |
15-18 Kg/h |
800 kg |
2*0.8*1.4 |
8-10kw |
If you like our product, contact with me.
