Competitive Factory Price !!! LPG Gas Steam Boiler

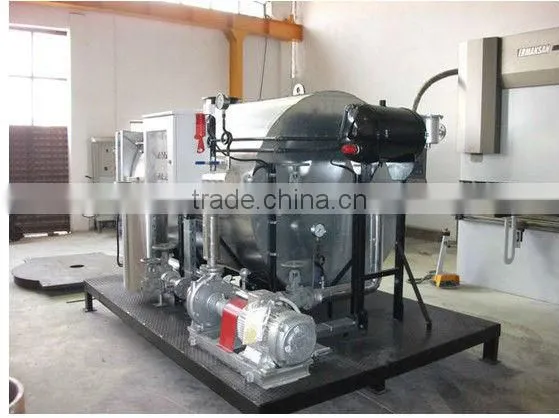

Competitive Factory Price !!! LPG Gas Steam Boiler photo-1
US$ 3,200 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure Low Pressure
Style Horizontal
Fuel Gas-fired
Place of Origin Henan, China
Brand Name GOLE
Output Steam
Certification CE,SGS,ISO

Specifications

Competitive Factory Price !!! LPG Gas Steam Boiler
One-grade dust filtering
2.High heat transfer boiler
3.Special designing

Competitive Factory Price !!! LPG Gas Steam Boiler



 This series boiler adopts vertical through flow and three-pass furnace.



2. The burner is down-fired type. The flame can completely spread fro the top down to make burning full. The gas need to make a three-return heat transfer, so the heat loss will be reduced and the thermal efficiency will be higher.



3. At the same time, this series boiler have the controller protection device, and contact device to automatic recovery prevent to get an electric shock, through the exhaust thermal protection device, strengthen the safety and function.



Model

Items

LSS0.03-0.4-Y/Q

LSS0.05-0.7-Y/Q

LSS0.1-0.7-Y/Q

LSS0.2-0.7-Y/Q

LSS0.3-0.7-Y/Q

Boiler horsepower

1.9 HP

3.2 HP

6.4 HP

12.8 HP

19 HP

Rated steam output

30 KG/HOUR

50 KG/HOUR

100 KG/HOUR

200 KG/HOUR

300 KG/HOUR

Maximum working pressure

(manual reset)

<0.4MPa / 58PSI

<0.7MPa / 102PSI

<0.7MPa / 102PSI

<0.7MPa / 102PSI

<0.7MPa / 102PSI

Saturated steam temperature

<140°C

<172°C

<172°C

<172°C

<172°C

Material of main body

20# carbon steel

20# carbon steel

20# carbon steel

20# carbon steel

20# carbon steel

Thickness of main body

6mm

8mm

8mm

10mm

10mm

Thermal efficiency

>89%

>89%

>89%

>89%

>89%

Fuel consumption

0# diesel

2kg/h

3.4kg/h

6.8kg/h

13.6kg/h

20.2kg/h

Natural gas

2.4Nm3/h

4Nm3/h

8Nm3/h

16Nm3/h

24Nm3/h

LPG

1.6kg/h

2.7kg/h

5.4kg/h

10.8kg/h

16kg/h

Dimensions after installation

Φ

780mm

820mm

980mm

1050mm

1050mm

H

1150mm

1290mm

1810mm

1990mm

1990mm

Packing dimensions

L

650mm

900mm

890mm

950mm

950mm

W

850mm

770mm

1050mm

1050mm

1050mm

H

1150mm

1300mm

1700mm

1940mm

1940mm



Competitive Factory Price !!! LPG Gas Steam Boiler
