Specifications

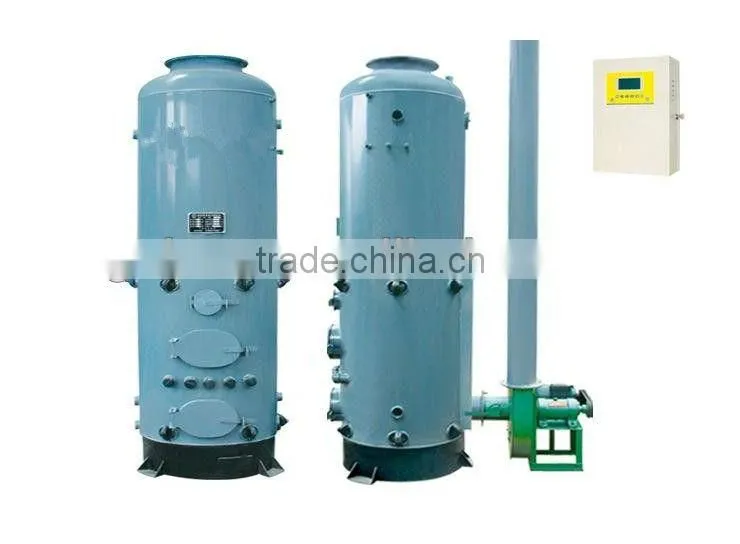

working simple vertical water tube boiler1,Compact structure, small installation area,2,easy to install.
3,Good heating

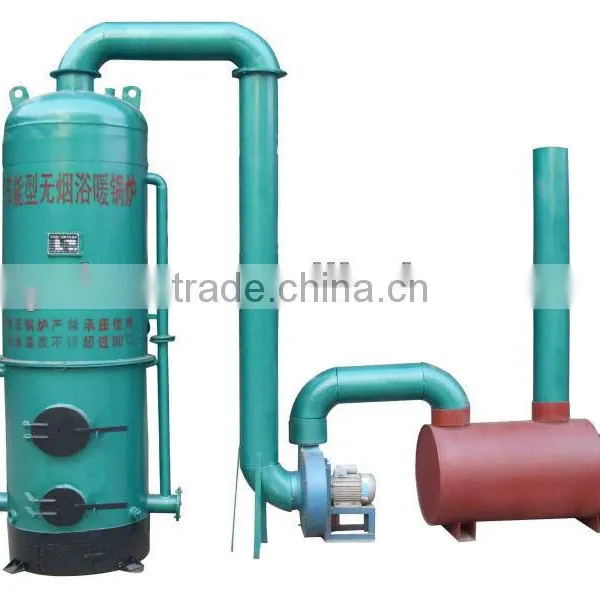

good quality small Coal Fired Vertical Steam Boiler
|
Model Item |
LSC0.04- 0.4-AII
|
LSC0.1- 0.4-AII |
LSC0.15- 0.4-AII |
LSC0.2- 0.4-AII |
LSC0.3- 0.4-AII |
LSC0.5- 0.4-AII |
LSC0.7- 0.4-AII |
LSC1.0- 0.4-AII |
Rated Capacity T/h |
0.04 |
0.1 |
0.15 |
0.2 |
0.3 |
0.5 |
0.7 |
1.0 |
Rated Working Pressure |
0.4 Mpa |
|||||||
Rated Steam Temp. °C |
151.85 |
|||||||
Feed Water Temp. °C |
20 |
|
|
|
||||
Heating Surface m² |
1.6 |
3.8 |
6 |
9.2 |
12 |
21.1 |
28 |
36 |
Grate Area m² |
0.096 |
Up 0.1 Down0.14 |
Up 0.2 Down0.28 |
Up 0.45 Down0.5 |
Up 0.57 Down0.78 |
Up 0.95 Down1.13 |
Up 0.95 Down1.13 |
Up 0.85 Down1.13 |
Water Capacity T |
0.17 |
0.32 |
0.56 |
0.88 |
1.5 |
2.3 |
2.8 |
3.3 |
Design Fuel |
Bituminous Coal |
|||||||
Fuel Consumption Kg/H |
7 |
|
25 |
32 |
48 |
72 |
100 |
145 |
Thermal Efficiency % |
|
69 |
69 |
69 |
69 |
71 |
72 |
72 |
Heating Area m² |
|
|
930 |
1260 |
1890 |
3150 |
4420 |
6200 |
Bathe Person |
|
|
200 |
300 |
400 |
500~700 |
800~1000 |
1200~1500 |
Specification mm x mm |
Ø 512x 1670 |
Ø 612x 2430 |
Ø 812x 2940 |
Ø1012x 3320 |
Ø1112x 3470 |
Ø1316x 4050 |
Ø1516x 4100 |
Ø1616x 4570 |
Boiler Weight T |
0.265 |
0.727 |
1.36 |
1.818 |
2.16 |
3.2 |
3.4 |
4.9 |
Chimney Height mm |
3000 |
8000 |
12000 |
14000 |
14000 |
16000 |
16000 |
18000 |
Ringelmann shade |
< Grade 1 |
|||||||
