Small Mini Hand Bottle Filling Machine
- 80 Set / Sets per Month
- Shanghai Port
- T/T L/C Credit Card PayPal
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Apparel, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Cartons |
Packaging Material: | Metal, Paper, Plastic, Wood | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 40W | Brand Name: | Jie Swisu |
Model Number: | CLB Series | Dimension(L*W*H): | 410*330*270mm | Weight: | 10KG |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Small Mini Hand Bottle Filling Machine
Liquid Filling Machine Introduction:
1)The gear pump is driven by magnetic power,the pump head and the motor is connect without shaft.So there’s no need to worry about the burnout of the motor because of the high load of the pump.
2)Pump head and motor is imported from Japan,other components are manufactured in Taiwan,the function is steady and useful life is long.
3)Pumper head is made from 316L stainless steel,acid alkaline, corrosion-resistant.
4)The motor run is adjusted by potentiometer,the degree of accuracy of filling time can be lower
0.01 second,so that can guarantee the filling accurately,the deviation is under 2%.
5)Filling capacity is from 5ml-any volume according to your need.
6)Fully functional,can be operated by hand,intermittent pedal filling,automatic intermittent filling.Intermittent time can be adjusted.
7)Wide application,almost can be used to filling any flow liquid,especially suitable for oil,washing fluid,Acid base solution,,High corrosion resistance liquid.
8)There are 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for filling according to reality.
Liquid Filling Machine Features:
1)Adopts world-famous frequency conversion controller and imported high-precision multi-circle potentiometer & lockable dial, which makes the flow stable and accurate with a tolerance of -+2%
2) imported magnetic 316L stainless steel gear pump, with reliable quality and longevity
3) small size, easy to operate; convenient for cleaning and sterilizing
4) full function, automatic or semi-automatic available; can be used in production line
5) can be equipped with flexible filling nozzles; normally equipped with single nozzle or double nozzles
6) can fill most types of liquids such as oil, beverage, perfume, water, ink, etc
7) large filling range from 5ml to 10000ml, can be conveniently regulated
8) complete 304 stainless steel mold, which reveals elegant and natural
9) micro-computer control, digital display, clear and easy to use
Liquid Filling Machine Application :
1) can fill oil, juice, perfume, ink, water, etc for all containers such as bottles, jars, cans, etc
2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.
3) Apply for oil, washing liquid, acid liquid, liquid filling high etching solution , highly corrosive liquid.
Liquid Filling Machine Technical Parameter:
Model | CLB-1 | CLB-2 | CLB-4 |
Rated voltage | AC 220V | AC 220V | AC 220V |
Maximum Power | 40W | (40×2)W | (40×4)W |
Host weight | 10kg | 15kg | 25kg |
Error | ±1.5% | ±1.5% | ±1.5% |
Maximum flow / Single Pump | >1.44L/min | >1.44L/min | >1.44L/min |
Host size | 410×330×270(mm) | 510×330×270(mm) | 720×330×270(mm) |
Packing size | 600×470×365(mm) | 600×470×365(mm) | 810×470×365(mm) |

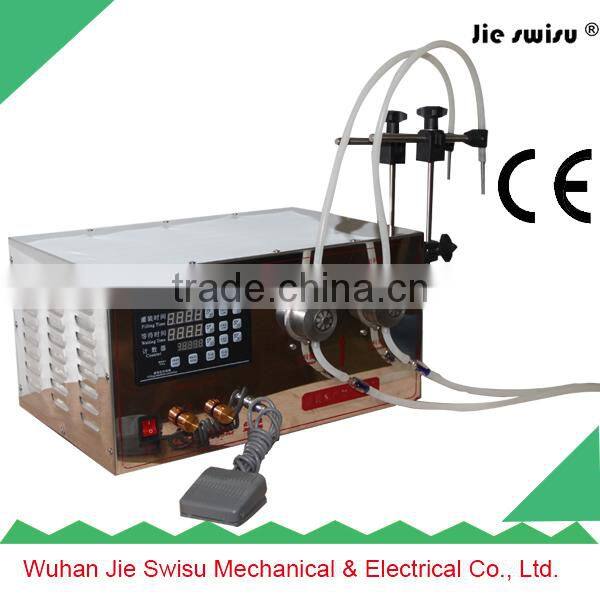

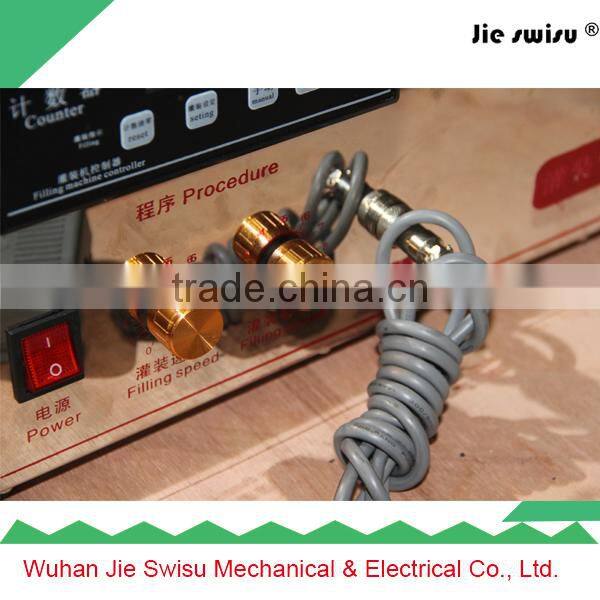

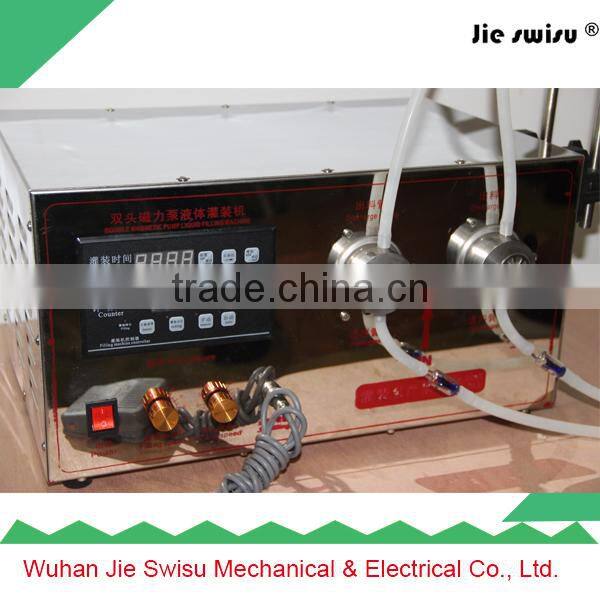

Detailed Pictures:
It can used for:
Packing pictures:
Office & Show room
