Edible Oil Filling Capping Machine
Feature of oil filling machine
1This type filling machine widely used in chemical industry, food, cosmetic, medicine, pesticide, lubricating oil industries such as paste, liquid filling.
2)Semi automatic type, rational design, small and exquisite,easy operation.
3)Made of 304 stainless steel of the contacting part, conformed to rules of GMP.
4)Both the filling quantity and filling rate can be arbitrarily adjusted with high accuracy.

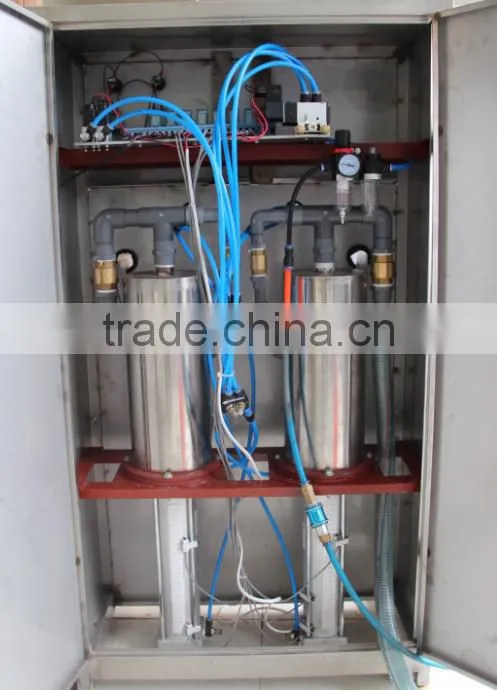

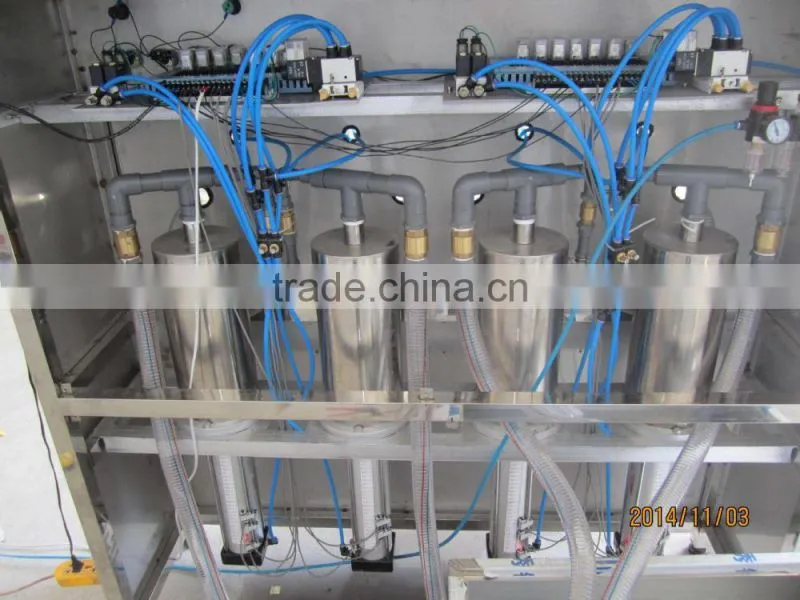

5It is consists of magnetic air cylinder, hydro cylinder, Electrical Controls component, simple structure, small occupy, easy to operate.
6It can fill oil quantitatively, the air cylinder drives piston of the oil cylinder and moves repetitively, it has advantage of high-precision adjustment.
Technical parameter of oil filling machine
Model |
CJ-D1-2 |
CJ-D1-4 |
Rated voltage |
AC 220V |
AC 220V |
Maximum Power |
400W |
800W |
Host weight |
95kg |
150kg |
Air souce |
0.4-0.6Mpa |
0.4-0.6Mpa |
Accuracy |
±1% |
±1% |
Filling quantity |
100-1000ml,200-2000ml,500-5000ml (choose one) |
|
size |
560mm*620mm*1220mm |
1120*620*1350mm |
Filling speed |
20-30bottle/minutes (small bottles) 10-20bottle/minutes(big bottles ) |
40-60bottle/minutes (small bottles) 20-40bottle/minutes(big bottles ) |

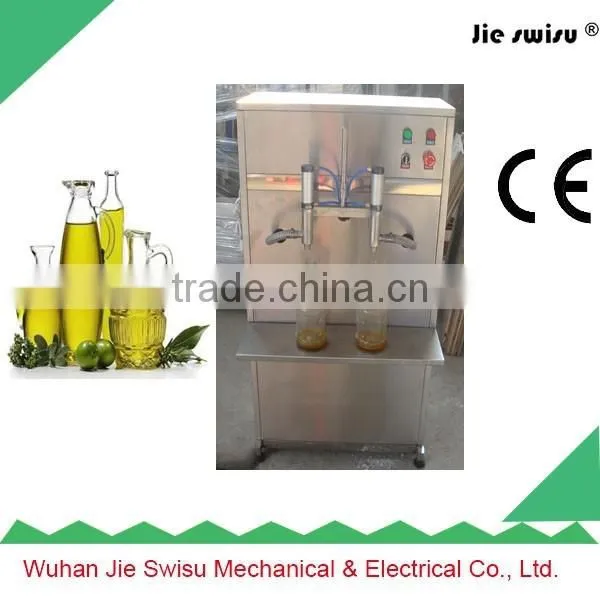

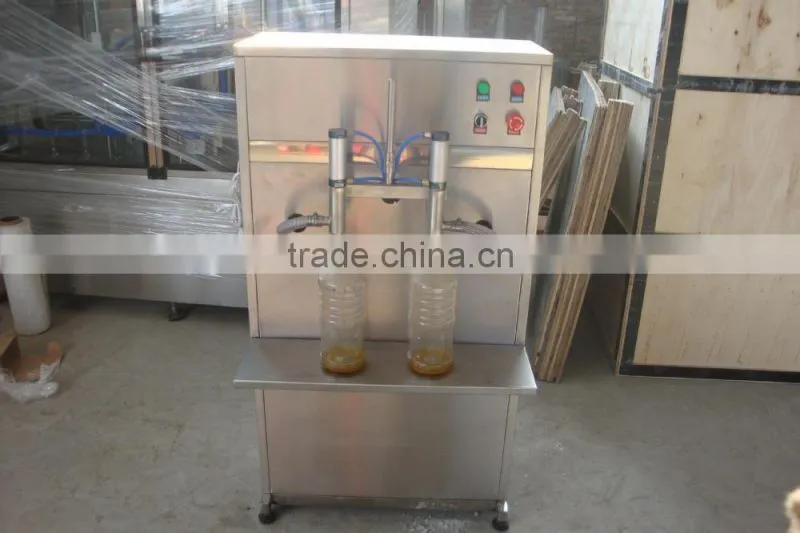

double filling nozzles of oil filling machine

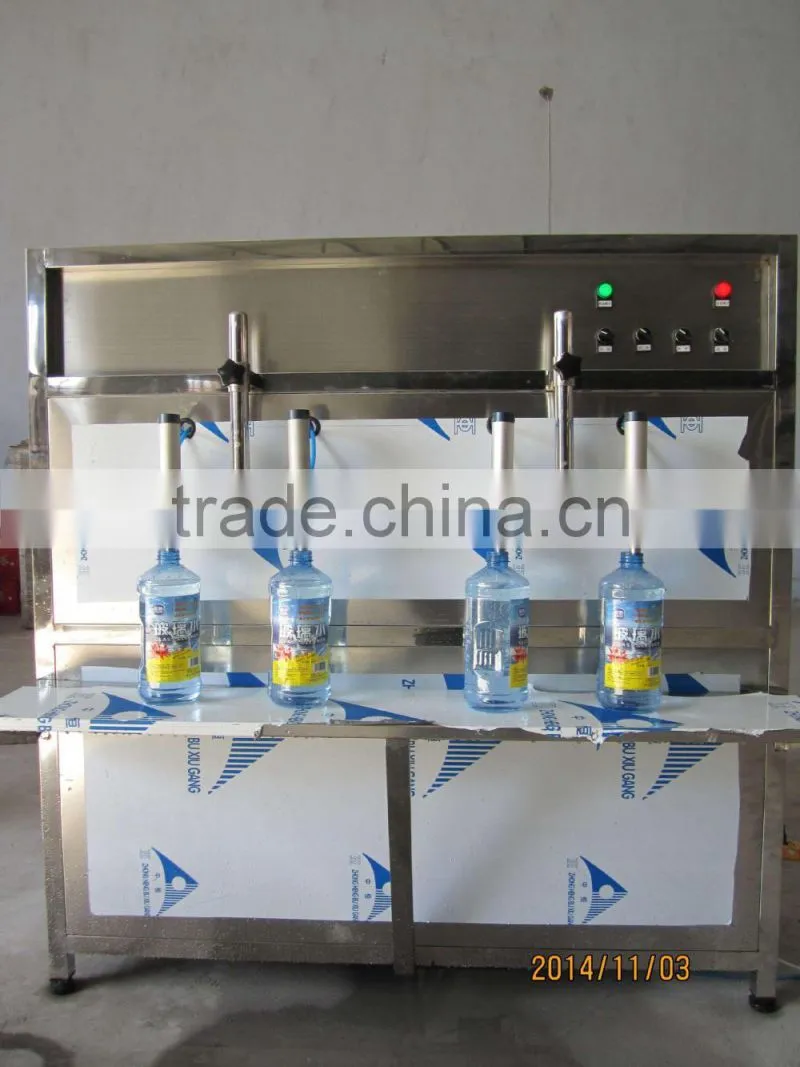

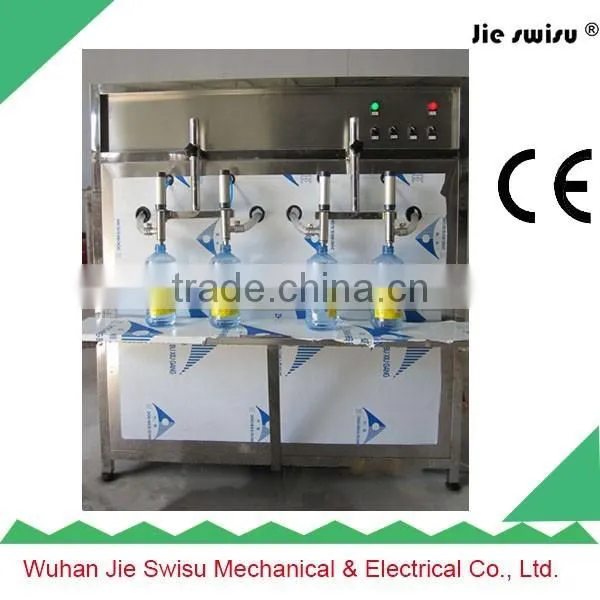

Four filling nozzles of oil filling machine

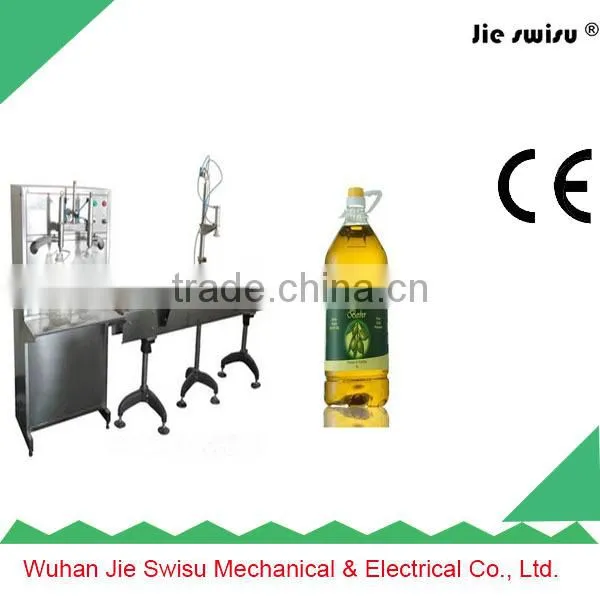

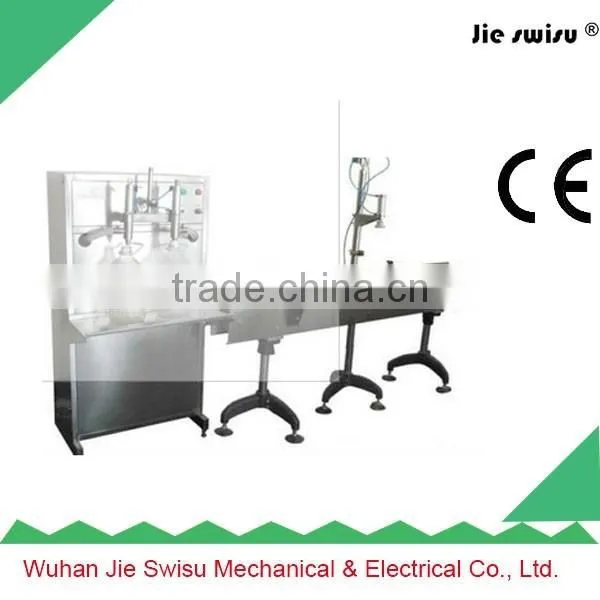

Filling and capping machine with 2m conveyor
