Food/Beverage Production Line1.PLC automatic control, Brand-name parts,
2.Experienced technical staff,
3.Guarantee/Warranty,
Food/Beverage Production Line
1.PLC automatic control, Brand-name parts,
2.Experienced technical staff,
3.Guarantee/Warranty,
|

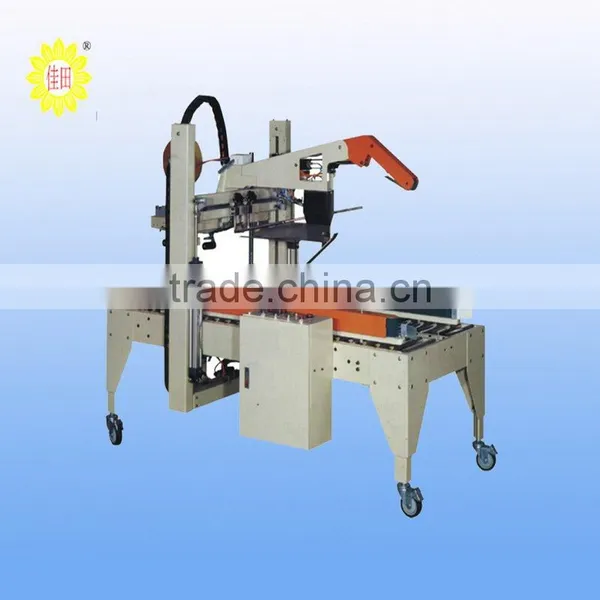

Automatic random flap folding and side driven carton sealer
(full auto carton flap folding sealer) | ||
Standard Specification | ||
Model |
JTI-09 |
|
Carton Size |
(L)200-600(W)150-500 (H)120-500mm |
|
Table Height |
Min 650 Max 800mm |
|
Working Speed |
750ctns/hr |
|
Machine Size |
(L)1700(W)910(H)1570mm |
|
Motor |
Taiwan Brand, CE certified. Total power is 360 W, |
|
Belt |
imported from Europe. |
|
Pneumatic component |
Taiwan AIRTAC |
|
|
Taiwan Shern Dian, Americas UL certified. |
|
PLC |
Japan |
|
sensor |
Japan Omron |
|
Contactor and Switch |
France Schneider |
|
Power |
110/220V single phase,50/60Hz or specified by client |
|
Pneumatic |
5kg/cm2 |
|
Tape Width |
48mm,60mm,75mm alternative use |
|
Machine Net Weight |
Approx.230kgs |
|
|
Continuous work 24 hours with trouble free per day Fully automatic adjustment on height and width for various sizes of cartons
Automatic flaps folding and top and bottom sealing
Safety guard for operator protection
Suitable for complex production line of converting carton size
| ||
