1.Character:
1) PLC checking function: through PLC online checking function to self-checking and alarm for running stoppage, and show the reason of stoppage in order that the operator remedy it in time.
2) Filling part within free static electricity system.

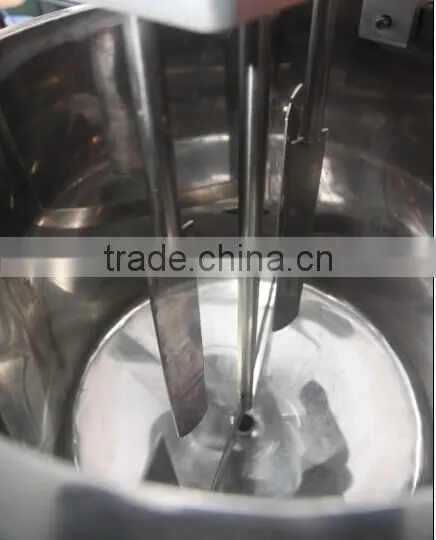

3) Agitation vat speed adjustment system
4) Cooling speed adjustment system
5) Cutting gains speed adjustment system
6) Notice: finished products can be set 4/5/6/7pcs. The machine can product PVC/PE
7) Meet cGMP
2. Specification and Main Parameters of Goods:
Model |
Unit |
HY-U Suppository Production Line |
Capacity |
PCS/Hour |
8000-12000 (depending on product) |
Total Power |
KW |
7.5Kw |
Voltage, frequency |
V |
3PH 380 +/-10% 50Hz |
Dose per unit |
ML |
0.5~5 (depending on product) |
Deviation |
% |
<±2 |

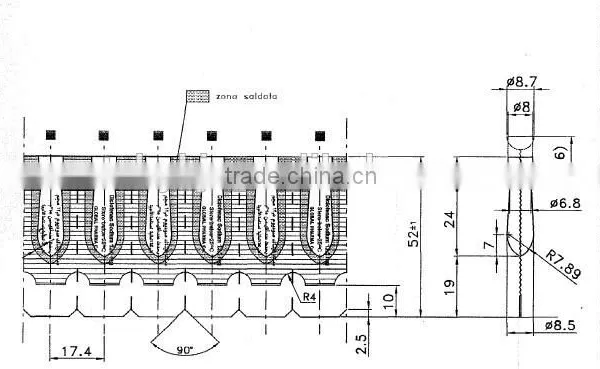

Suppository shape |
N/A |
Bullet, torpedo, duck-mouth ect (depending on product) |
Adapting |
N/A |
Fatty acid glycerin,gelatin,glycol,etc., (depending on product) |
Volume |
L |
50 |
Air pressure |
Mpa |
0.6 |
Air consumption |
m3 |
1.5 |
Water consumption |
N/A |
50kg per circle |
Total weight |
KG |
2000 |
Machine dimensions |
MM |
external: 3100*3480*2000 (L*W*H) |

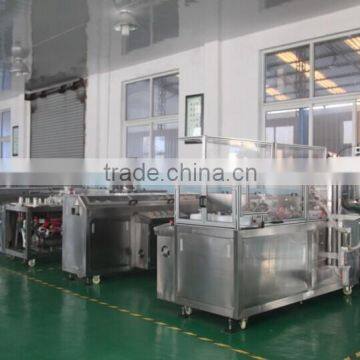

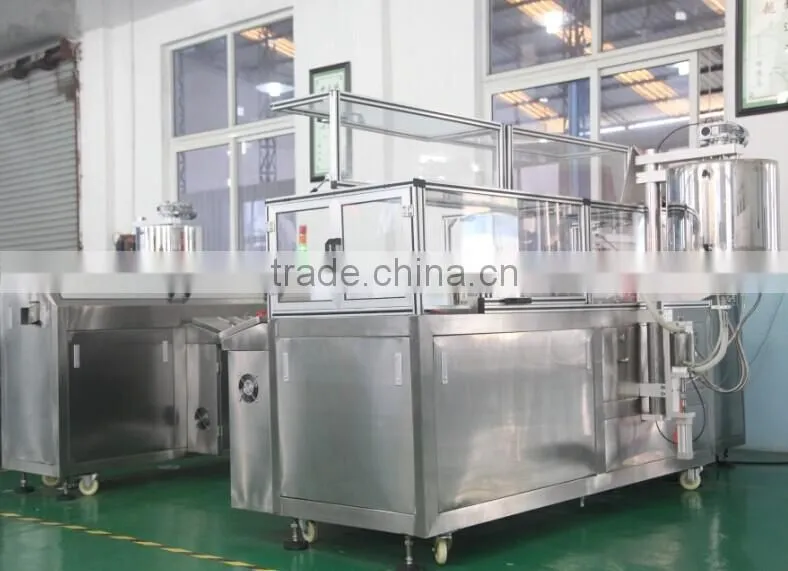

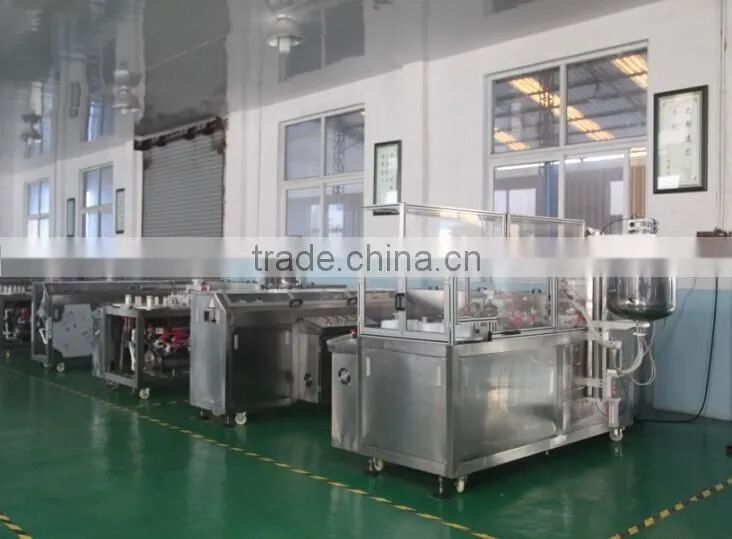

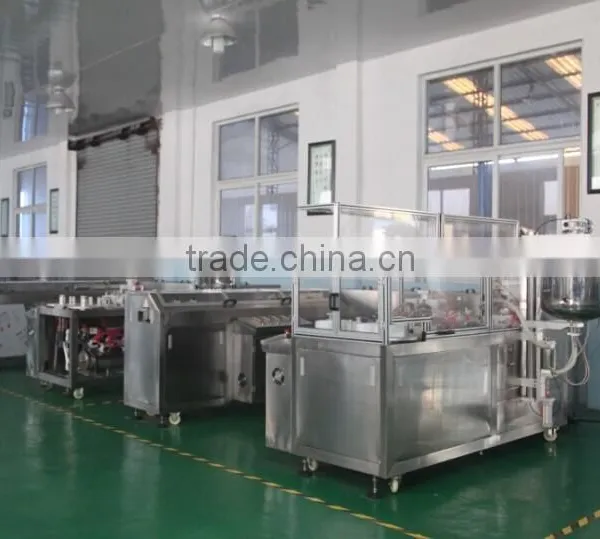

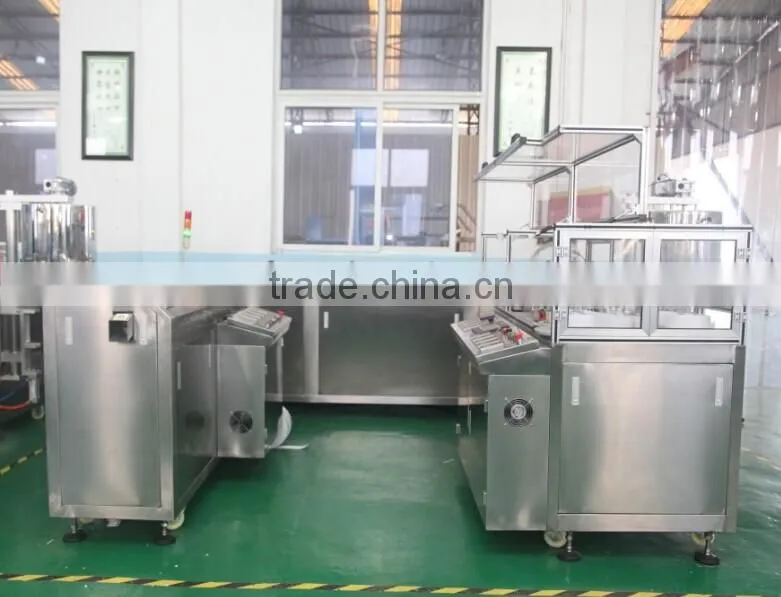

1)Machine installation

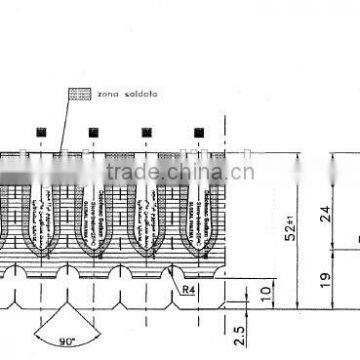

2)Shell making

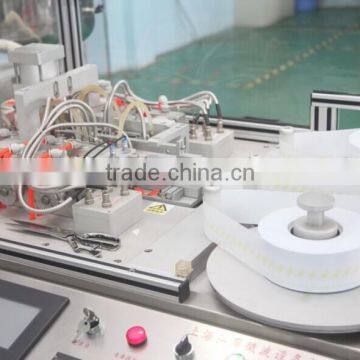

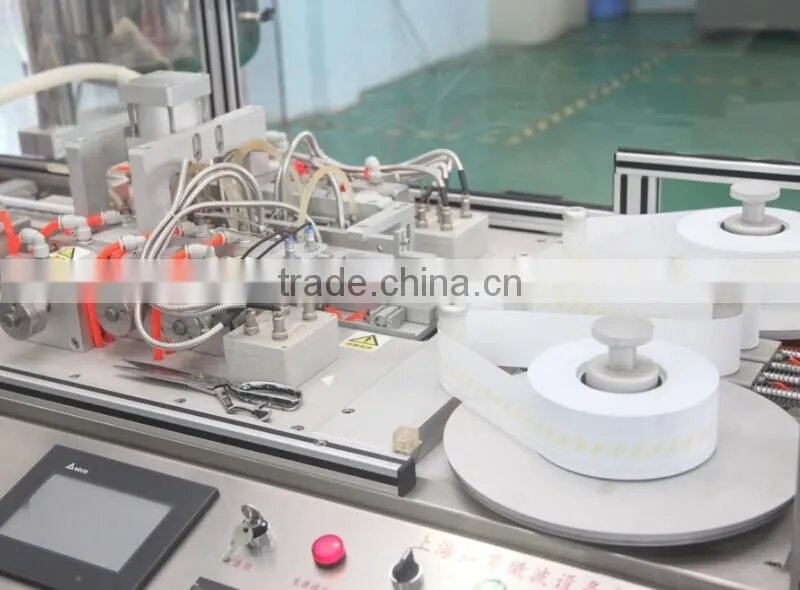

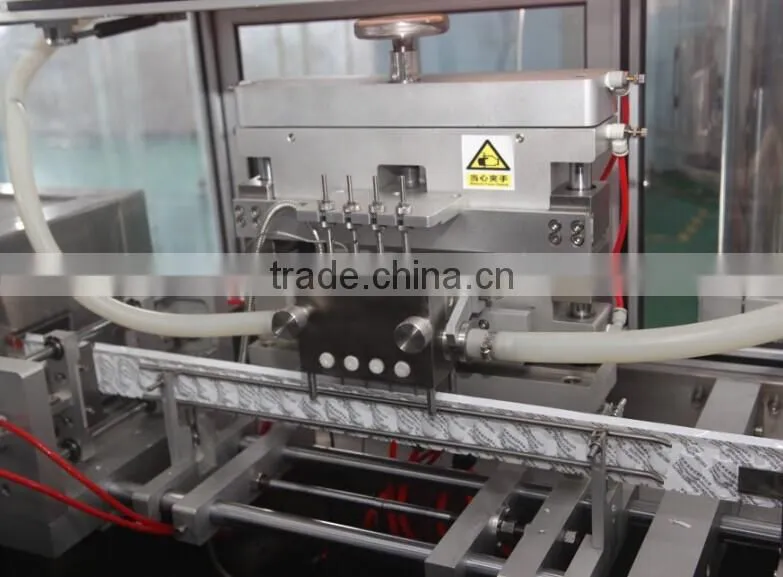

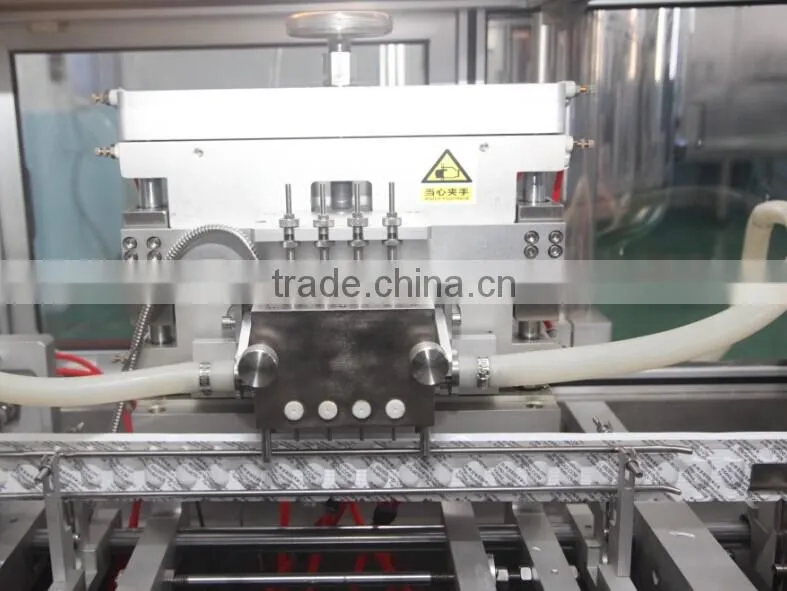

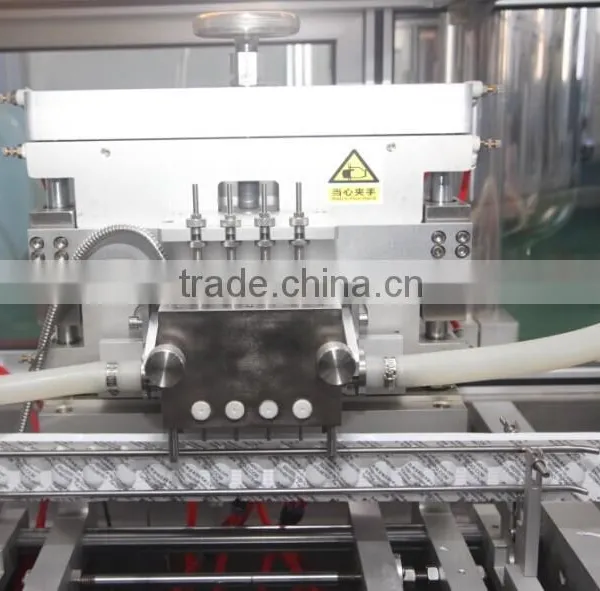

3)Filling system

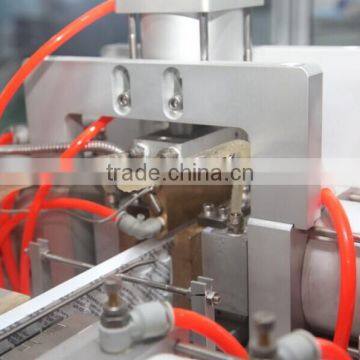

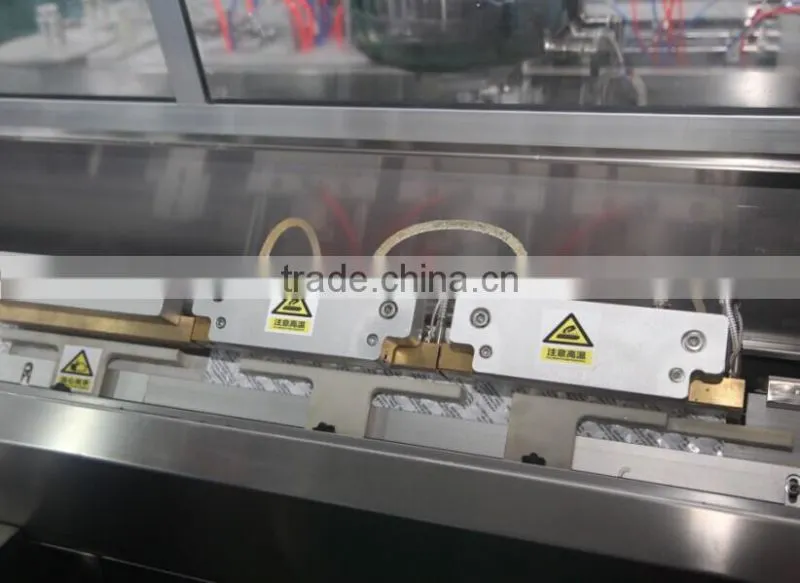

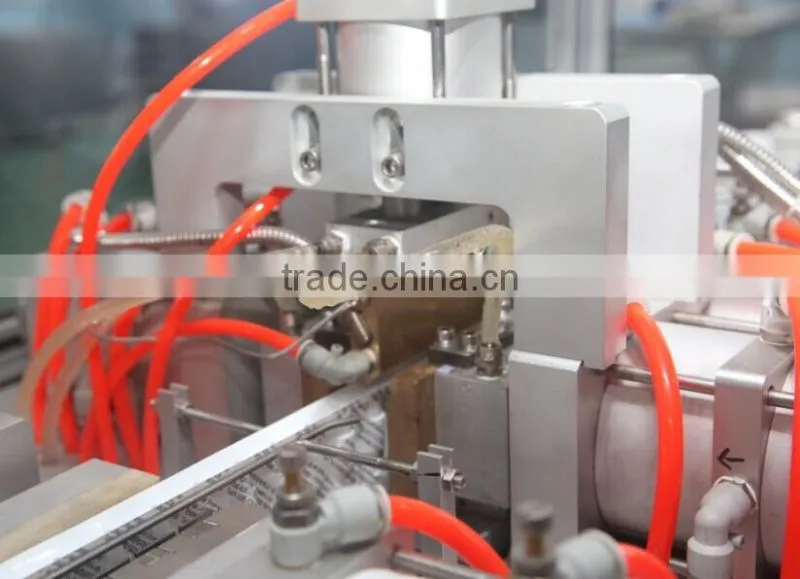

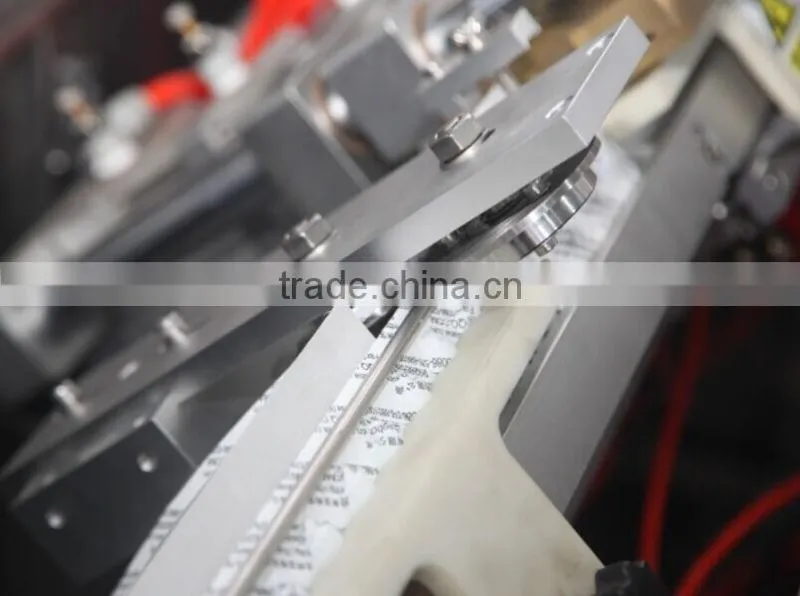

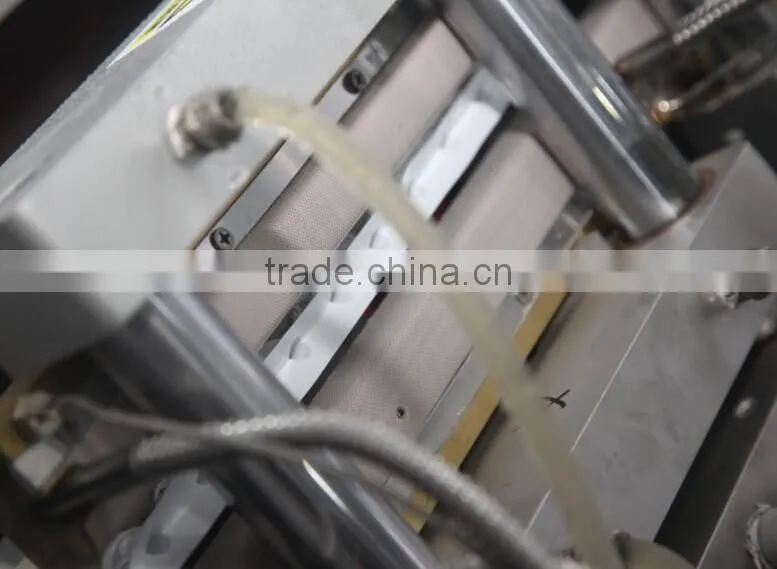

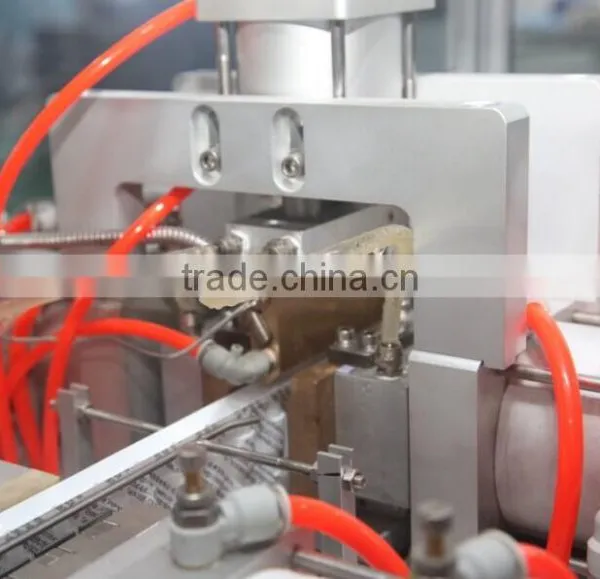

4)Sealing and cutting
