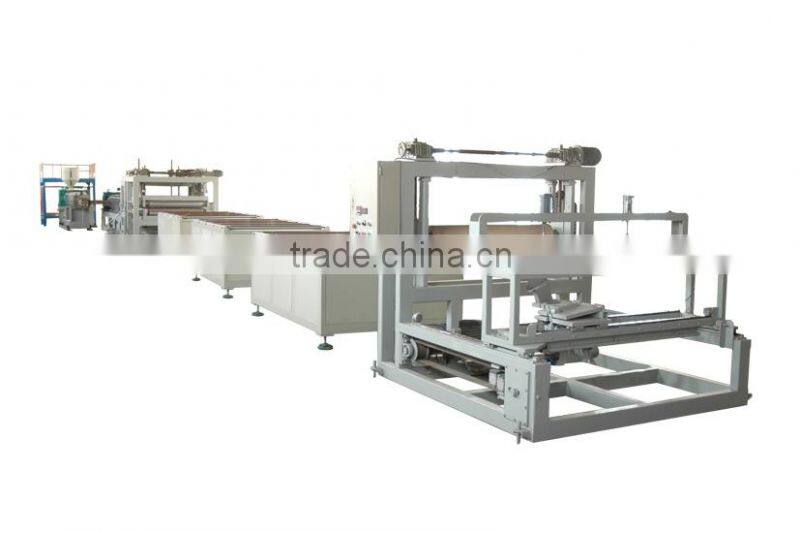

XPS Foam Board Planing Machine Manufacturer

Name: XPS Foam Board Planing Machine Manufacturer
Brand: TONGYI
SKU: 137242225
Availability: InStock

US$ 15,000 - 350,000 MOQ: 1 Set

Key Specifications

Condition:

New

Product Type:

Other, XPS

Place of Origin:

Shandong, China

Longkou Tongyi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Product Type Other, XPS

Place of Origin Shandong, China

Brand Name TONGYI

Model Number TYXPS-135/150

Voltage 380V

Power(W) 300KW

Dimension(L*W*H) 35000X10000X4000MM

Weight 28T

Certification CE

Specifications

XPS foam board planing machine
1. polystyrene foam board extrusion line
2. insulation board production line

automatic XPS Foam Board Planing Machine manufacturer

XPS foam board has the following functions:

1. For heat preservation of steel structure workshop, iron sheet house and colored ripple tile;

2. For making up the heat insulation board in the fridge ration storehouse for cold preservation and waterproof.

3. For laying the bedding under the road bed of the highway for buffering and controlling the frost heating of the ground;

4. For waterproofing and heat preservation of residential building, office building and the factory wall and roof;

5. For laying the bedding under the floor for the functions of heat insulation, dampproof, soundproof;

6. For heat insulation and heat preservation of the ventilation pipeline of central air conditioner

Main Technical parameters

Model	Unit	TYXPS-135/150		TYXPS-150/170		TYXPS-170/200
Extruder		135/150		150/170		170/200
Heating power	kw	50	52	58	68	78	100
Driving motor power	kw	75	90	90	110	110	132
Thickness of board	mm	20,25,30,40,50,60,75,80		20,25,30,40,50,60,75,100		40,50,60,75,100,120
Width of board	mm	600,900		600,900,1200		600,900,1200
Length of board	mm	1200,1250,2450,2500
Edge of board		SS flat head (SL lap joint, RC rain groove)
Output	kg/h	280-320		300-360		380-500
Installed capacity	kw	300		380		400
Dimensions(L×W×H)	mm	35000×10000×4000		35000×10000×4000		35000×10000×4000
Total weight	T	28		30		33
