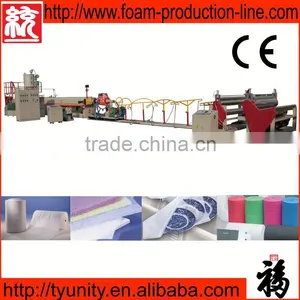

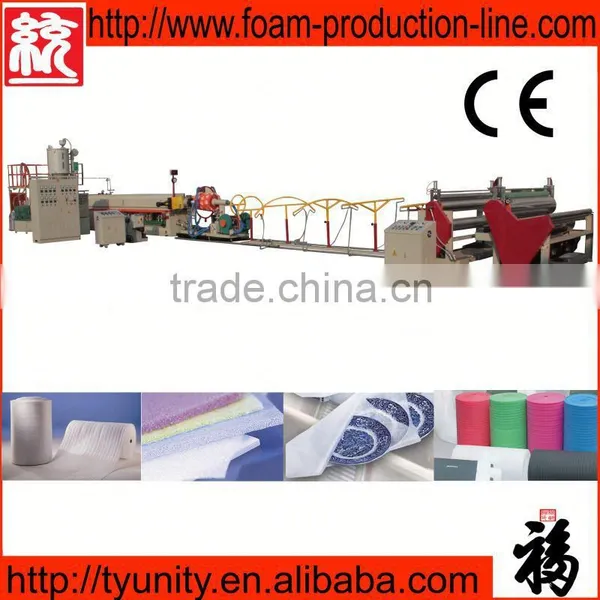

PE Foam Fruit Net Production Line (TYEPE-75)
- 100 Set / Sets per Month
- QINGDAO
- T/T
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Fast Food Box | Place of Origin: | Shandong, China |
Brand Name: | DEYI | Model Number: | DY-1040 | Voltage: | 380V |
Power(W): | 168KW | Dimension(L*W*H): | 24X4.1X2.8 | Weight: | 16T |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
pe foam fruit net production line1.make different types products: foam tray/box/container..
2.30 years history
3.CE
PE Foam Fruit Net Production Line (TYEPE-75)
Machine Instruction
The PS food container machine mainly including three main parts:
1. PS foam sheet extruder: make PS foam sheet from raw material
2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)
3. Plastic recycle machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again
PE Foam Fruit Net Production Line (TYEPE-75)
A. PS Foam Sheet Extruder
PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.
Applications:
1. Character of Products
-- Glossy surface
-- Excellent Cushioning and Insulation Effect
-- Moisture-proof
-- Anti-corrosion with chemicals
-- Printable, foldable, embossable, moisture and water resistant, low steam and air permeability
-- Tasteless, Odorless and Non-toxic
2. Applications of Products
-- External packing material for food, fruit, cosmetics and internal cushioning
-- Packaging for high-grade goods, industrial machinery parts
-- Container for pharmaceutical and medical products
-- Various types of lunch boxes, trays and containers
-- Toy and educational materials due to easy-fabrication
-- Advertising and stationary board etc
Main Technical parameters
Model | Unit | PSP70/90 | PSP90/120 | PSP100/130 | PSP120/150 |
Extruder |
| 70/90 | 90/120 | 100/130 | 120/150 |
Foam rate |
| 10-20 | 10-20 | 10-20 | 10-20 |
Width of product | mm | 640-1040 | 640-1040 | 640-1040 | 640-1200 |
Cutting method |
| Single cutter | Double cutter | ||
Thickness of product | mm | 1.0-3.0 | 1.0-3.5 | 1.0-3.5 | 2.0-5.0 |
Cooling method |
| Cooled by wind and water | |||
Output | kg/h | 50-90 | 100-180 | 180-230 | 230-320 |
Installed power | kw | 120 | 150 | 180 | 260 |
Dimensions(L×W×H) | m | 26×4.0×2.8 | 30×4.1×2.8 | 36×4.2×3 | 38×4.2×3.2 |
Total weight | T | 10 | 12 | 15 | 18 |
B. Fully auto forming and cutting machine
Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.
Applications
-- Disposable material for lunch box, bowl, tray, plate etc.
-- Internal cushioning material for food, fruits and cosmetics
PE Foam Fruit Net Production Line (TYEPE-75)
Main Technical parameters
Model | Unit | TY-1040 |
Max. forming area | mm2 | 1000×1100 |
Max. forming depth | mm | 80 |
Production efficiency | s/die | 3 - 8 |
Forming pressure | T | 15 |
Mounted power | kw | 168 |
Total weight | T | 16 |
Installation size | m | 13×2×3.2 |
C. Plastic recycle machine
Plastic recycle and pelletizing machine is designed to reclaim the foamed polystyrene materials almost identically to new ones with its own superior filtering performance.
We specialize in making plastic machines for 30 years with advanced technology and have accumulated vast experience. Our machines are sold well in many countries such as England, Brazil, Portugal, India, Russia, Uzbekistan, Iran, Indonesia and so on. Sincerely hope to have chance to cooperate with you in near future.
