Specifications
Paper Egg Tray Machine make paper egg tray,paper egg box,etc,the raw material is waste paper,it is green packing.Paper Egg Tray Machine
Material--Pulper-- Pulp mixing--Forming--Drying-- Hot Press--Packing--Stock
Main equipment
1. Pulping system
Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc
2. Forming system
Consist of 1pc of forming platen and 1 pc of transfering platen.
Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.
Forming efficiency:5-6cycles/min;
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
3. Drying system
Outline dimension:20080x2650x3600mm;
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
4. Stacking system
The finished products will be counted and stacked automatically after drying.
Main introduction
1.Production line occupation: about 550M2 .Requirement for the workshop: height≥ 4.5M Width≥ 12M length≥ 45 M
2.Total power for the production line: 120kw
3.Workforce for the production line: 6-8 people/shift
4.Main parts adopted are with international brand which are reliable in quality and convenient in after sales service. And engergy saving is the most distinctive feature of SH equipments compared with congener equipments internationally.
5.All the water are recycled used in the production and the raw materials is waste paper, so the water should be changed in certain time. For the countries that lack of water, a water purifying system is recommended.
6.The supplier will be responsible for the instuction in installation, test running and training.warranty: one year since finishing the installation for free.
.
Consumption list for SH-1000A
SL |
DESC |
Consumption/hour |
remark |
1 |
waste paper |
75-80kg |
/ |
2 |
electricity |
90-95kw |
/ |
3 |
water |
0.5-1.0T |
/ |
4 |
0#diesel oil Natural gas LPG |
20-30kg 30-35 M3 20-30kg |
choose one |
5 |
chemical for water resistence |
0.5-1.0kg |
Solid content |
|
The calorific value of the fuel |
10000 carl/kg for diesel oil 8000carl/kg for natual gas 10000 carl/ kg for LPG |
Energy consumption calculation is based on these data.
|
|
warm remind:The equipments equiped in this production line are supposed to the production of 30-cell egg trays.If the users plan to produce egg cartons, cup carriers or fruit trays etc. They should add the hot pressing, labeling or printing equipment and other auxiliary equipments. The occuppation area, total power and workforce will be increased accordingly.
For further info, welcome to contact us anytime.

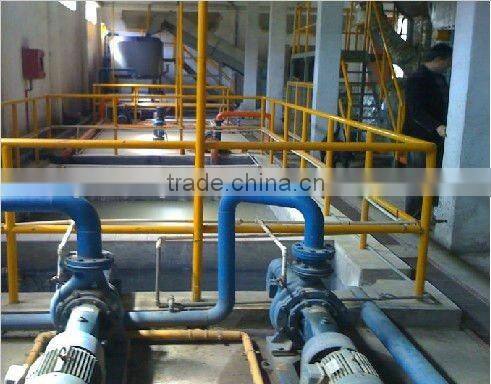

Pulping System

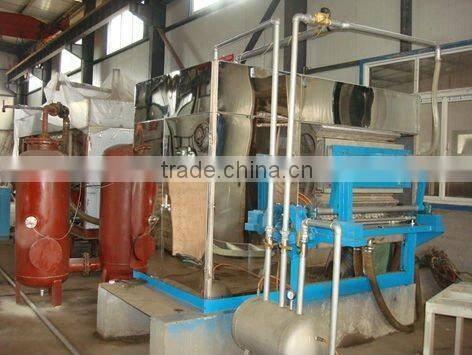

Newly designed egg tray forming machine

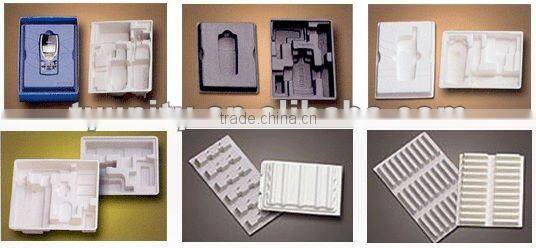

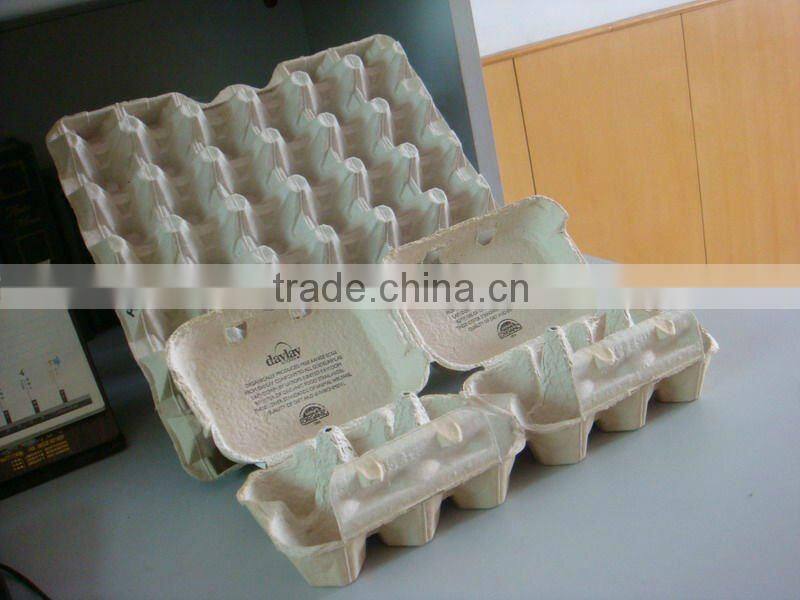

Paper products can be made by our machine
