Modular Stainless Steel Prismatic Water Tank Insulated Water Tanks Manufacturers Exporters Turkey Factory by ALDERA QUALITY

Modular Stainless Steel Prismatic Water Tank Insulated Water Tanks Manufacturers Exporters Turkey Factory by ALDERA QUALITY photo-1
Modular Stainless Steel Prismatic Water Tank Insulated Water Tanks Manufacturers Exporters Turkey Factory by ALDERA QUALITY photo-2
US$ 2 - 2 MOQ: 1 Twenty-Foot Container
Key Specifications
Get Latest Price
Place of Origin:
Mersin, Turkey
Brand Name:
ALDERA MODULAR WATER TANK
Model Number:
ALDERA LEADER
Payment & Shipping
Payment Methods:
Port of Shipment:
Mersin International Port TURKEY
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Mersin, Turkey
Brand Name ALDERA MODULAR WATER TANK
Model Number ALDERA LEADER
Product Description



MOUNTING DIMENSIONS

SIZE PEDESTAL

Width
(cm)
Length
(cm)
Height
(cm)
Capacities
(LT)

118

118

10,7

1.250

118

226

10,7

2.500

118

333

10,7

3.750

118

226

21,5

5.000

118

548

10,7

6.250

226

333

10,7

7.500

226

226

21,5

10.000

118

548

21,5

12.500

226

333

21,5

15.000

226

441

21,5

20.000

333

333

21,5

22.000

226

548

21,5

25.000

333

441

21,5

30.000

333

333

32,2

33.500

333

548

21,5

37.000

441

441

21,5

40.000

333

441

32,2

45.000

441

548

21,5

50.000

333

548

32,2

56.000

441

441

32,2

60.000

548

548

21,5

62.000

441

548

32,2

75.000

656

656

21,5

90.000

548

548

32,2

93.000

656

763

21,5

104.000

548

656

32,2

112.000

763

763

21,5

121.500

656

656

32,2

134.000

763

871

21,5

140.000

Width
(cm)
Length
(cm)
Height
(mm)
Capacities
(LT)

108

108

100

1.250

108

216

100

2.500

108

324

100

3.750

108

216

100

5.000

108

540

100

6.250

216

324

100

7.500

216

216

100

10.000

108

540

100

12.500

216

324

100

15.000

216

432

100

20.000

324

324

100

22.000

216

540

100

25.000

324

432

100

30.000

324

324

100

33.5000

324

540

100

37.000

432

432

100

40.000

324

432

100

45.000

432

540

100

50.000

324

540

100

56.000

432

432

100

60.000

540

540

100

62.000

432

540

100

75.000

648

648

100

90.000

540

540

100

93.000

648

756

100

104.000

540

648

100

112.000

756

756

100

121.500

648

648

100

134.000

756

864

100

140.000

 Please contact us for Larger Capacities.

 Please contact us for Larger Capacities.



Packaging & Shipping

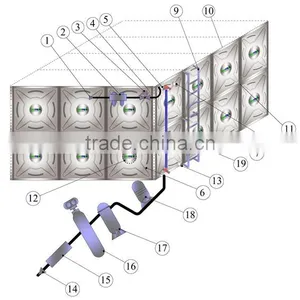

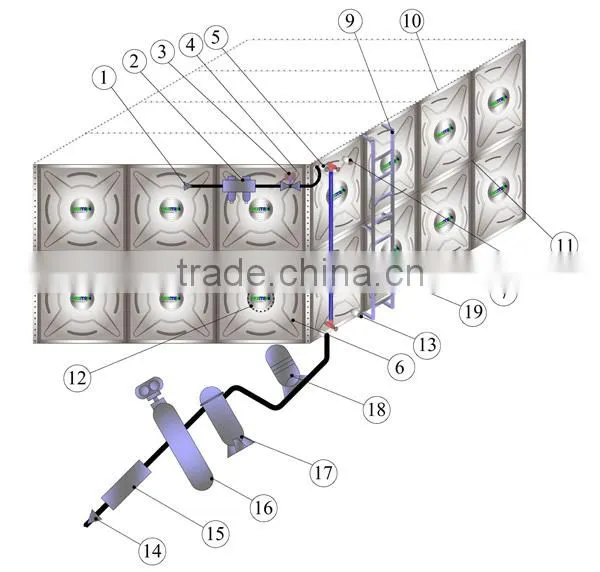

1. Water Supply Network Inlet
2. Sediment Filter

3. upon the desire;
a) Normal valve + water-gauge

b) Solenoidvalve (motor valve) high level electrode by remote control
4. High level electrode:when the warehouse is filled, it commands engine valve and close the valve.

5. Depot Upper Mendole Cover

6. Low Level Electrode :When the water is consumed, it stops hydrophore engine automatically. (never operates when it is empty).

7. Depot water level indicator

8. Outflow pipe


9. Ladder
10. Depot modules have connected each other by nut and bolt.

11. Rubber seal among modular with special silicone
12. Warehouse sub cover sealed and bolted

13. Depot Delivery Valve
14. Depot installation valve
15. U.V. Ultravioletdisinfection device
16. Water Softening Outlet. It purifies limes from galleons such as Ca and Mg.
17. Activecarbon unit:it purifies from harmful gasses such as chlorine etc. within the water.

18. Hydrophoremotor

19. Under depot concrete and steel ground.
