hot dip galvanized steel jis g3302 sgcc
Metal Building Materials
Standard we can provide: AISI ASTM BS DIN GB JIS
Grade : DC51D+Z
Zinc Coating:40g-275g/m2
Size we can provide:
Size Range: CRC substrate Thickness: 0.3-3.0mm
CRC substrate Width: 800-1830mm
HRC substrate Thickness:1.8-2.8mm
HRC substrate Width:800-1500mm
Chemical elements:
Grade |
Chemical composition % |
|||||||
|
C No more than |
Si No more than |
Mn No more than |
P No more than |
S No more than |
Alta No less than |
Ti No more than |
Nb No more than |
|
DC51D+Z,DC51D+ZF (St01Z,St02Z,St03Z) |
0.10 |
--- |
0.5 |
0.035 |
0.035 |
--- |
--- |
--- |
Mechanical properties:
| Grade | Mechanical properties | Plating adhesion | |||||||
| Yield strength MPA | Tensile strength Mpa |
N90 NO Less than |
R90 No Less than | Elongation% No less than |
Plating weight(g/m²) Bending diameter (a=thickness of slab) |
||||
|
Lo=80MM B=20MM | |||||||||
| Normal thickness mm | |||||||||
| ≤0.7 | >0.7 |
≤140 | >140/140~175/175 | >175/175 | |||||
|
DC51D+Z(ST01Z,ST02Z,ST03Z) DC51D+ZF |
--- | 270-500 | --- | --- | 20 | 22 | 0a | 1a | 2a |
The usage of Glavanized steel coil/sheet
Galvanized steel coil products mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery and commerce industries ect.
(1) In construction industry, hot dip galvanized steel coil is mainly used to manufacture anticorrosion, industrial and civil architecture roof boarding, roof grille, etc.
(2) Light industries use hot dip galvanized steel coil to make home appliance’s case, civil chimney, kitchen utensils, etc.
(3) Auto industry mainly use hot dip galvanized steel coil to produce corrosion resistant parts of cars
(4) Agriculture, animal husbandry, and fishery mainly use hot dip galvanized steel coil for food storage, meat and aquatic products’ freezing and processing equipment etc;
(5) In commerce, hot dip galvanized steel coil is mainly used as the equipments to store and transport materials,and packing implements.
1.With nearly full years experiences in Whiteboard Metal Sheets, accommodate different market
demands.Well equipped with excellent and advanced R&D facilities and backed by a professional team.
2.'Quality first, service first' is our business aim; 'no defect, no complaints'is our quality objective.
3.Up to 150,000000m2 factory turns out over 50,0000000 tons per month.
4. Exceed International ISO9001:2008&ISO14001:2004 quality and environmental standards
5. Pass ROHS &REACH Test
6. Have our own DESIGN TEAM.
Ubicación |
Distrito de SHINAN,Ciudad de QINGDAO, Provincia de SHANDONG China. |
Especificaciones de bobina de acero prepintado(PPGI/PPGL) | |
Estándar |
ASTM A653M, ASTM A792M,JIS,EN |
Grado |
CS Type A, B, C,SGCC,DX51D+Z,SGLCC;DX51D+AZ |
|
Base de galvanizado Cantidad de zinc |
Disponible Z60-275g/m2; Normal: 60,80,100,120,160,180,275 etc. Según los requisitos del cliente |
|
Base de galvalume Cantidad de alu zinc |
Disponible AZ30-150g/m2; Normal: 30,40,50,70,100,150 etc. Según los requisitos del cliente |
Espesor |
0.2mm-2.0mm |
Anchura |
600mm-1500mm Anchura normal: 914mm,1000mm,1200mm,1219mm,1250mm,1220mm |
Tratamiento de la superficie exterior |
Resina epoxi / Poliéster / Poliéster / Acrílico / Poliuretano |
Pintura |
Cara superior:5microns+15~25microns Cara inferior :5~8microns Pintada y secada dos veces cada cara |
Color |
Monocromático de RAL Según requisito del cliente |
Peso de Bobina |
3-6 toneladas más o menos De acuerdo con requisito del cliente. |
Diámetro del Rollo |
508mm/610mm |

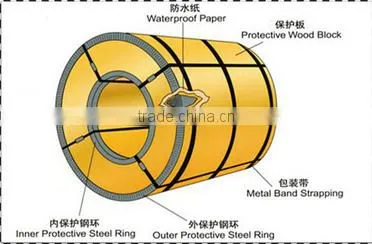

Embalaje |
Embalaje reforzado apropiado al transporte naviero internacional: Estandar de exportación en condiciones de navegar+ banda de acero Embalado + caja de madera en condiciones de navegar |
Puerto de entrega |
Shanghai o Ningbo |
Plazo de entrega |
Dentro 30 dias después de recibir anticipo o L/C |
MOQ |
25 MT |
Certificados |
Certificado SGS, ISO9001 |
Capacidad de producción |
10,000 tonelada/mes
|
Mercados principales |
América del Sur,Europa, América, Australia |
Recomendación |
Se almacenan todos los productos en lugar seco y protegido de lluvia antes de instalar. |
Aplicaciones
Construccion |
Interior |
Taller, almacen agricola, techo corrugado, puerta de persiana, tubo de drenaje |
Exterior |
Puerta, doorcase, ligera estructura de techo, pantalla plegable |
|
Aparato electrodomestico |
Refrigerador, lavadora, armario de distribucion, gabinete de instrumentos, aire acondicionado |
|
Mueble |
Central calefaccion, pantalla, escritorio, cama, armario, estanteria |
|
Comercio de transportacion |
Decoracion exterior de automoviles y trenes, tablilla, contenedor |
|
Otras aplicaciones |
Tableros de escritura, basurero, carteleras, relojes, maquinas de escribir, tablero de instrumentos |
|
Nuestros Servicios:
1.Las muestras se pueden enviar a ustedes segun sus requisitos. |
2.Carga de mercancia a tiempo. |
3.Buen servicio de post-venta. |
4.Se ofrecen visitas de clientes a la fabrica y empresa. |
5.Aceptamos el examen de certificacion de tercera parte. |
6.MTC se entrega con los documentos. |
7.Encuesta de Satisfaccion de Cliente. |
8.Conocimientos profesionales. |
