Home > Products > machine > CE, ISO9001:2008 Certificated Automatic Kraft Paper Yarn Bag Making Machine, Kraft Paper Bag Making Machine
CE, ISO9001:2008 Certificated Automatic Kraft Paper Yarn Bag Making Machine, Kraft Paper Bag Making Machine
- 2 Set / Sets per Month
- Tianjin China
- T/T
Product Details
Condition: | New | Machine Type: | Bag Forming Machine | Bag Type: | Other, Industrial bags, cement sack, chemcial bags, mineral bags etc. |
Material: | Paper | Computerized: | Yes | Place of Origin: | Gansu, China |
Brand Name: | Zhanhua | Model Number: | JF6D-600 | Voltage: | 380V |
Power(W): | 10KW | Dimension(L*W*H): | 16.65 x 2.9 x 2.2m | Weight: | 7000 KGS |
Certification: | ISO9001:2008, CE | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

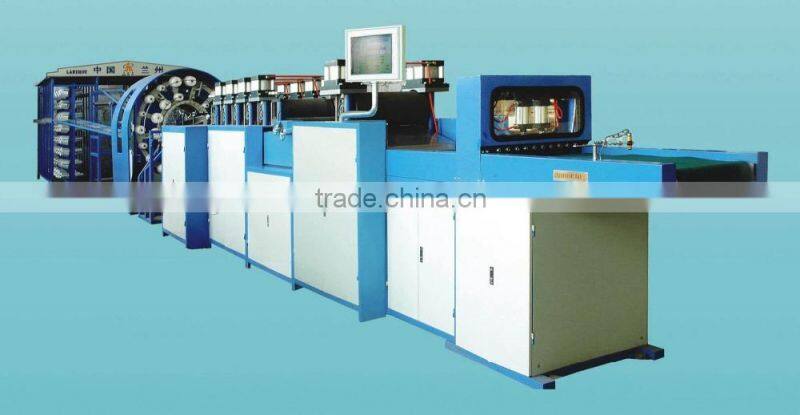

Paper yarn bag making machine is China patented product, which manufactures yarn net reinforced paper yarn bags which have good performance of high strength, anti-aging, moisture proof, high-temperature resistance, environment friendly etc. The paper yarn bag making machine integrates at least five sets traditional bag making machines together, such as wire drawing machine, circular weaving machine, film laying machine, and printing machine. Bag tubes can be finished only by one set machine within one process course.
Paper Yarn Bag Making Machine major technical data:
1. Bag raw materials:
a) Vinylon water soluble yarn (or vinylon draft zone spun yarn, polyester yarn)
b) Sack kraft paper: 65-80g/m2
c) Glue: 17-99 PVA
2. Machine Size(L x W x H ): 16.65 x 2.9 x 2.2m
3. Print: Two colors flexo printing within the machine, one side; for more colors, sack paper can be preprinted, or print when the bag finished.
4. Operator: 3 workers/shift
5. Bag-making speed: 15-22 meters/min
6. Total Power: 10KW(including heating power 2KW)
7. Bag size: Length: at your option; Width: 340-600mm; Gusset: 0-160mm
Paper Yarn Bag Making Machine major features:
1. Compact
One set paper yarn bag making machine can replace five traditional bag making machines perfectly. Machine size: 16.65 x 2.9 x 2.2m, covers an area less than 50M2.
2. Easy Operation
With parameter pre-setting, frequency and speed adjustment technology, operation is easier and production is more stable.
3. Environment Friendly
Low noise, without any pollution during the whole production process (without waste water, waste gas and waste dregs).
4. Low Cost
Power and labor saving, total power 10KW only and 3 workers/shift.
5. High Efficiency
Automatically finish the entire processes of material-feeding, bag-forming, compound, folding, printing, perforating and cutting, less hands, more effective.
6. Multi-function
Flat bags and gusseted bags, sewn bags and pasted bags are can be manufactured with the paper yarn bag making machine.
After-Sales Service:
Guarantee:12-18 months ( based on different area), and our engineer will help to set up the paper yarn bag making machine, and train the workers.
Others:
OEM and ODM are accepted.
*JF6D-600 Paper Yarn Bag Making Machine is the computer version with PT, PLC system, the parameters can be set through the screen, and all kinds of bag tube will be cut and come out of the machine. The only difference between JF6B-600 is the control system, others are the same.
Packaging: The paper yarn bag making machine is packed in wooden cases, and 1 set machine in 40 GP container.
Shipping: By sea, from Tianjin, China. Or by train to CIS countries.
Gansu Zhanhua Import & Export Co., Ltd. was established at 2004, as the successor of Zhangye Foreign Trade Co., Ltd. with decades of experience of international trade, now has been a comprehensive entity with manufacture and trade business. Now, we mainly deal in the new generation green packing technology: paper yarn bag making machine & paper yarn bag and Gansu origin agriculture products like broad bean, hempseeds, lentils, millets etc.
