Materials
The following samples are for your reference:
Dehydrated vegetables color sorter: Dehydrated garlic slice, dehydrated carrot tablets, dehydrated onion, fried banana slices, dehydration cabbage etc.
Description

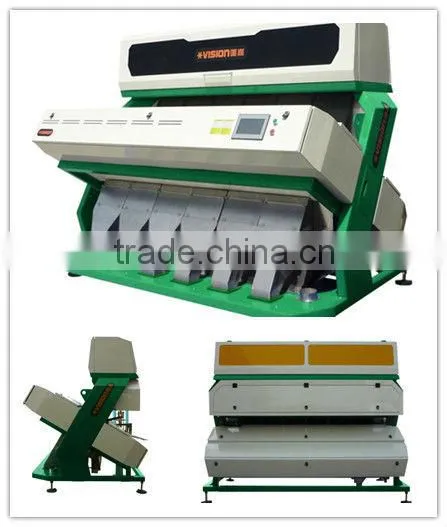

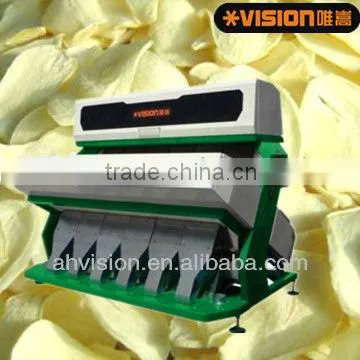

VISION Dehydrated vegetables CCD Color Sorter
- The color sorter uses 2048 high performances CCD sensors with the definition up to 0.02mm².
- The sorter adopts high quality special industrial lenses designed and manufactured for color detection.
- The high speed DSP technology provides the sorter with fast detection and high identification rate.
- Master control system adopts ARM high-end embeded processor to enhance and control the speed and color selection precision effectively.
- Overall unit adopts intelligent closed-loop control system.
- The operation interface adopts industrial grade 7-inches TFT touch screen and features simple parameter setting and easy operation.
- High speed air valve is used to ensure quick response, low power consumption and long service life.
- The sorter uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
- Automatic failure alarm and modular construction make the machine easy to be maintained.
Technical parameter
Grain color sorter VSN3000 Series
Model |
VSN3000-C3A |
VSN3000-C4A |
VSN3000-C5A |
VSN3000-C6A |
Channels |
192 |
256 |
320 |
384 |
Capacity (t/h) |
2~5 |
3.5~7 |
4.5~8 |
5~10 |
Accuracy |
>99.98% |
>99.98% |
>99.98% |
>99.98% |
Waste |
<1:0.125 |
<1:0.125 |
<1:0.125 |
<1:0.125 |
Voltage(v) |
~220V 50Hz |
~220V 50Hz |
~220V 50Hz |
~220V 50Hz |
Power(kw) |
2.5 |
2.5 |
2.8 |
3.1 |
Pressure(MPa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
Consumption(L/min) |
1200~3000 |
1200~3000 |
1600~3500 |
1800~3800 |
Weight(kg) |
900 |
1000 |
1200 |
1400 |
Dimension(L×W×H) |
1425×1518×1840 |
1725×1518×1840 |
2025×1518×1840 |
2325×1518×1840 |
Note: The above parameters vary with types, shapes and grain sizes of raw materialand defect rate. Please consult the sales staff before buying.

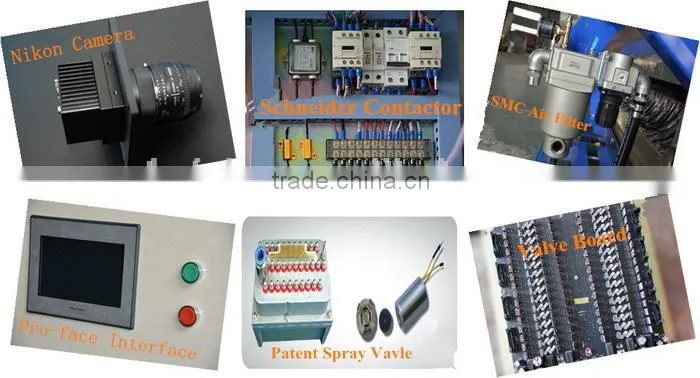

Important parts
Signal processing and control system
Vision CCD color sorters use large-scale integrated DSP technology. The main control system adopts ARM9 high-end embedded ships. The complete sorter applies intelligent closed-loop control. The industrial grade data bus ensures the reliability of communication and the control system and provides powerful interference resistance capability.
Nikon CCD camera
Vision CCD color sorters use professional largesize optical lenses. The working parameters are customized according to material color sorting requirements. The optimized light path structure ensures proper imaging and high image quality.
Valve
The snifting valve was granted a utility model patent in 2006 with the patent number: ZL200620075811.9. The patented high speed snifting valve design and manufacturing technology adopts optimized valve design and special manufacturing technique to ensure quick response, low power consumption and long service life.
Chute
The chutes are made of special alloy materials and molded with precision digital equipment with vacuum surface plating. Therefore, chutes are hard to wear and corrosion resistance. Special chutes will be used for materials with different shapes to ensure high flow speed and volume and easy maintenance.
Business Cooperation

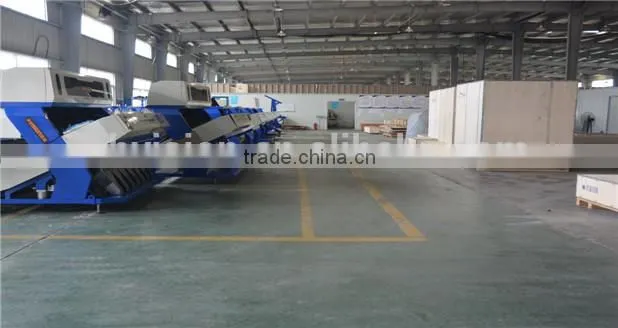

Factory
Welcome to visit our company.
