Specifications
1.Low waste& high throughput]2.Superb After-sale Service
3.Professional Technical Guidance
4.Passed ISO9001 Certification

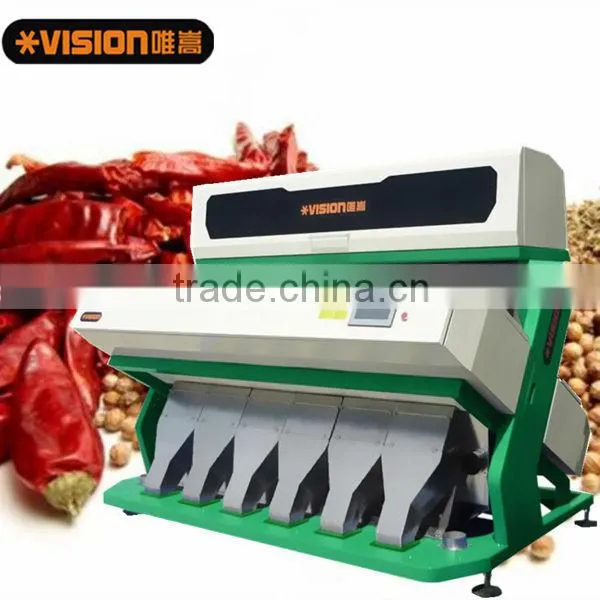

1. The color sorter uses 2048 high performances CCD sensors with resolution up to 0.07mm²;
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting of spices ;
igh speed DSP technology provides the sorter with fast detection and high identification rate;
4. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision;
5. Overall unit adopts intelligent closed-loop control;
6. The operation interface adopts industrial grade 7-inch TFT contact screen and features simple parameters setting and easy operation;
7. High speed air valve is used to ensure quick response, low power consumption and long service life;
8. Sorters use intellige
nt temperature and air pressure control technology in order to ensure the best operative mode for the whole machine;
9. Failure alarm automation and modular construction makes easy repair;
10.Business Cooperation: Most of the machine parts are imported(Altera CO.,LTD FPGA,
Japan.Proface,CKD,SMC,Schneider).
Product Model/Technical parameter:
Model |
VSN3000-G3A |
VSN3000-G4A |
VSN3000-G5A |
VSN3000-G6A |
Channels |
192 |
256 |
320 |
384 |
Capacity (t/h) |
2~5 |
3.5~7 |
4.5~8 |
5~10 |
Accuracy |
>99.98% |
>99.98% |
>99.98% |
>99.98% |
Waste |
<1:0.125 |
<1:0.125 |
<1:0.125 |
<1:0.125 |
Voltage(v) |
~220V 50Hz |
~220V 50Hz |
~220V 50Hz |
~220V 50Hz |
Power(kw) |
2.5 |
2.5 |
2.8 |
3.1 |
Pressure(M Pa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
Consumption(L/min) |
1200~3000 |
1200~3000 |
1600~3500 |
1800~3800 |
Weight(kg) |
900 |
1000 |
1200 |
1400 |
Dimension(L×W×H) |
1425×1518×1880 |
1725×1518×1880 |
2025×1518×1880 |
2325×1518×1880 |
