Home > Products > VISION DRY FRUIT&VEGETABLES CCD COLOR SORTER > Spices CCD sorting machine! Imported CCD camera from Japan ! Vision's CCD Color Sorter machine!From anhui!

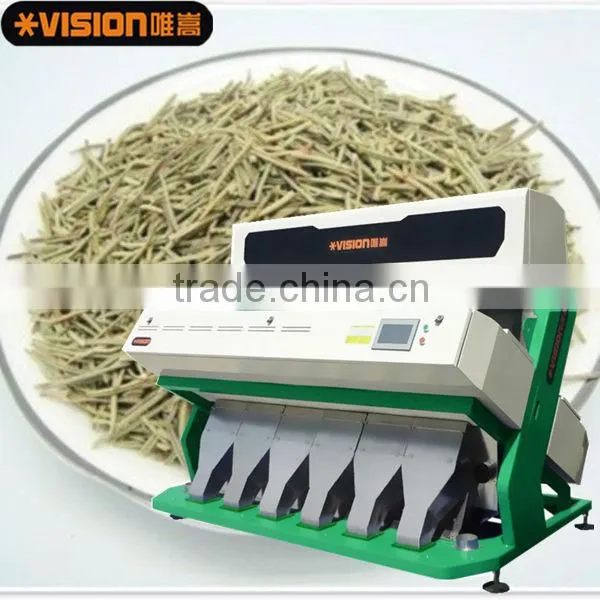

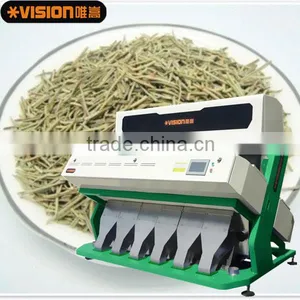

Spices CCD sorting machine! Imported CCD camera from Japan ! Vision's CCD Color Sorter machine!From anhui!
- 40 Set / Sets per Month
- shanghai
- T/T D/P D/A
Product Details
Type: | Dehydrated spices color sorter machine | Use: | Rosemary sorting | Certification: | CE,ISO9001 |
Place of Origin: | Anhui, China | Brand Name: | VISION | Model Number: | VSN3000-G6A |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Low waste &high accuracy2.Superb After-sale Service
3.Professional Technical Guidance
4.Passed ISO9001 Certification
1. The color sorter uses 2048 high performances CCD sensors with resolution up to 0.07mm²;
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting of rosemary ;
igh speed DSP technology provides the sorter with fast detection and high identification rate;
4. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision;
5. Overall unit adopts intelligent closed-loop control;
6. The operation interface adopts industrial grade 7-inch TFT contact screen and features simple parameters setting and easy operation;
7. High speed air valve is used to ensure quick response, low power consumption and long service life;
8. Sorters use intellige
nt temperature and air pressure control technology in order to ensure the best operative mode for the whole machine;
9. Failure alarm automation and modular construction makes easy repair;
10.Business Cooperation: Most of the machine parts are imported(Altera CO.,LTD FPGA,
Japan.Proface,CKD,SMC,Schneider).
Product Model/Technical parameter:
Model | VSN3000-G3A | VSN3000-G4A | VSN3000-G5A | VSN3000-G6A |
Channels | 192 | 256 | 320 | 384 |
Capacity (t/h) | 2~5 | 3.5~7 | 4.5~8 | 5~10 |
Accuracy | >99.98% | >99.98% | >99.98% | >99.98% |
Waste | <1:0.125 | <1:0.125 | <1:0.125 | <1:0.125 |
Voltage(v) | ~220V 50Hz | ~220V 50Hz | ~220V 50Hz | ~220V 50Hz |
Power(kw) | 2.5 | 2.5 | 2.8 | 3.1 |
Pressure(M Pa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
Consumption(L/min) | 1200~3000 | 1200~3000 | 1600~3500 | 1800~3800 |
Weight(kg) | 900 | 1000 | 1200 | 1400 |
Dimension(L×W×H) | 1425×1518×1880 | 1725×1518×1880 | 2025×1518×1880 | 2325×1518×1880 |
