Help CenterElectric Wedge Connectors Electric Cable Connector Clamp
Related Products
-
H Type Aluminium /Tap Connector/Compression ConnectorUS$ 1 - 2MOQ: 1000 Pieces -
Aluminum Clamp Compression Tap ConnectorUS$ 1 - 2MOQ: 1000 Pieces
-
Aluminum Alloy Bolt Type Strain ClampUS$ 2 - 3MOQ: 1000 Pieces
-
NLL Series Bolted Type Strain Clamp/tension ClampUS$ 2 - 3MOQ: 1000 Pieces
-
NXL Insulation Strain Clamp (Wedge Type)US$ 2 - 3MOQ: 1000 Pieces
Specifications

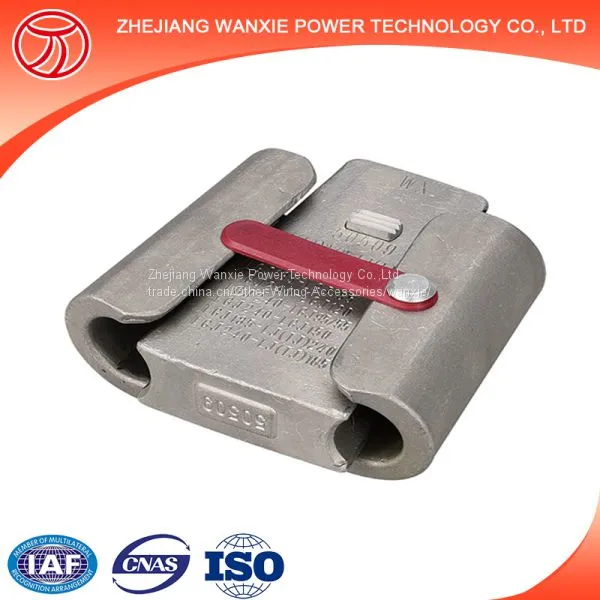

"C-spring" & wedge design.
Easy install, free of shotgun.
Lock pin design with exclusive patent prevents wedge from loose
Suitable Conductor:Aluminum conductor steel reinforced[ACSR(LGJ)]
| No. | Lead Size | LGJ-35/6 | LGJ-50/8 | LGJ-70/10 | LGJ-70/40 | LGJ-95/15,20 | LGJ-120/20,25 | LGJ-95/55 | LGJ-150/20,25 | LGJ-185/25,30 | LGJ-240/30,40,55 | Lead Size |
| 1 | LGJ-35/6 | 30303 | 30304 | 30305 | 30307 | 30307 | 30310 | 30310 | 50502 | 50503 | 50505 | LGJ-35/6 |
| 2 | LGJ-50/8 | 30304 | 30308 | 30309 | 30309 | 30311 | 30311 | 50502 | 50503 | 50505 | LGJ-50/8 | |
| 3 | LGJ-70/10 | 30309 | 30311 | 30311 | 30312 | 30312 | 50504 | 50506 | 50507 | LGJ-70/10 | ||
| 4 | LGJ-70/40 | 30312 | 30312 | 30313 | 30313 | 50504 | 50506 | 50507 | LGJ-70/40 | |||
| 5 | LGJ-95/15,20 | 30312 | 30313 | 30313 | 50504 | 50506 | 50507 | LGJ-95/15,20 | ||||
| 6 | LGJ-120/20,25 | 30313 | 30314 | 50506 | 50508 | 50509 | LGJ-120/20,25 | |||||
| 7 | LGJ-95/55 | 30314 | 50506 | 50508 | 50509 | LGJ-95/55 | ||||||
| 8 | LGJ-150/20,25 | 60607 | 50508 | 50509 | LGJ-150/20,25 | |||||||
| 9 | LGJ-185/25,30 | 5059 | 50511 | LGJ-185/25,30 | ||||||||
| 10 | LGJ-240/30,40,55 | 50511 | LGJ-240/30,40,55 |
Suitable Conductor: Aluminum Conducror
| No. | Lead Size | LGJ-35/6 | LGJ-50/8 | LGJ-70/10 | LGJ-70/40 | LGJ-95/15,20 | LGJ-120/20,25 | LGJ-95/55 | LGJ-150/20,25 | LGJ-185/25,30 | LGJ-240/30,40,55 | Lead Size |
| 1 | LJ(TJ)-16 | 30302 | 30302 | 30303 | 30305 | 30305 | 30306 | 30307 | 50501 | 50501 | 50502 | LJ(TJ)-16 |
| 2 | LJ(TJ)-25 | 30302 | 30303 | 30304 | 30305 | 30305 | 30307 | 30307 | 50501 | 50502 | 50503 | LJ(TJ)-25 |
| 3 | LJ(TJ)-35 | 30303 | 30303 | 30305 | 30306 | 30306 | 30307 | 30310 | 50501 | 50502 | 50503 | LJ(TJ)-50 |
| 4 | LJ(TJ)-50 | 30303 | 30304 | 30305 | 30308 | 30309 | 30310 | 30310 | 50502 | 50503 | 50505 | LJ(TJ)-70 |
| 5 | LJ(TJ)-70 | 30304 | 30308 | 30308 | 30310 | 30310 | 30311 | 30311 | 50503 | 50504 | 50505 | LJ(TJ)-95 |
| 6 | LJ(TJ)-95 | 30305 | 30308 | 30309 | 30311 | 30311 | 30312 | 30312 | 50504 | 50504 | 50507 | LJ(TJ)-120 |
| 7 | LJ(TJ)-120 | 30307 | 30310 | 30311 | 30312 | 30312 | 30312 | 30313 | 50504 | 50506 | 50507 | LJ(TJ)-120 |
| 8 | LJ(TJ)-150 | 30310 | 30310 | 30311 | 30312 | 30312 | 30312 | 30313 | 50506 | 50507 | 50508 | LJ(TJ)-150 |
| 9 | LJ(TJ)-185 | 50502 | 50502 | 50503 | 50504 | 50504 | 50506 | 50506 | 50507 | 50508 | 50509 | LJ(TJ)-185 |
| 10 | LJ(TJ)-210 | 50502 | 50503 | 50504 | 50506 | 50506 | 50507 | 50507 | 50507 | 50509 | 50510 | LJ(TJ)-210 |
| 11 | LJ(TJ)-240 | 50502 | 50503 | 50505 | 50506 | 50506 | 50507 | 50507 | 50508 | 50509 | 50510 | LJ(TJ)-240 |
Easy install
Just by knocking by hammer without shotgun, it is the fastest installation method in comparison with others, also according with mounting habits of workers.
Especially under the hot-line working environment, workers’ contact time with electrified conductor will be reduced dramatically, which greatly improves the safety of workers.
Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, How about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, How about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
Of course, we can make various products according to your demands.
