Help CenterNLL Series Bolted Type Strain Clamp/tension Clamp
Related Products
-
NXL Insulation Strain Clamp (Wedge Type)US$ 2 - 3MOQ: 1000 Pieces -
NXJ Aluminium Alloy Aerial Strain Clamp for Hanging Cable/Tension Clamp/Dead End ClampUS$ 2 - 3MOQ: 1000 Pieces
-
Preformed OPGW Dead End 160kn Fiber Optic Cable FittingUS$ 1 - 2MOQ: 1000 Pieces
-
JCD-32 Type Aluminum Electrical Transformer ClampUS$ 1 - 2MOQ: 1000 Pieces
-
JLC-815 Type Aluminum Alloy Wire Clip ConnectorUS$ 1 - 2MOQ: 1000 Pieces
Product description:
Tension clamps are used to fix conductor and ground wire through insulators or link fitting to tower arms or substation structrues.In according to the clamp construction and mounting way,the clamps include three types as compression type, bolt type and wedge type.The compression type include hydraulic type and explosive type.
1. Strain clamps fix conductors and ground wires through insulators or link fittngs to tower arms or substation structures.
2. According to the aluminum alloy strain clamps construction and mounting way, the aluminum alloy strain clamps include two types: compression type and bolt type.
3. The Aluminum Alloy Strain Clamps (Compression Type ) include Hydraulic and explosive type.
4. As the Bolt Type Aluminum Alloy Strain Clamps are used to AAC and ACSR, the conductor may to wound by aluminum tapes or preformed armour rods for protecing these taps or rods are included in the diameter of suitable conductor.

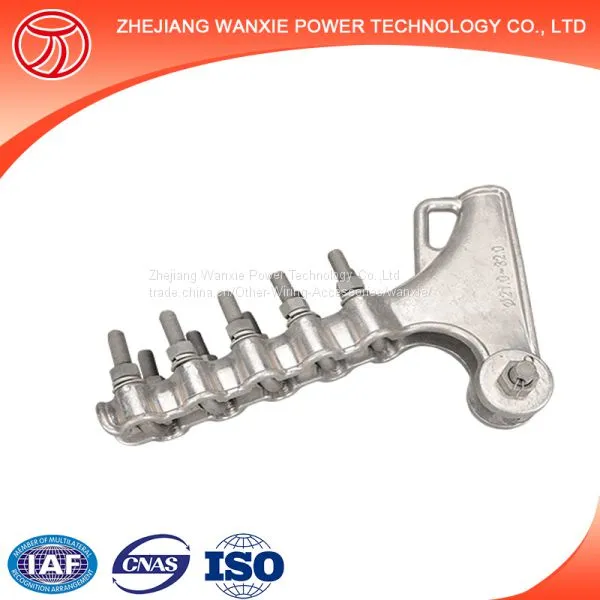

Strain clamp(bolt type)
| Catalog No. | Suitable conductor dia.(mm) | Main dimension(mm) | U bolt | Specified Failure Load(Kn) | |||||
| M | C | L1 | L2 | R | No. | Dia. | |||
| NLD-1 | 5.0~10.0 | 16 | 18 | 150 | 120 | 6.5 | 2 | 12 | 40 |
| NLD-2 | 10.1~14.0 | 16 | 18 | 205 | 130 | 8 | 3 | 12 | 40 |
| NLD-3 | 14.1~18.0 | 18 | 22 | 310 | 160 | 11 | 4 | 16 | 70 |
| NLD-4 | 18.1~23.0 | 18 | 25 | 410 | 220 | 12.5 | 5 | 16 | 90 |
Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, How about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, How about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
Of course, we can make various products according to your demands.
