cooling water two roll mill

cooling water two roll mill

Model no.:

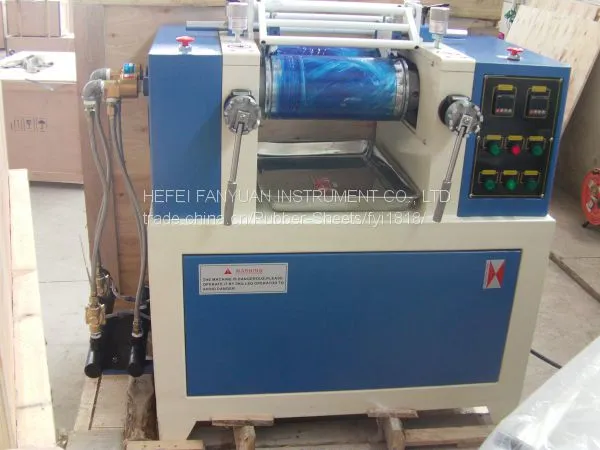

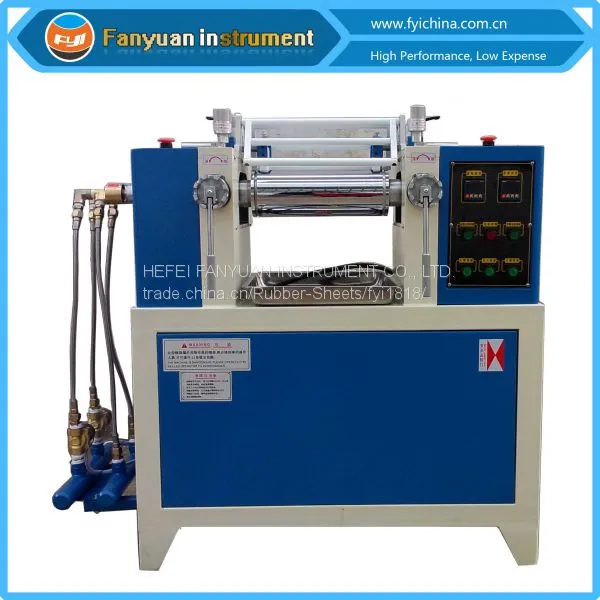

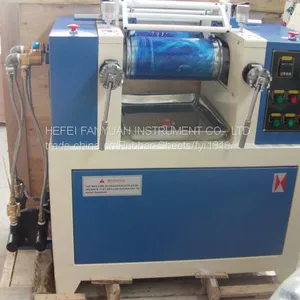

DW5110 cooling water two roll mill

APPLICATION

DW5110 cooling water two roll mill  It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, heating system, electric control system, safety device, etc

Note: this cooling water two roll mill can conform to but not limit to the standards above, for more standards conformance, please contact us.

FEATURES

• Cylindrical center-adjustable bearing;

• Hard chromeplated steel rolls, rapid heat transfer, high hardness, high corrosion resistance;

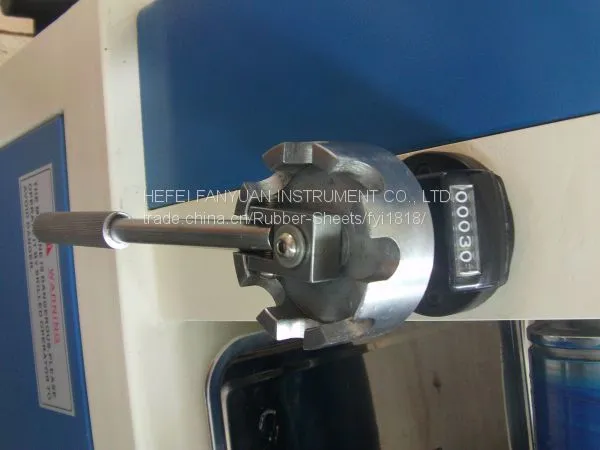

• Adjustable gap between the two rolls, high accuracy;

•  Independent and variable speed control for each roll;

• Sensitively and uniformly temperature control, high accuracy;

• Electric heating;

•  With safety device.



KEY SPECIFICATION

• Mixing capacity                   0.2~2kg

• Heating method                   Electric heating

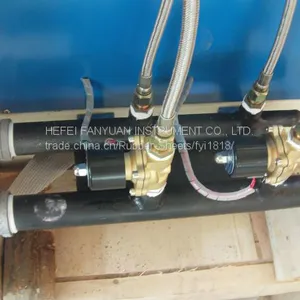

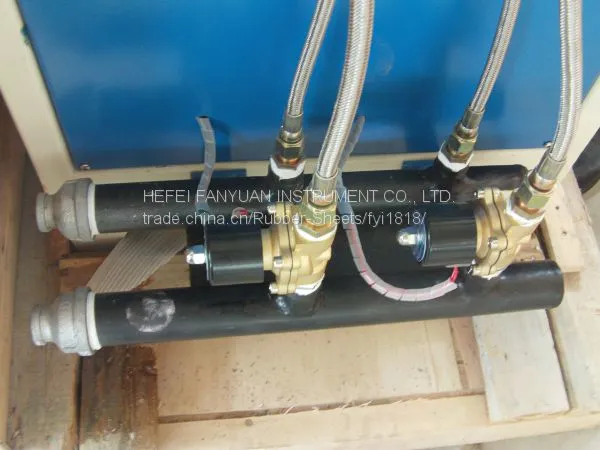

• Cooling method                   Running tap-water

• Temperature accuracy              ±3℃, PID control

• Roll hardness                     HRC 58~60

• Roll diameter                     Φ120mm

• Roll length                       350mm

• Roll speed                       24r/min

• Roll space                       0.2~5mm, adjustable

• Security device                   Emergency stop

• Motor power                     5.5KW

• Electric power request              AC380V, 50Hz 3-phase 26A

• Dimensions(L×W×H)             1050×600×1160mm

• Weight                           Approx. 450kg

  Item	Plastics experiment	Rubbers experiment
  Heating or cooling	Electric heating	Water cooling
  Working temperature	Room temperature~300℃±3.5℃	Room temperature





STANDARD CONFIGURATION

• No.	Item	Quantity
  1	Main machine	1set

Good service and quantity .

 A. We supply one year warranty and 12 hours service per day .

 B. Our skilled engineer can go to your company for installation service

 C. Our  cooling water two roll mill adopts top quality material including imported parts, most of the critical component are adopting first class brand .

 D. Our company passed ISO and have strict quality control before delivery goods

 E. We can customized and also supply OEM service

 F.. We also can supply different language user's manual . The

    user manual of cooling water two roll mill can help you operate our machine easily.

 G ; we supply operation video if customer need it . .

Payment and delivery :

A..We accept payment  such as TT , Western union, and L/C,DP etc . you can contact with us if you need

B. Normally we can delivery time in 3-4 weeks it depend on we have stock or not .

FAQ

 Q: Are your company a trading one or a factory?
A:Factory + trader , 30  years focusing on test instruments field

 Q What's about delivery time ?
A: Generally about 2-3 Weeks ,  If we have stock , we can arrange shipment within 3 days after re-tester in our factory , Some machine need customized. Deliver time is longer .

Q: What about the warranty with after - sales services?
A: The testing machine is guaranteed for 12 months by Hefei Fanyuan Instrument
of course .we can help you to repair your problem controller freely ,even it's not from our factory.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

 Q:What about  services and quality?
A:Each cooling water two roll mill must be carried out 100% quality examination and test when shipping and delivery goods.
Each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.
our products are widely recognized and trusted by users.
