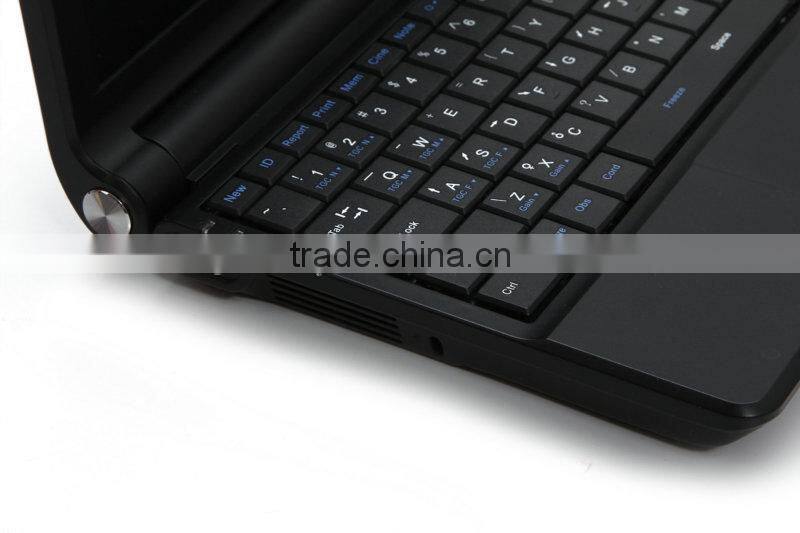

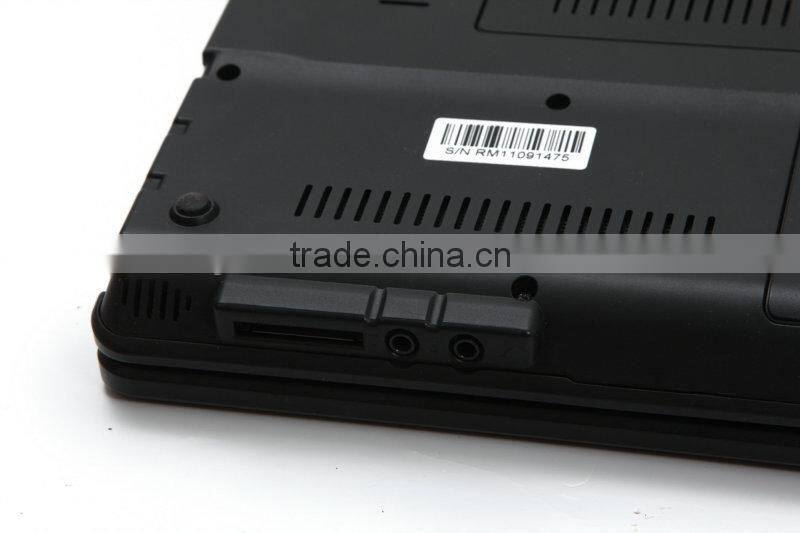

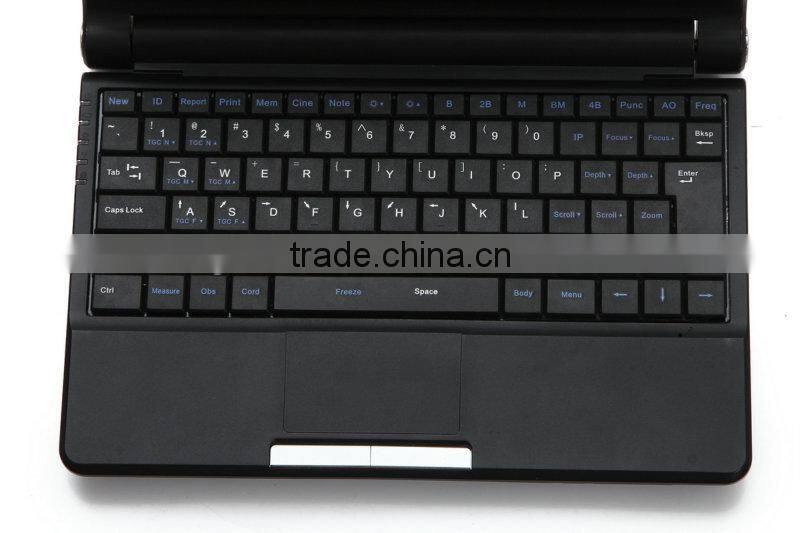

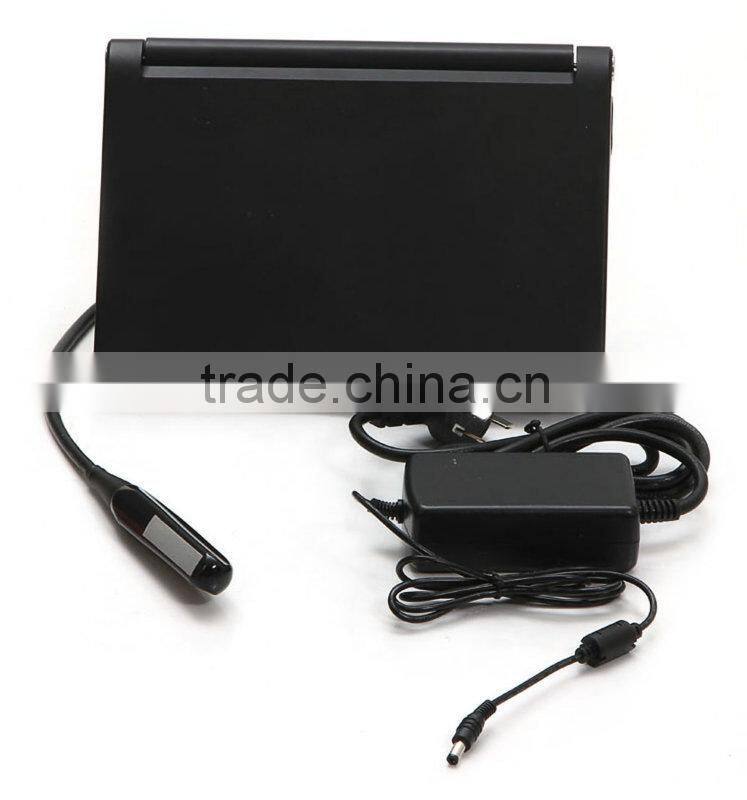

2016 high quality digital Laptop vet Ultrasound Scanner convex linear portable VET Ultrasound machine for sale
Advanced digital imaging technology:
- DBF: Digital Beam Forming technology
- DFS: Dynamic Frequency Scanning technology
- DRF: Dynamic Receiving Focusing technology
- RDA: Real-time Dynamic Aperture imaging technology
- DRA: Real-time Dynamic Receiving Apodization technology

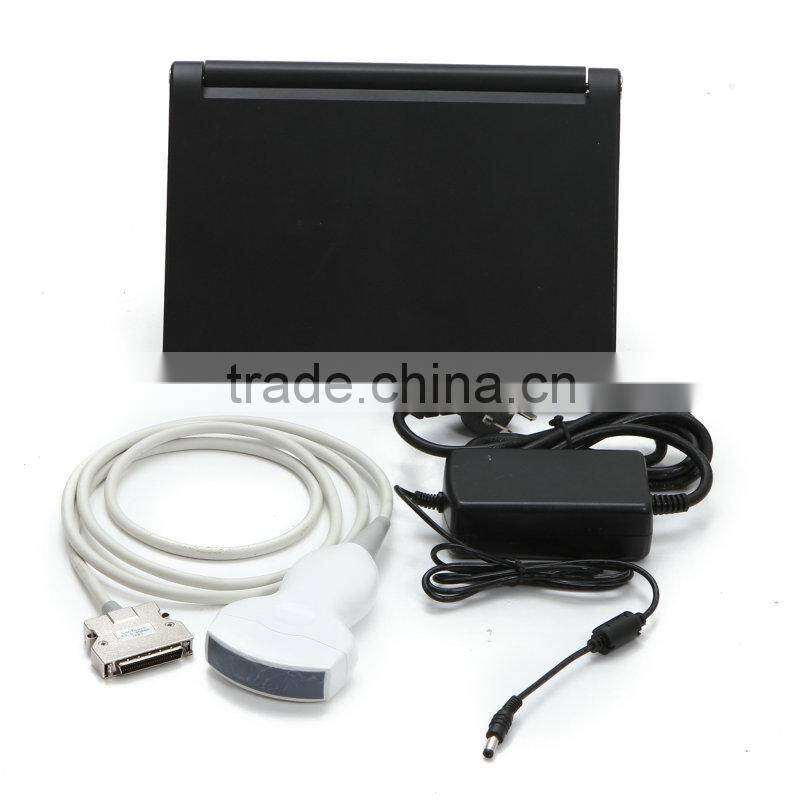

Standard Configuration:

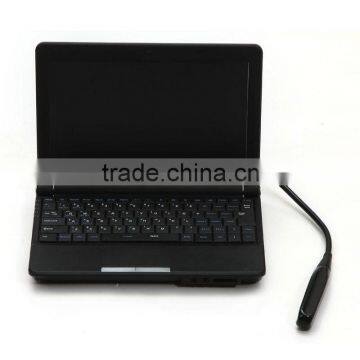

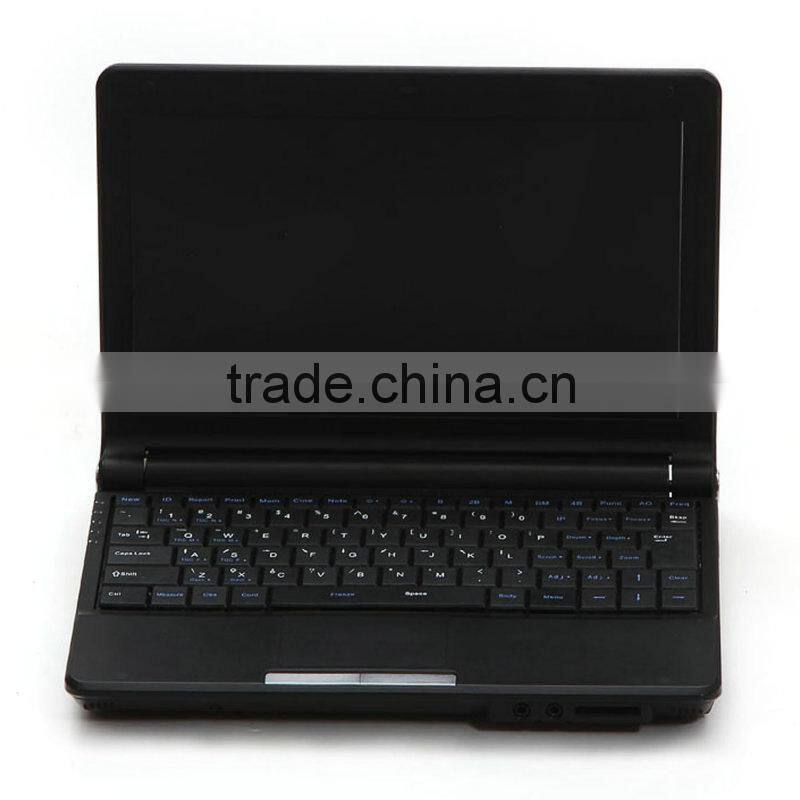

- Main unit with 10.4-inch LCD monitor

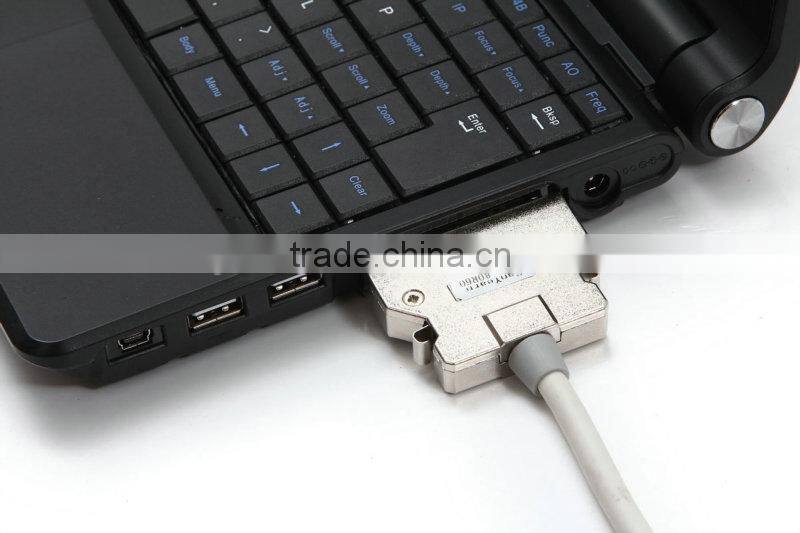

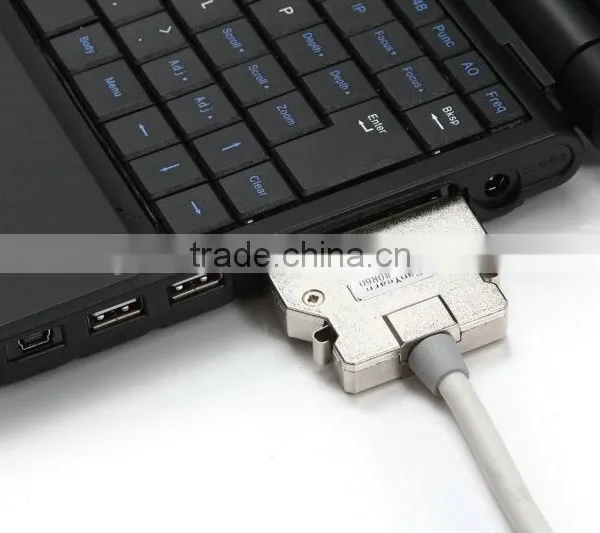

- One probe connector

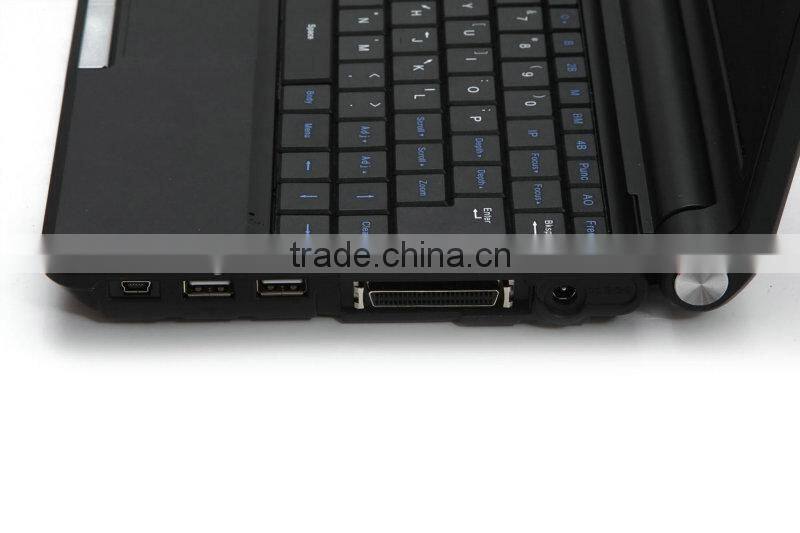

- USB 2.0
- Cine loop (819 frame max)
- 32 images permanent storage

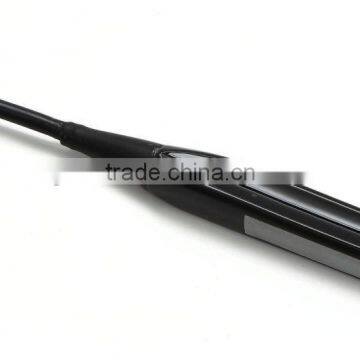

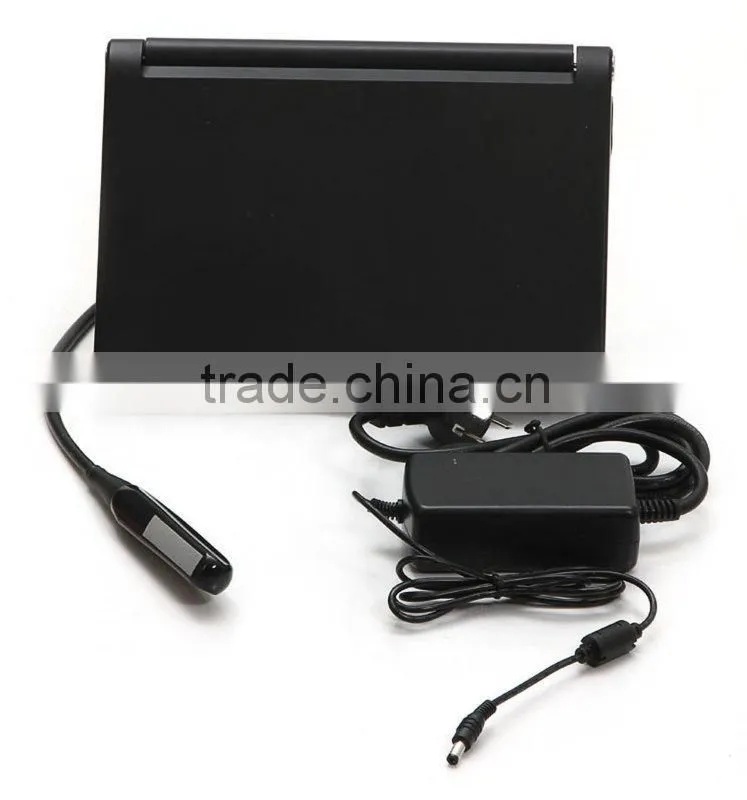

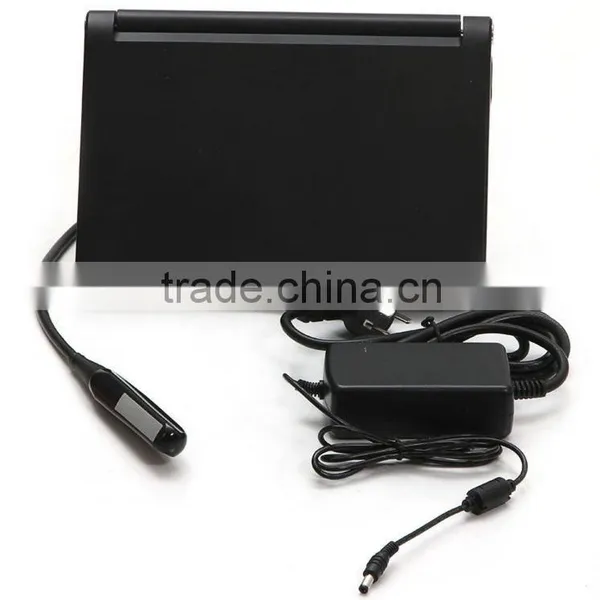

- 6.5MHz rectal linear probe
Optional:
- 60R/3.5MHz Convex Probe
- 7.5MHz Linear Probe
- 20R/5.0MHz Micro-Convex Probe
- Video Printer
- Extra battery
Specification:

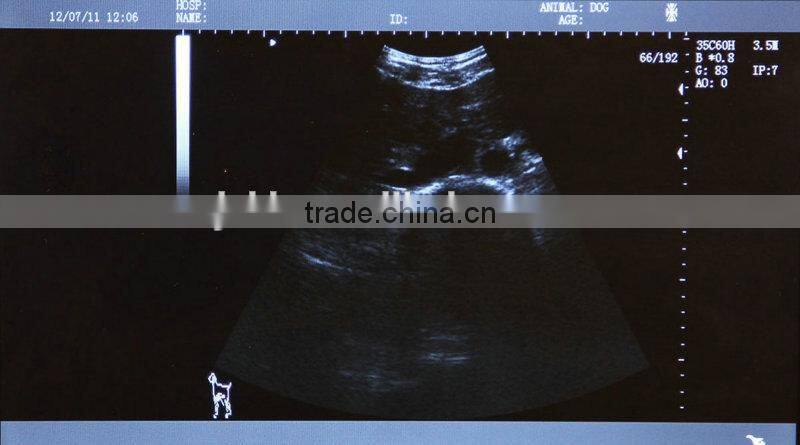

Image mode | B, B/B, B+M, M, 4B |
Scanning mode | Convex/linear |
Element | 96 |
Multi-frequency probe | 2.5~8.5 MHz |
Scanning depth | 240mm max |
Gray scales | 256 |
Cine-loop | 819 frames (Max) |
Image permanent storage | 32 frames |
Image conversion | up/down, left/right, black/white |
Local zoom | 2 times both in real-time and frozen |
Measurement | distance, circumference, area, volume, EF rate, heart rate |
OB measurement | Equine - GA (GSD) Bovine - GA (BL, SL, HL) Swine - GA (HL) Sheep - GA (USD) Cat - GA, EDD (HD, BD) Dog - GA, EDD (GSD, CRL, HD, BD) |
Monitor | 10.4 inch TFT color LCD |
Comment | date&time, name, sex, age, doctor, hospital, annotation (whole screen comment input) |
Wide application | Equine, Bovine, Swine, Sheep, Cat, Dog |
USB port | High speed USB 2.0 |
VGA port | Available |
Weight | 2.4kg with one probe |
Dimension | 292x230x41mm |
Battery working time | 3 hours (MAX) |
Power supply | 110-240V AC, 50Hz±1Hz |
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
