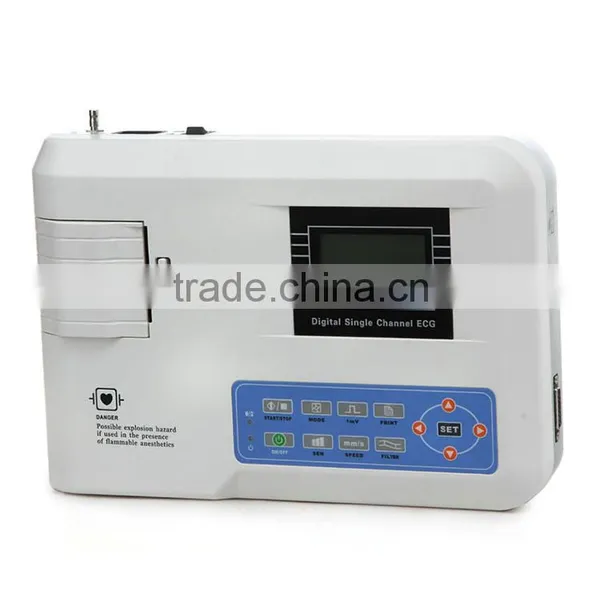

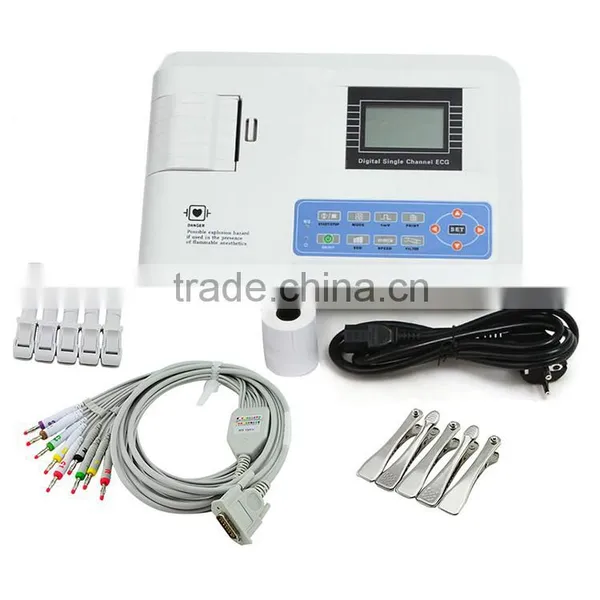

Medical vet equipment Digital Single channel 12 lead portable Veterinary ECG machine with factory price
Features:

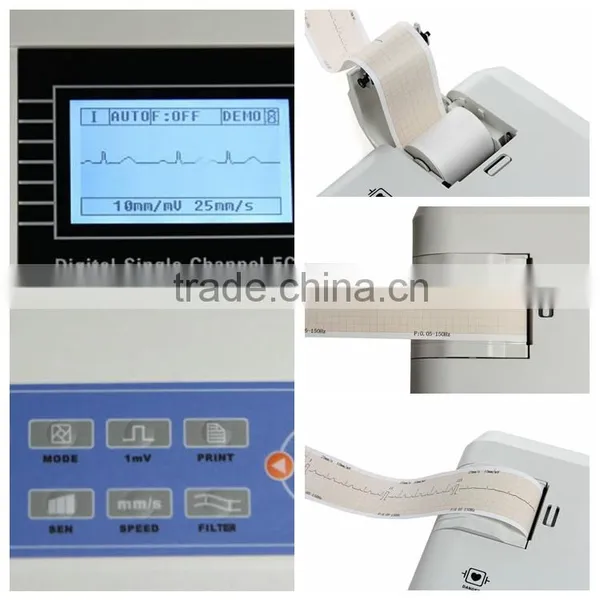

High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform
One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
CMRR |
>80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System |
Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply |
AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
- Click the link for more products:
- http://jxkh.en.china.cn/productgrouplist-801164721/Veterinary.html
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
