Carejoy medical anesthesia apparatus equipment portable Veterinary Anesthesia Machine for vet

 Carejoy medical anesthesia apparatus equipment portable Veterinary Anesthesia Machine

Vet Anesthesia Machine

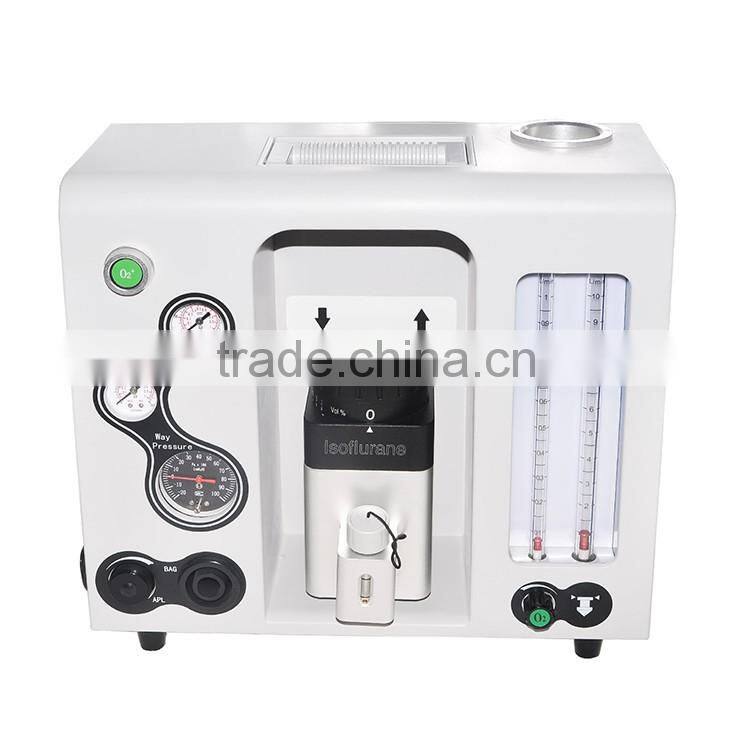

AM-600V Portable Anaesthesia Machine( circle and compact ) have full anaesthesia function, especially it is very small and portable. Inside it, there is a compact and built-in CO₂ circle absorber system.

The tidal volume is from 20ml to 1500ml, which can be used for patients of more than 3kgs. It can be used widely at moving cars, dental hospitals, clinics, etc which space is small limited.

Features:

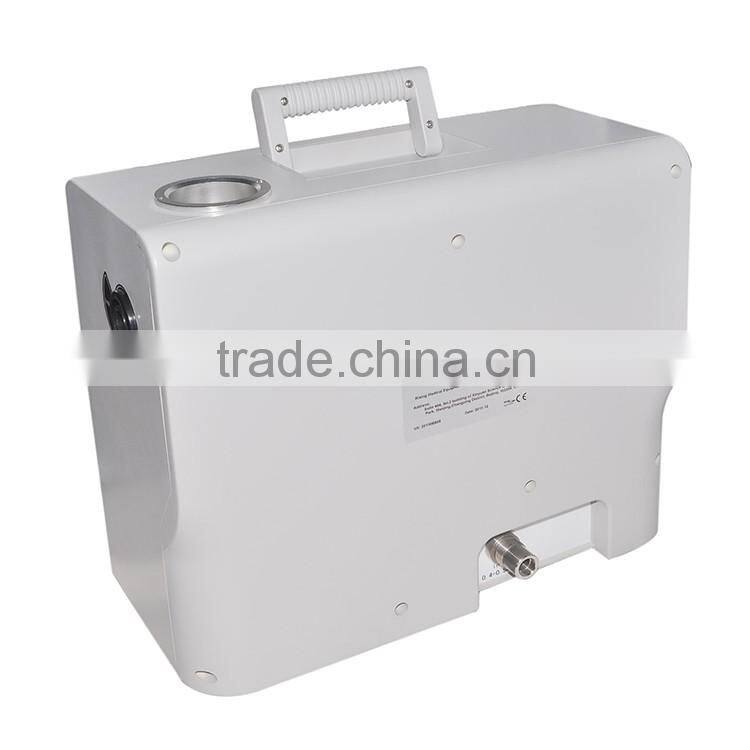

• Compact structure with small volume; Uphandle- easy carrying

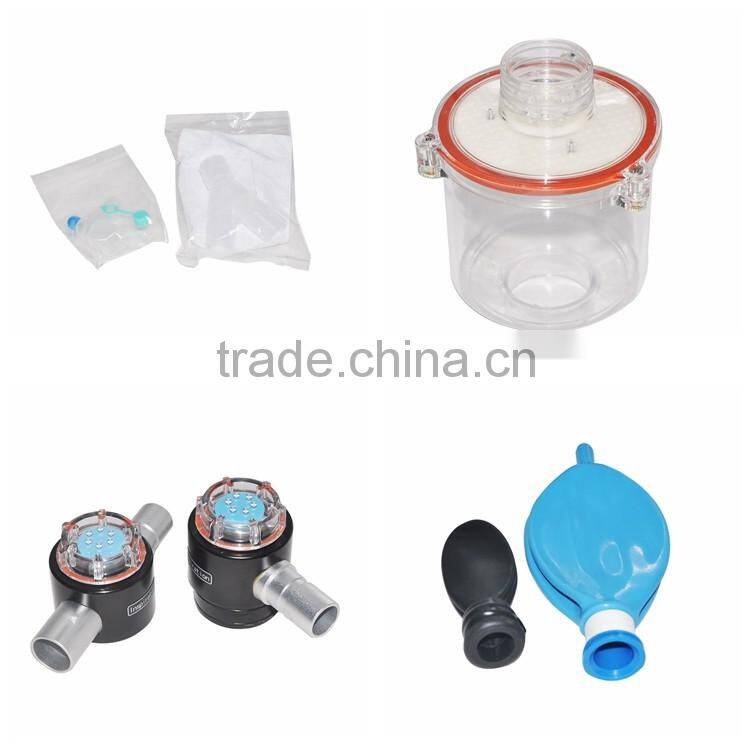

• Build-in CO₂ absorber: with observing window for monitor soda lime situation, easy to remove and replace soda lime

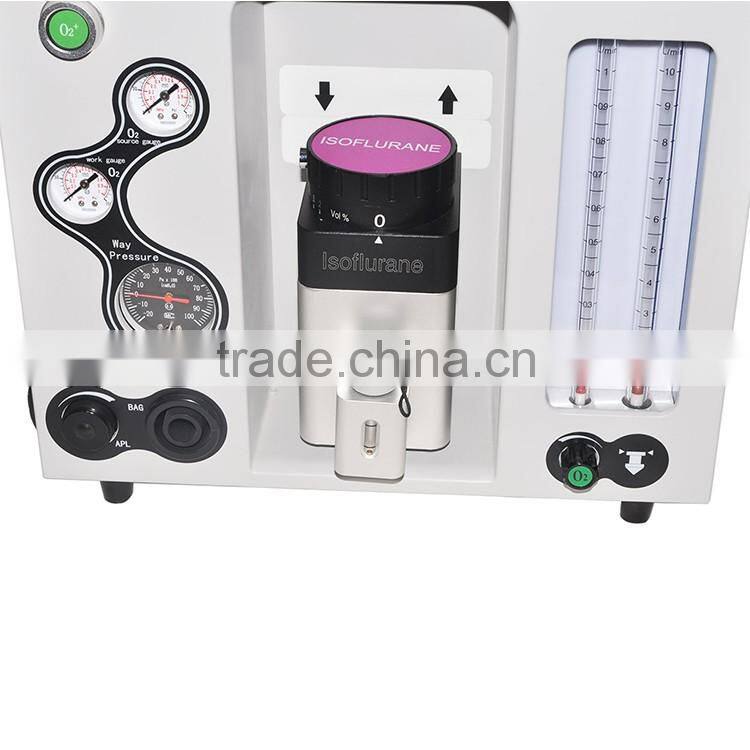

• Double O₂ and N₂O flowmeter: precise and adjust oxygen concentration in proportion ( O₂ concentration is not lower than 25%)
• There are 4 base cushions under the unit, it could be put on any level place, eg. table, trolley.

Specifications:

• Ventilation method:closed, semi-closed,semi-open
• Tidal volume( Manual Mode):20ml-1500ml
• Work pressure:0.3---0.4Mpa
• Flowmeter: O₂: 0.1---10 L/min    N₂O: 0.1---10 L/min
• APL valve:0.5---6.0Kpa
• O₂ Flush:30-60L/min
• Packing in carton, with sizes: 786 x 281 x 437 mm
• Equipping with one Crius 210 Vaporizer
• Net weight: 16.2 kgs, Gross weight: 18.2 kg
• Click the link for more products:
• http://jxkh.en.china.cn/productgrouplist-801164721/Veterinary.html

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.

4. OEM/ODM services are available.
