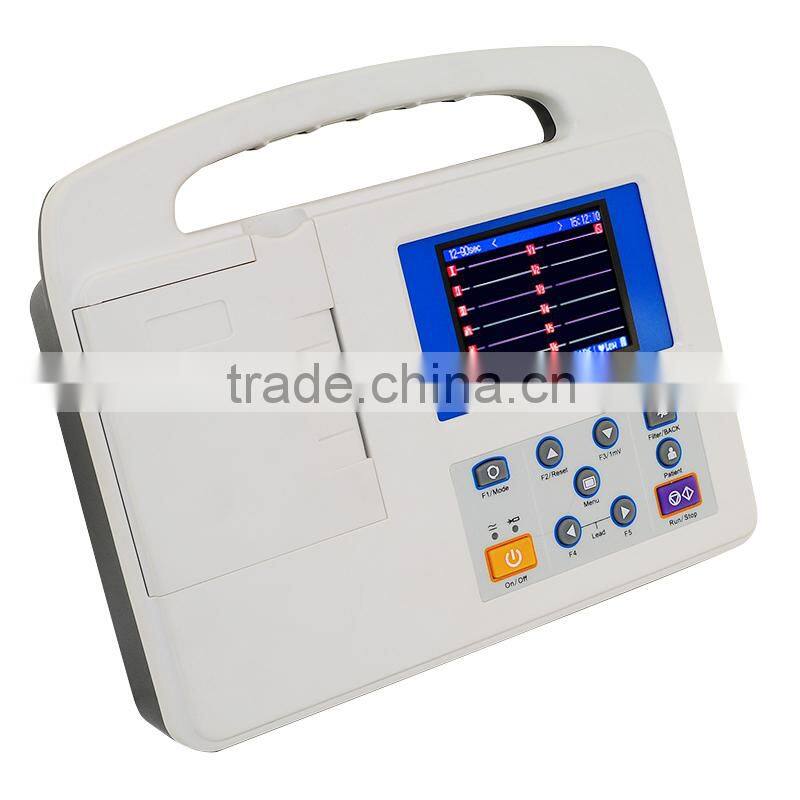

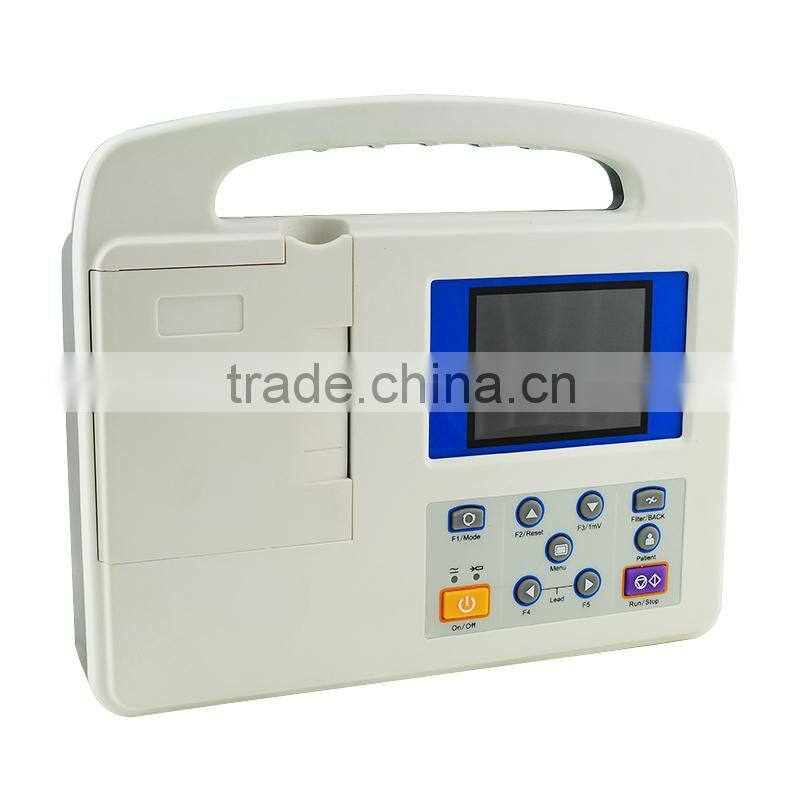

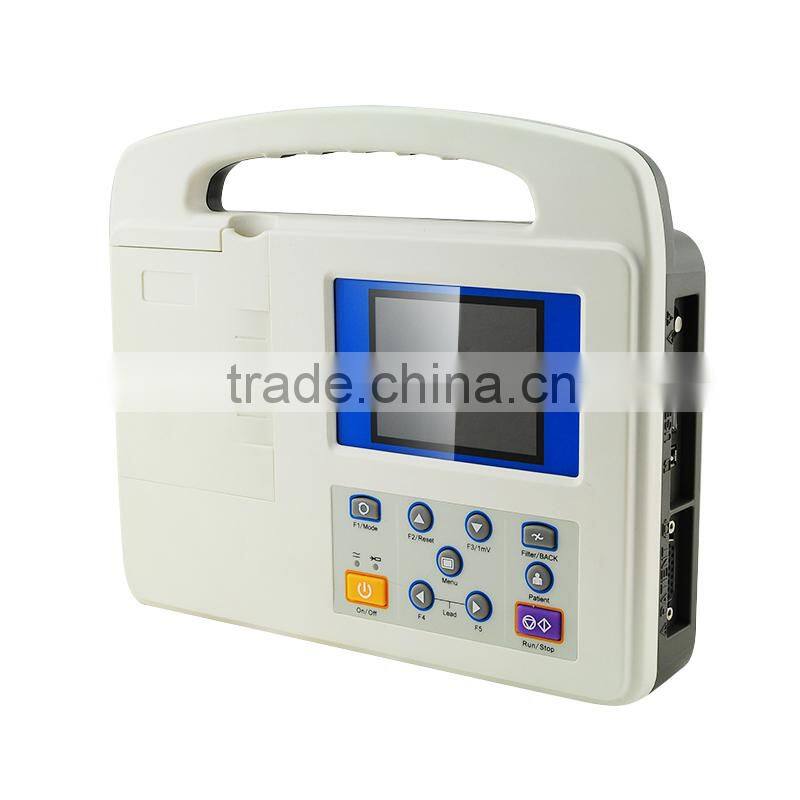

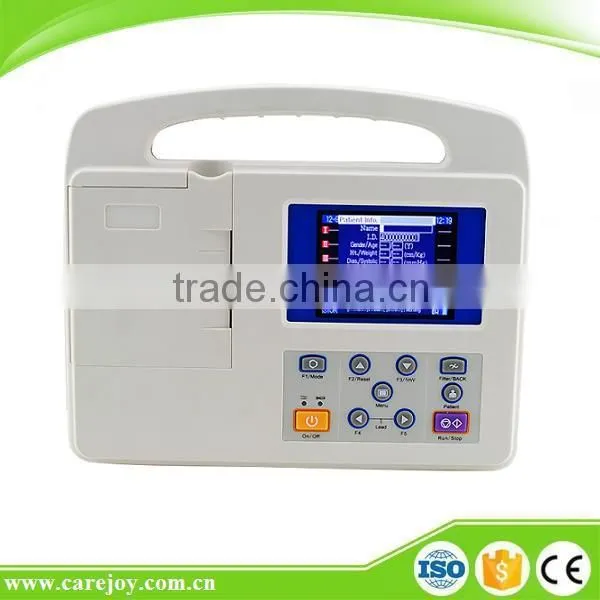

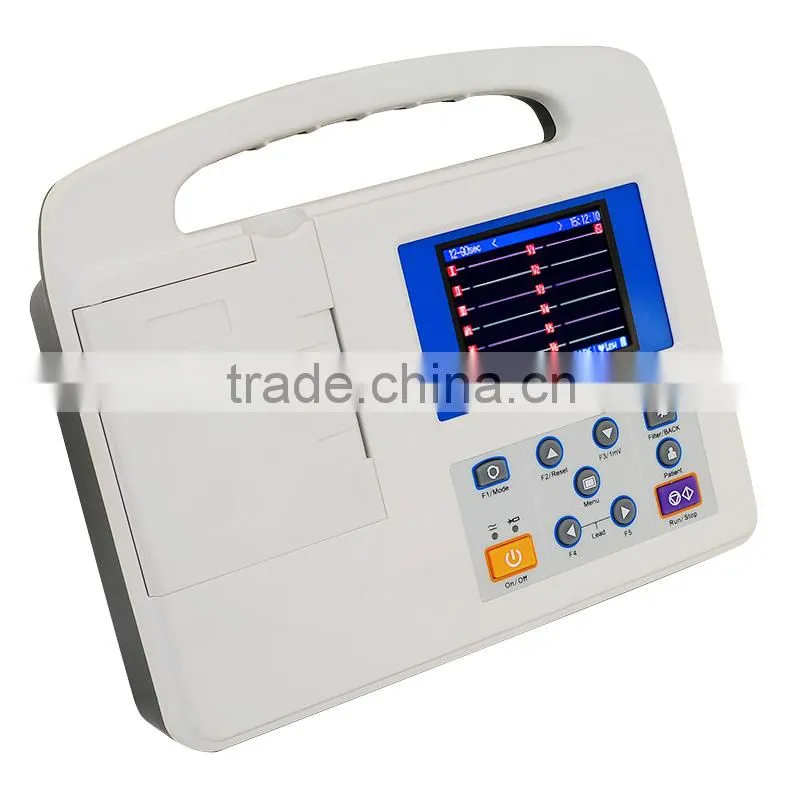

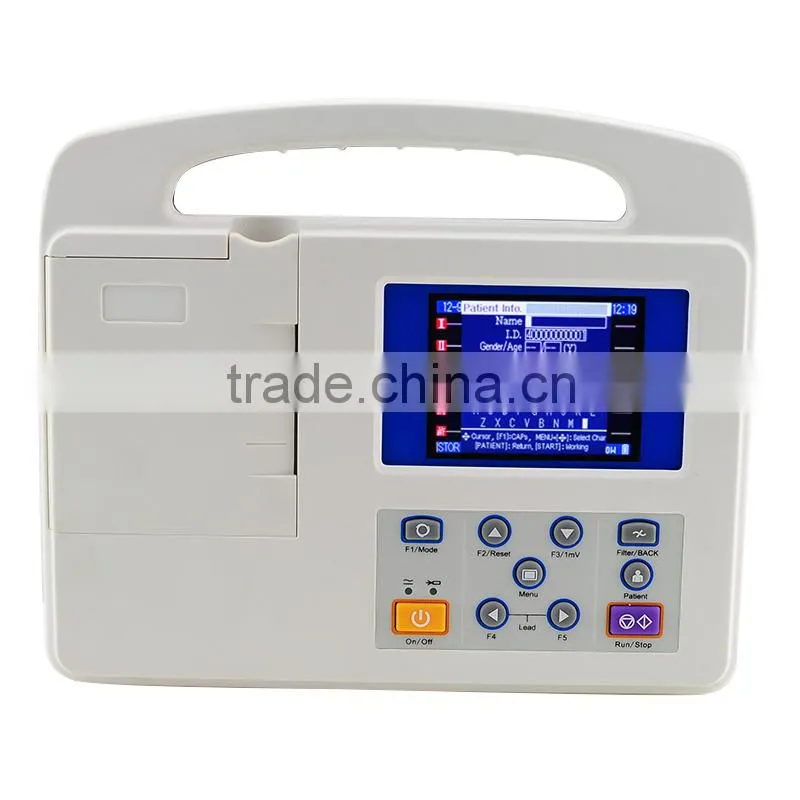

Portable Color LCD Digital 1-channel Electrocardiograph ECG Machine EKG Machine-EKG-901-Shelly
US$ 100 - 389
/ Set
1 Set(Min. Order)
- Beijing
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
3.8-inch Portable Digital 3-channel Electrocardiograph ECG Machine EKG Machine-EKG-903-Shelly
-
7-inch Color LCD Portable Digital 3-channel 12-lead Electrocardiograph ECG Machine EKG Machine-EKG-903A3-Shelly
-
Portable Digital 6-channel Electrocardiograph ECG Machine EKG Machine-EKG-1206-Shelly
-
Digital 1-channel Handheld VET/Veterinary Electrocardiograph ECG Machine EKG Machine With Software EKG-80A-Shelly
-
ECG Machine CE ISO Approved 12 Channel Portable 10 Inch Touch Screen Digital Electrocardiograph EKG 12 Lead
-
Brand New Digital 1 Channel Handheld Electrocardiograph ECG Machine EKG Machine With CE and ISO
Product Details
| Type | Blood Testing Equipments | Brand Name | OEM | |
| Place of Origin | Beijing, China | Model Number | EKG-901 |
Product Description
Portable Color LCD Digital 1-channel Electrocardiograph ECG Machine EKG Machine-EKG-901
Product Description
Features:
- One channel digital ECG machine with interpretation.
- Simultaneous acquisition of 12-lead ECG signal.

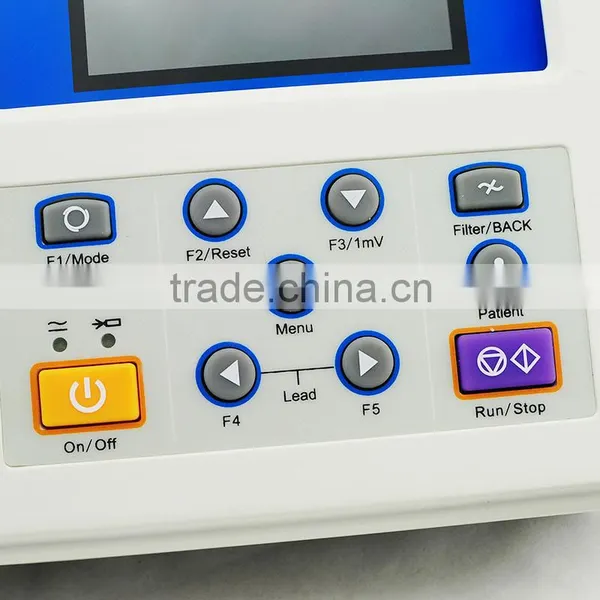

- Manual/Auto/Arrhythmia analysis modes.
- Real time ECG, 20 patients cases.
- Multiple printing modes.

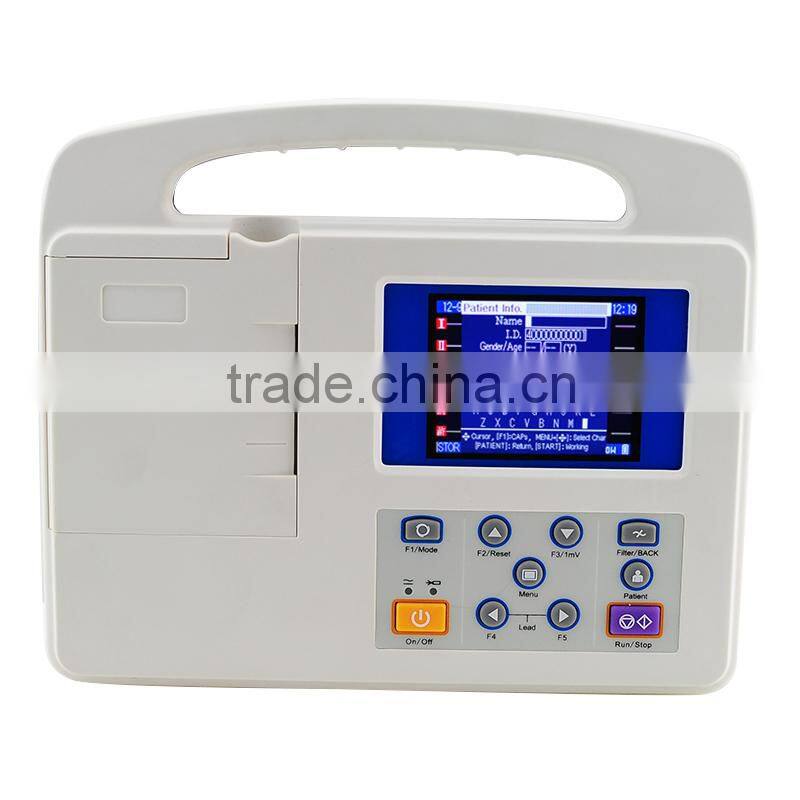

- 320x240 graphic, 3.8 inch LCD.

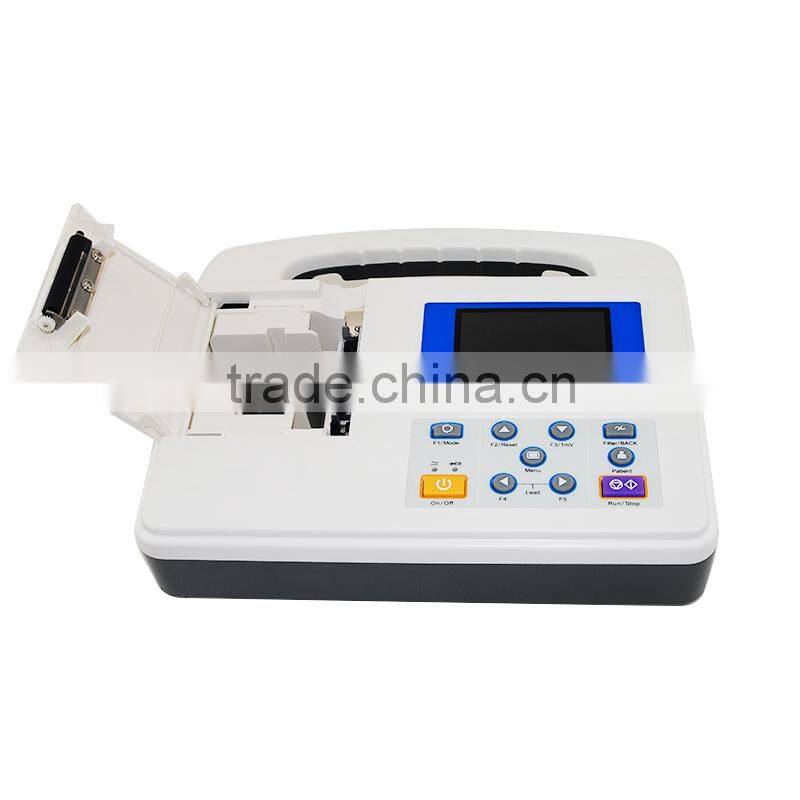

- High resolution thermal printing system.
- High resolution digital filter.

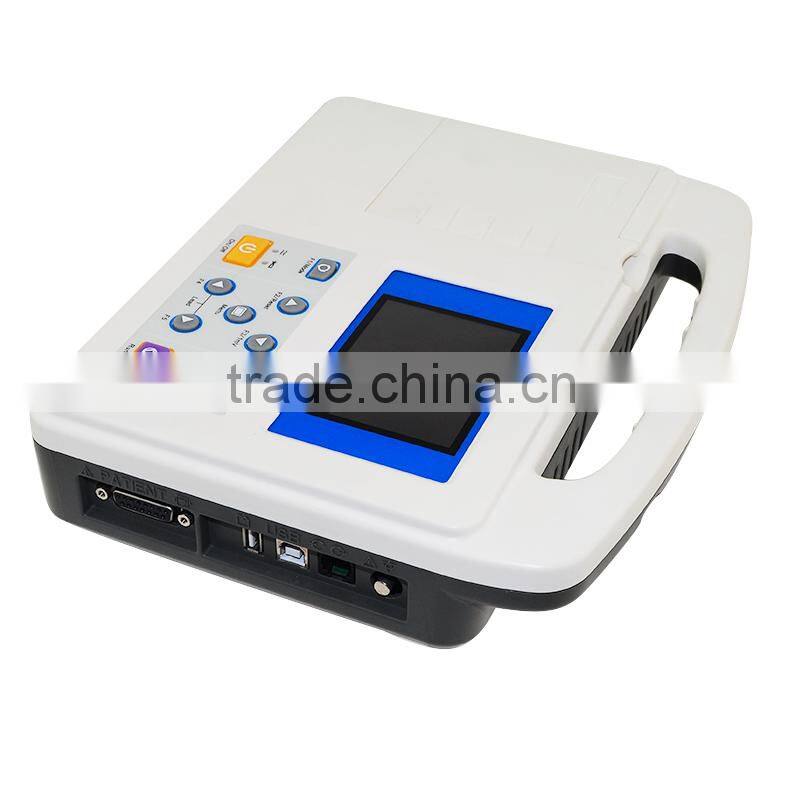

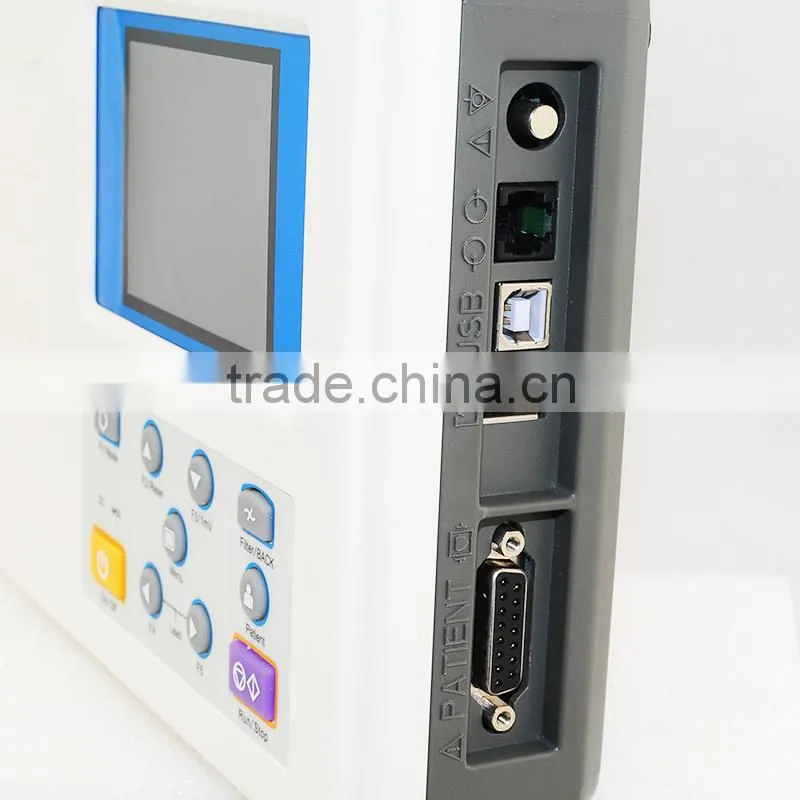

- Built-in USB or RS232, optional PC-ECG software.
- AC/DC power, built-in rechargeable Ni-MH battery.
- Light weight with handle, convenient for use.
Specification:
| Model number | EKG-901 |
| Safety standard | IEC60601-1 class I, type CF |

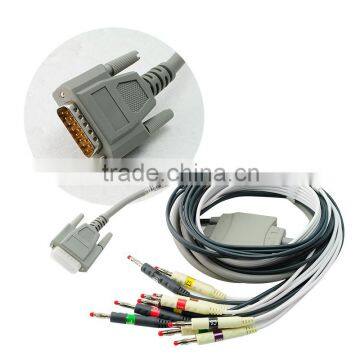

| Lead | Standard 12 Leads, Lead change automatically |
| Resolution | 12 bit / 1000Hz |
| Operation mode | Manual/Auto/Analysis modes |
| Filter | AC, EMG filter |
| Drift filter | Anti-drift system |
| Input circuit | Floating; Protection against Defibrillator effect |
| CMRR | >100dB (with filter) |
| Input circuit current | <0.1μA |
| Input impedance | ≥50ΜΩ |
| Calibrating voltage | 1mV±3% |
| Frequency response | 0.05Hz~160Hz (IEC) |
| Time constant | >3.2seconds |
| Noise level | ≤15Vp-p |
| Threshold | ≤20μV |
| Sensitivity | Auto 2.5, 5, 10, 20, 40mm/mV |
| Recording system | High resolution thermal printer |
| Paper speed | 25, 50mm/s±3% |
| Recording paper | 50mmx20m, roll/fold paper |
| Power supply | AC: 220V / 110V, 50/60Hz |
| DC: 14.4V rechargeable NI-Ion battery (1500mAh) | |
| LCD display | 320x240 graphic, 3.8 inch LCD |
| Dimensions | 285×265×72mm |
| Weight | 2.5kg |
Contact Us:
Martin
Beijing CareJoy Technology Co., Ltd.
Our website:
Tel: 0086-010-82125963
Skype: martin101901
Email : martin.she(@)
Phone/Whatsapp: 0086 17701221019
Hot Sale
Click the picture for detalied information:
Company Information
Our Services
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
