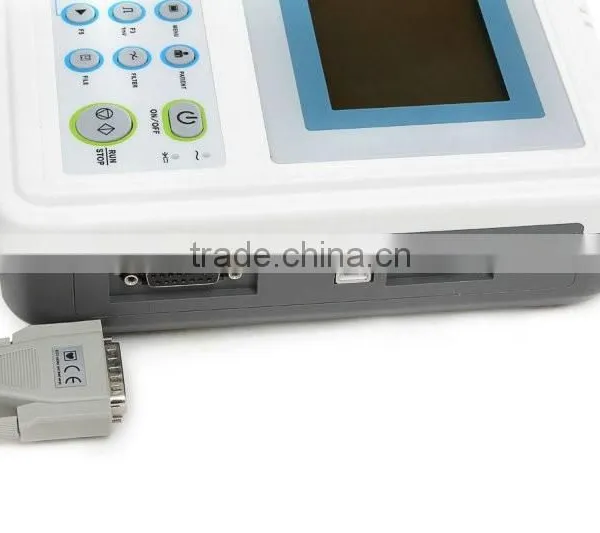

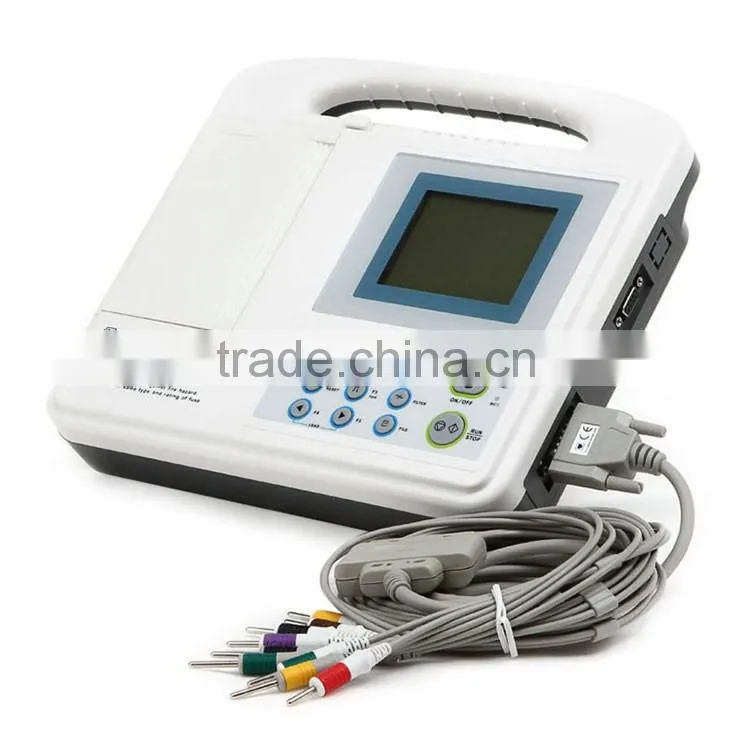

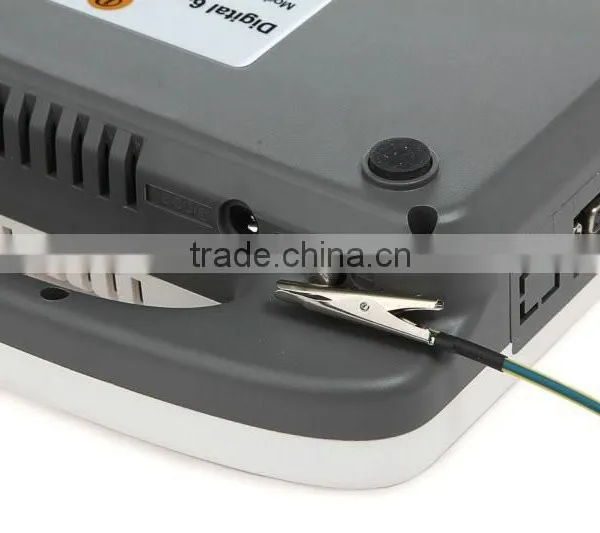

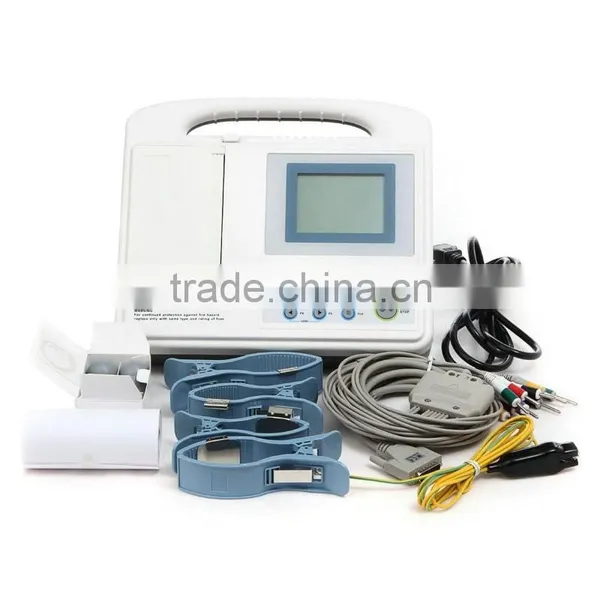

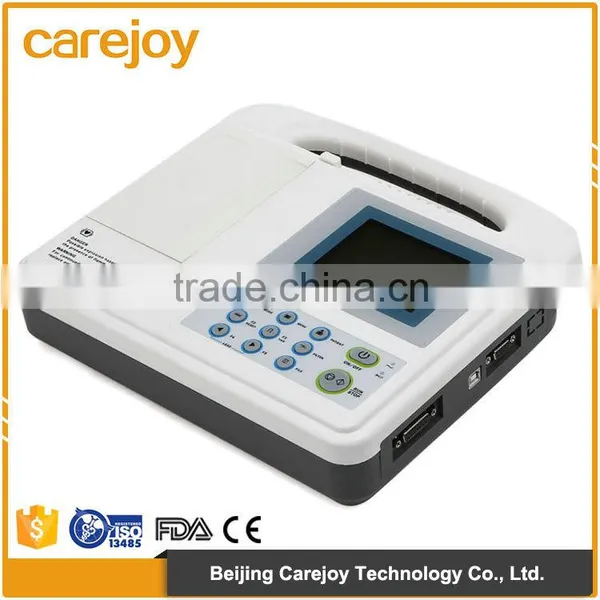

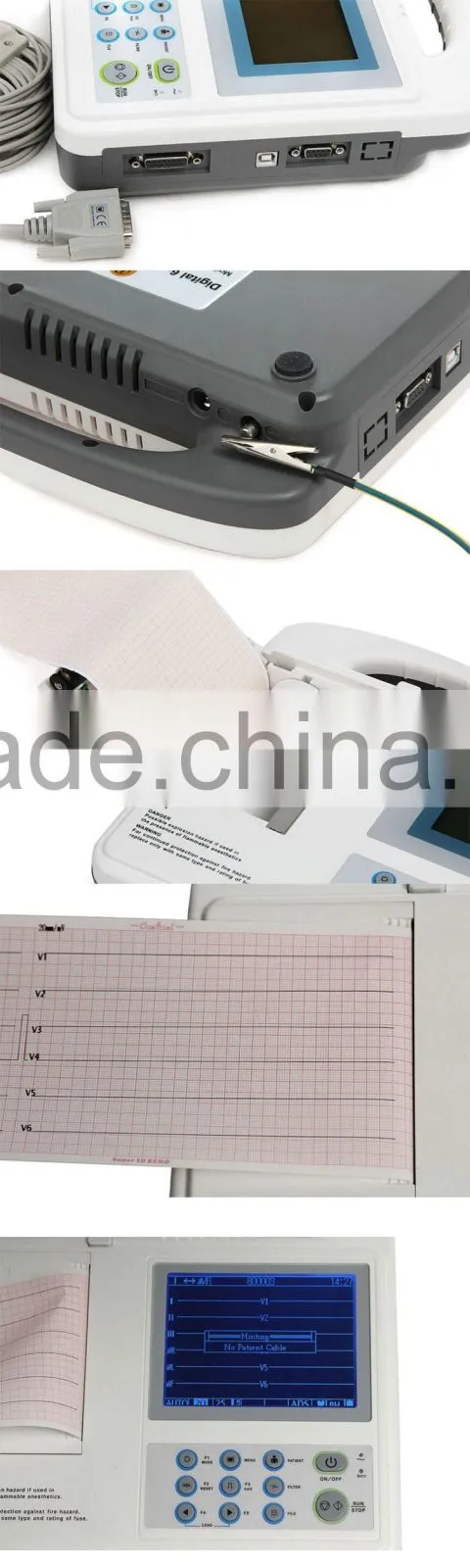

Portable Digital 6-channel Electrocardiograph ECG Machine EKG Machine
Features:
- Six channel digital ECG machine with interpretation.
- Simultaneous acquisition of 12-lead ECG signal.
- Manual/Auto/Arrhythmia analysis modes.
- Real time ECG, 20 patients cases.
- Multiple printing modes.
- 112mm 3/6-ch format recording.
- 320x240 graphic, 3.8 inch LCD.
- High resolution thermal printing system.
- High resolution digital filter.
- Built-in USB or RS232, optional PC-ECG software.
- AC/DC power, built-in rechargeable Ni-MH battery.
- Light weight with handle, convenient for use.
Specification:
Safety standard |
IEC60601-1 class I, type CF |
Lead |
Standard 12 Leads, Lead change automatically |
Resolution |
12 bit / 1000Hz |
Operation mode |
Manual/Auto/Analysis modes |
Filter |
AC, EMG filter |
Drift filter |
Anti-drift system |
Input circuit |
Floating; Protection against Defibrillator effect |
CMRR |
>100dB (with filter) |
Input circuit current |
<0.1μA
|
Input impedance |
≥50ΜΩ |
Calibrating voltage |
1mV±3%
|
Frequency response |
0.05Hz~160Hz (IEC)
|
Time constant |
>3.2seconds |
Noise level |
≤15Vp-p |
Threshold |
≤20μV |
Sensitivity |
Auto 2.5, 5, 10, 20, 40mm/mV |
Recording system |
High resolution thermal printer
|
Paper speed |
25, 50mm/s±3% |

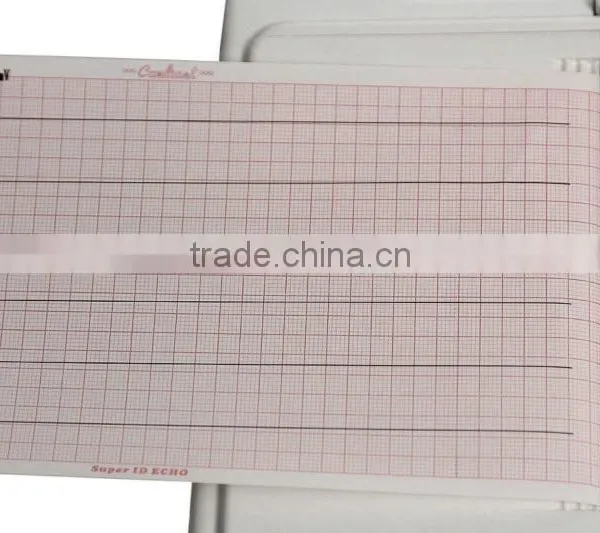

Recording paper |
112mmx20m, roll/fold paper
|
Power supply |
AC: 220V / 110V, 50/60Hz |
LCD display |
320x240 graphic, 3.8 inch LCD |
Dimensions |
285×265×72mm |
Weight |
2.5kg |
Click the link for more styles:
https://img13.fr-trading.com/productgrouplist-801123345/ECG.html
Martin
Beijing CareJoy Technology Co., Ltd.
Our website:
Tel: 0086-010-82125963
Skype: martin101901
Email : martin.she(@)
Phone/Whatsapp: 0086 17701221019
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
