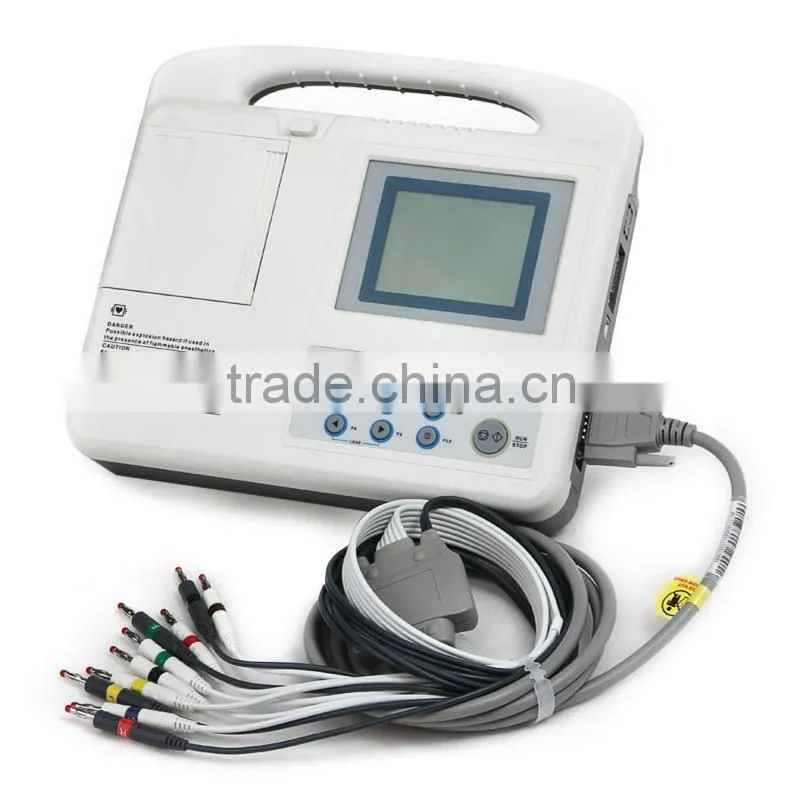

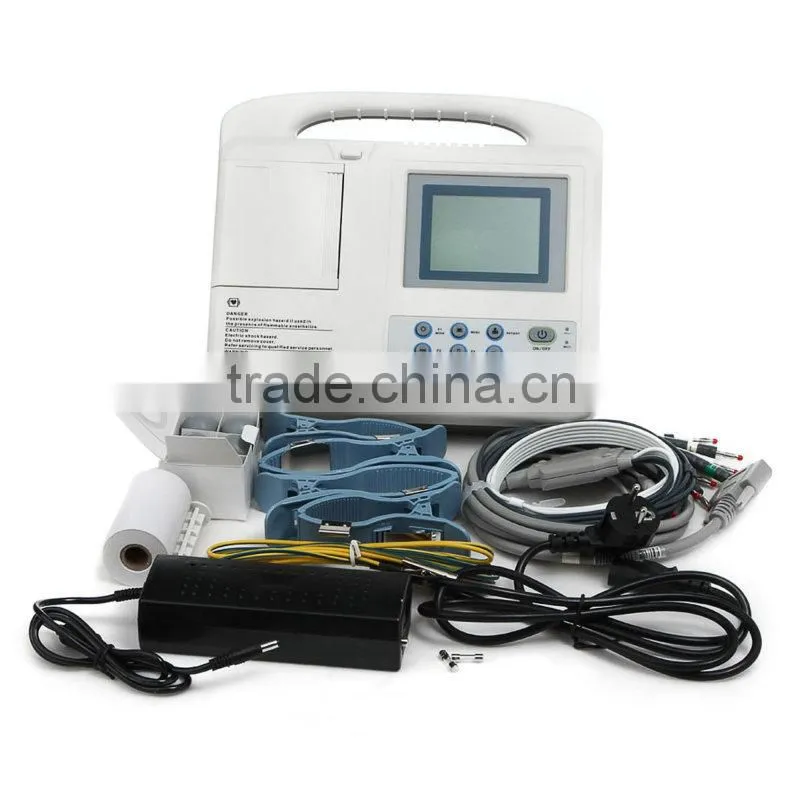

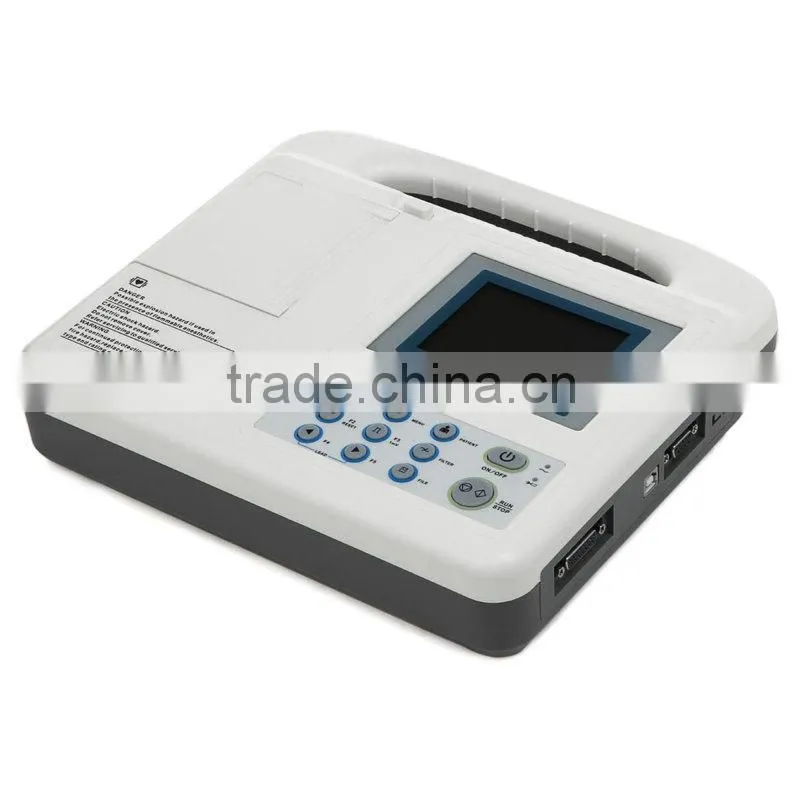

3.8-inch Portable Digital 3-channel Electrocardiograph ECG Machine EKG Machine-EKG-903
Features:
- Three channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes
- Real time ECG, 20 patients cases
- Multiple printing modes

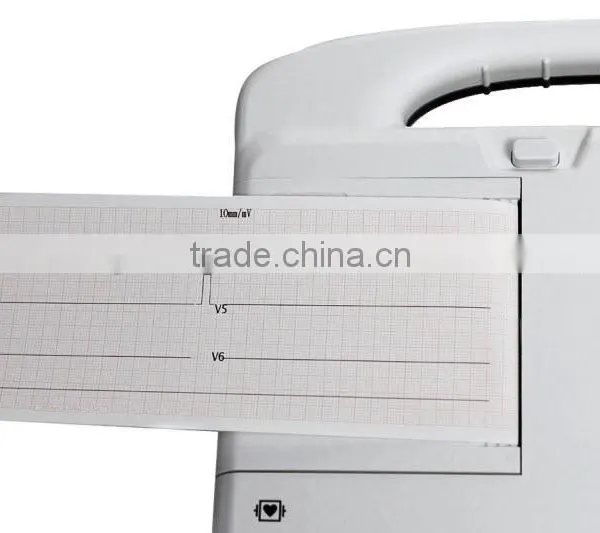

- 80mm 3-ch recording with rhythm lead

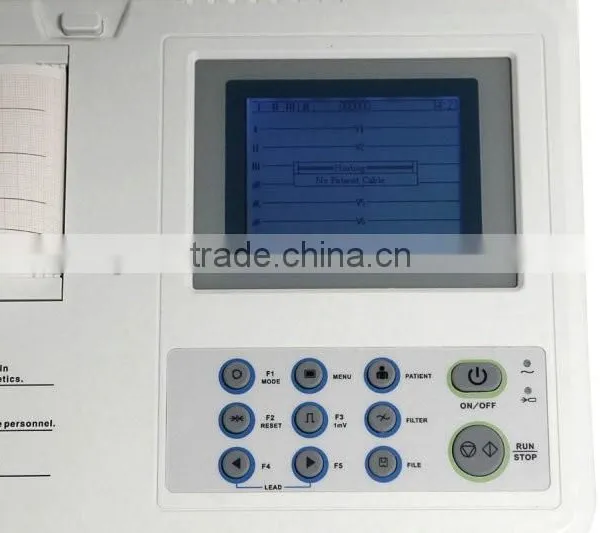

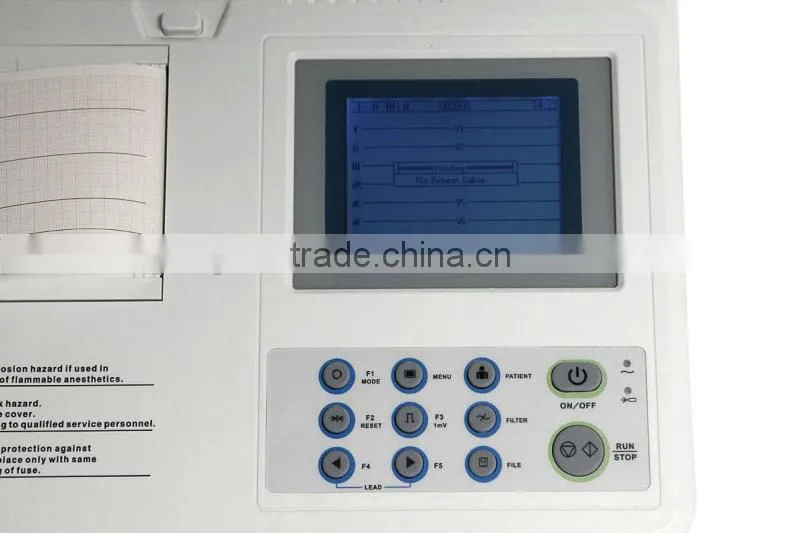

- 320x240 graphic, 3.8 inch LCD

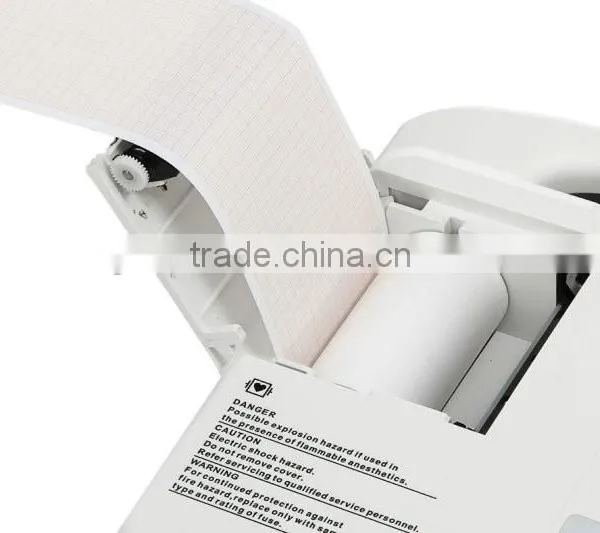

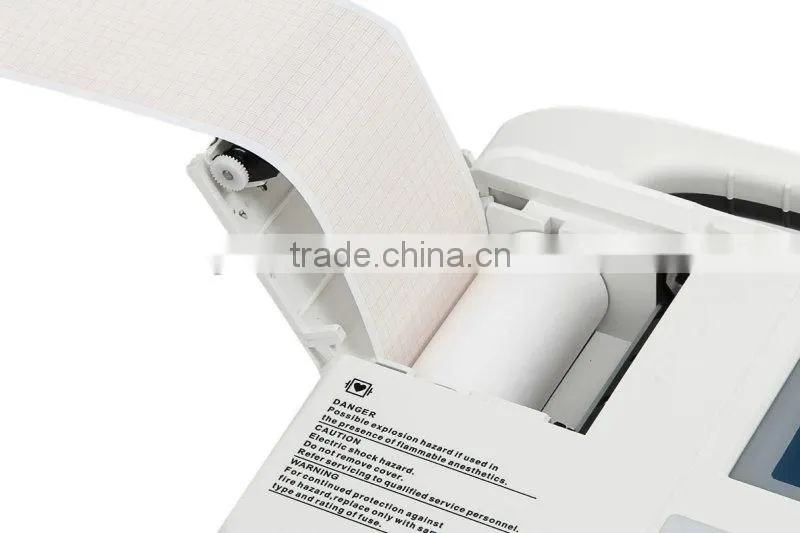

- High resolution thermal printing system
- High resolution digital filter

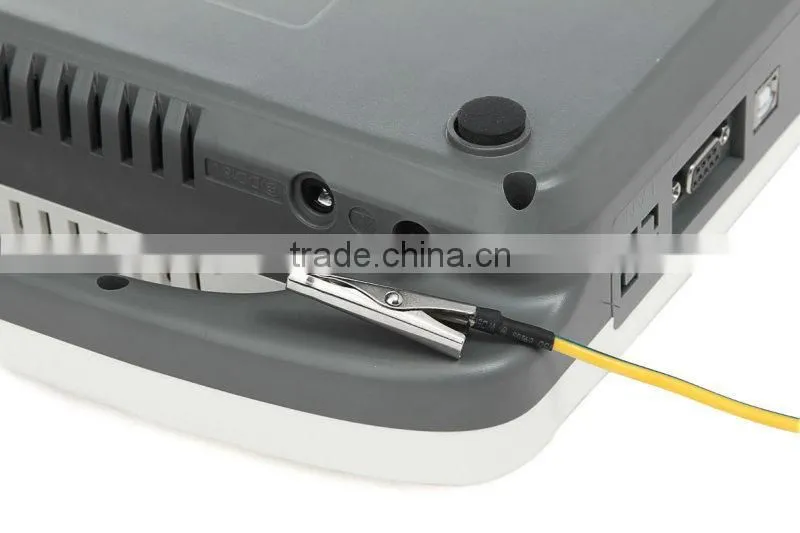

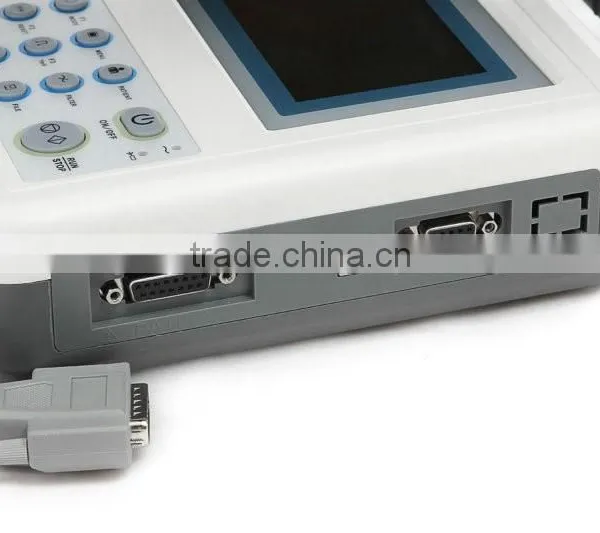

- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery

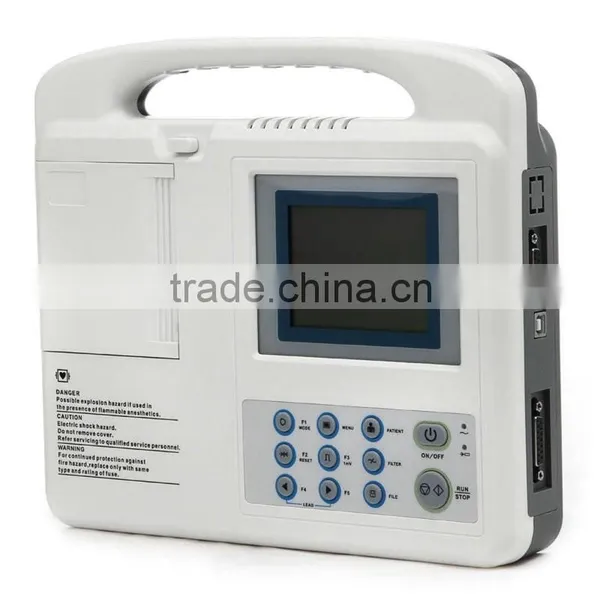

- Light weight with handle, convenient for use
Specification:
|
Safety standard
|
IEC60601-1 class I, type CF
|
|
Lead
|
Standard 12 Leads, Lead change automatically
|
|
Resolution
|
12 bit / 1000Hz
|
|
Operation mode
|
Manual/Auto/Analysis modes
|
|
Filter
|
AC, EMG filter
|
|
Drift filter
|
Anti-drift system
|
|
Input circuit
|
Floating; Protection against Defibrillator effect
|
|
CMRR
|
>100dB (with filter)
|
|
Input circuit current
|
<0.1μA
|
|
Input impedance
|
≥50ΜΩ
|
|
Calibrating voltage
|
1mV±3%
|
|
Frequency response
|
0.05Hz~160Hz (IEC)
|
|
Time constant
|
>3.2seconds
|
|
Noise level
|
≤15Vp-p
|
|
Threshold
|
≤20μV
|
|
Sensitivity
|
Auto 2.5, 5, 10, 20, 40mm/mV
|
|
Recording system
|
High resolution thermal printer
|
|
Paper speed
|
25, 50mm/s±3%
|
|
Recording paper
|
80mmx20m, roll/fold paper
|
|
Power supply
|
AC: 220V / 110V, 50/60Hz
|
|
LCD display
|
320x240 graphic, 3.8 inch LCD
|
|
Dimensions
|
285×265×72mm
|
|
Weight
|
2.5kg
|
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the laser equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
